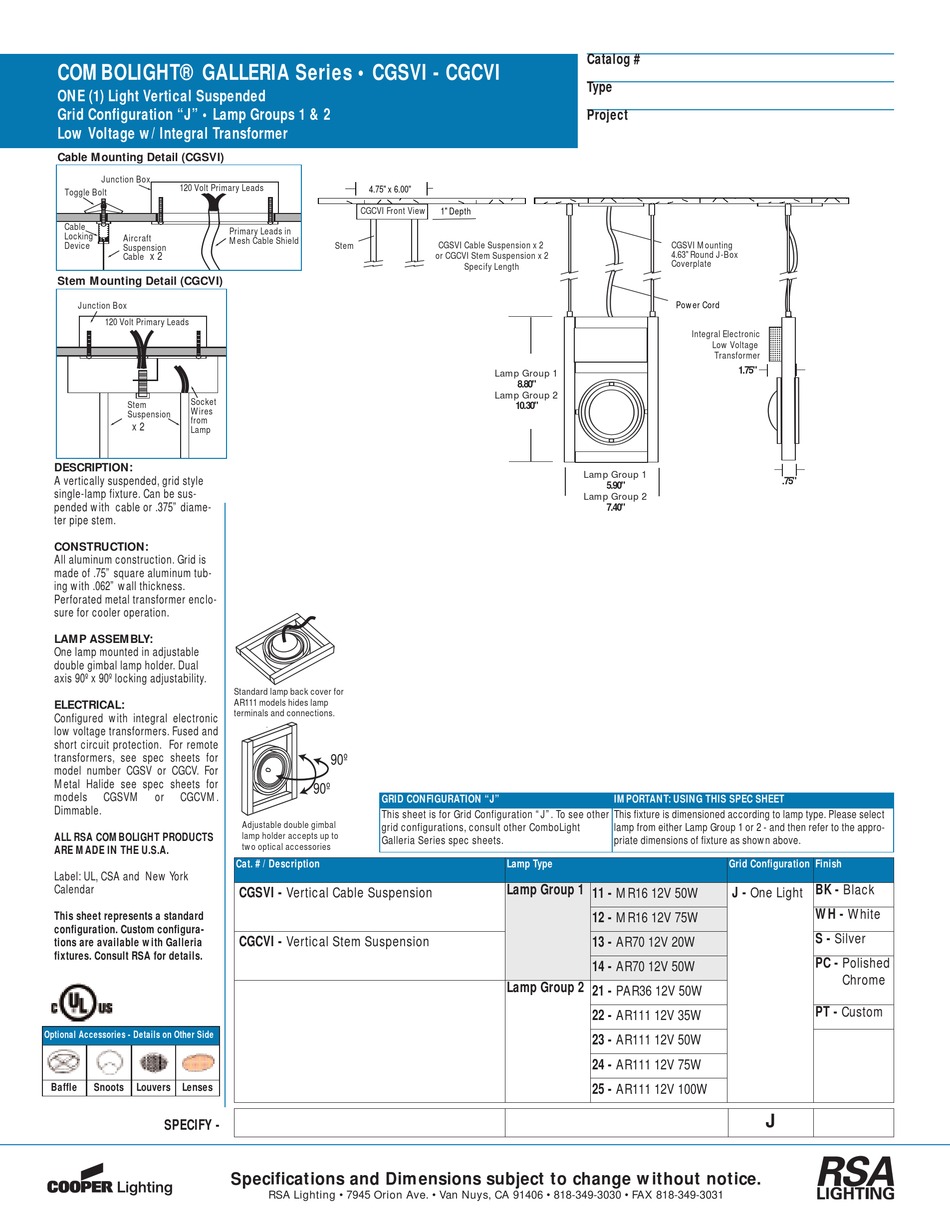

RSA Lighting Combolight Galleria Series CGSVI - CGCVI Specifications

COMBOLIGHT® GALLERIA Series • CGSVI - CGCVI
ONE (1) Light Vertical Suspended
Grid Configuration "J" • Lamp Groups 1 & 2
Low Voltage w/ Integral Transformer
Cable Mounting Detail (CGSVI)
Junction Box
120 Volt Primary Leads
Toggle Bolt
Cable
Locking
Aircraft
Device
Suspension
x 2
Cable
Stem Mounting Detail (CGCVI)
Junction Box
120 Volt Primary Leads
Socket
Stem
Wires
Suspension
from
x 2
Lamp

DESCRIPTION:

A vertically suspended, grid style
single-lamp fixture. Can be sus-
pended with cable or .375" diame-
ter pipe stem.

CONSTRUCTION:

All aluminum construction. Grid is
made of .75" square aluminum tub-
ing with .062" wall thickness.
Perforated metal transformer enclo-
sure for cooler operation.

LAMP ASSEMBLY:

One lamp mounted in adjustable
double gimbal lamp holder. Dual
axis 90º x 90º locking adjustability.

ELECTRICAL:

Configured with integral electronic
low voltage transformers. Fused and
short circuit protection. For remote
transformers, see spec sheets for
model number CGSV or CGCV. For
Metal Halide see spec sheets for
models CGSVM or CGCVM.
Dimmable.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Label: UL, CSA and New York
Calendar
This sheet represents a standard
configuration. Custom configura-
tions are available with Galleria
fixtures. Consult RSA for details.
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
SPECIFY -
4.75" x 6.00"
CGCVI Front View
Primary Leads in
Mesh Cable Shield
Stem
Junction Box
Toggle Bolt
Cable
Locking
Aircraft
Device
Suspension
Cable
Standard lamp back cover for
AR111 models hides lamp
terminals and connections.
90º
90º
GRID CONFIGURATION "J"
This sheet is for Grid Configuration "J". To see other
Adjustable double gimbal
grid configurations, consult other ComboLight
lamp holder accepts up to
Galleria Series spec sheets.
two optical accessories

Cat. # / Description

CGSVI - Vertical Cable Suspension
CGCVI - Vertical Stem Suspension
___
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
1" Depth
CGSVI Cable Suspension x 2
or CGCVI Stem Suspension x 2
Specify Length
120 Volt Primary Leads
Primary Leads in
Lamp Group 1
Mesh Cable Shield
8.80"
Lamp Group 2
10.30"
Lamp Group 1
Lamp Group 2
Lamp Type
Lamp Group 1 11 - MR16 12V 50W
12 - MR16 12V 75W
13 - AR70 12V 20W
14 - AR70 12V 50W
Lamp Group 2 21 - PAR36 12V 50W
22 - AR111 12V 35W
23 - AR111 12V 50W
24 - AR111 12V 75W
25 - AR111 12V 100W
___
CGSVI Mounting
4.63" Round J-Box
Coverplate
Power Cord
Integral Electronic
Low Voltage
Transformer
1.75"
.75"
5.90"
7.40"
IMPORTANT: USING THIS SPEC SHEET
This fixture is dimensioned according to lamp type. Please select
lamp from either Lamp Group 1 or 2 - and then refer to the appro-
priate dimensions of fixture as shown above.
Grid Configuration Finish
J - One Light BK - Black
J
WH - White
S - Silver
PC - Polished
Chrome
PT - Custom
