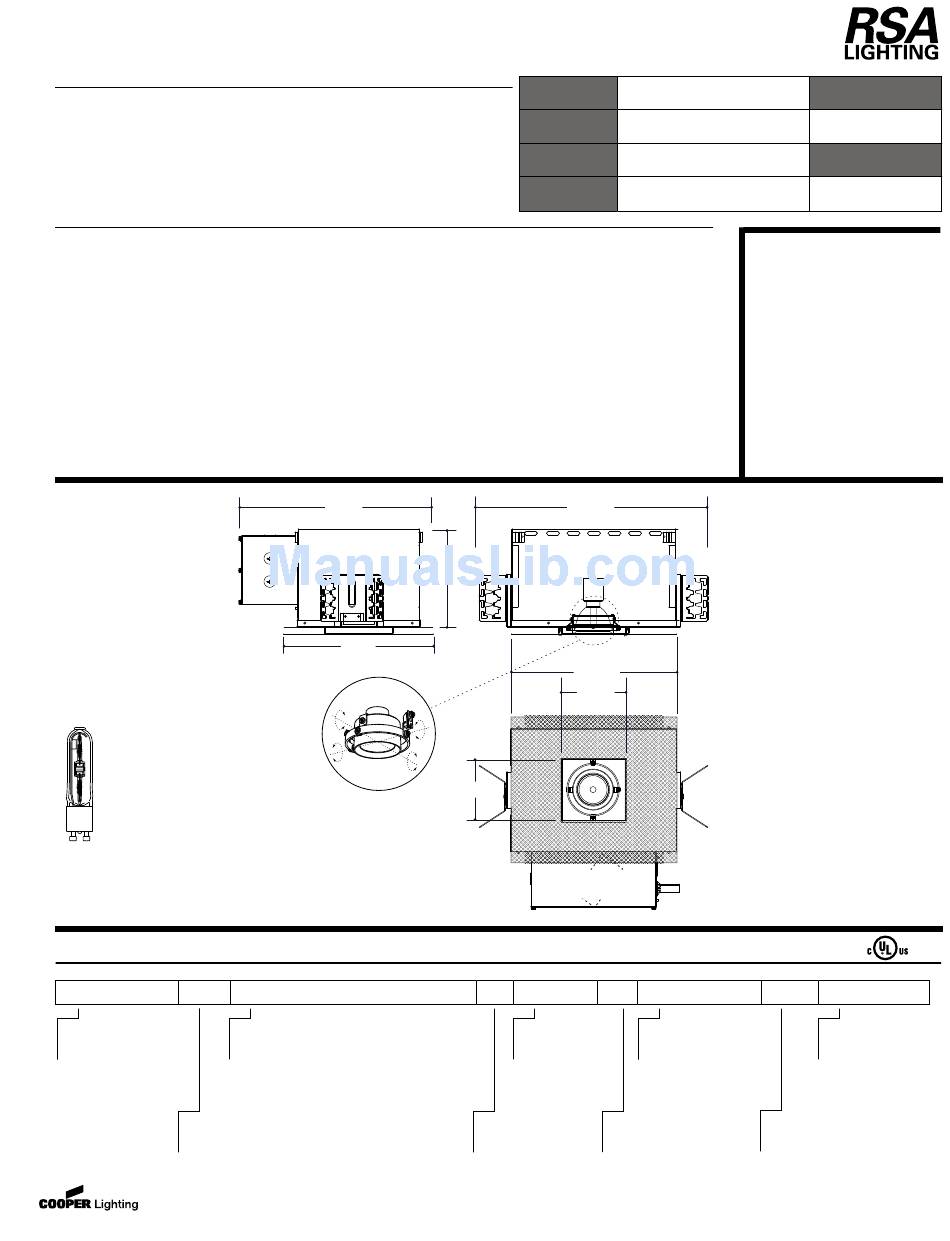

RSA Lighting COMBOLIGHT T4 GU6.5 Specifications

DESCRIPTION
An adjustable Single-lamp Recessed fixture for trimless installation suitable for
downlighting and accent applications. Utilizes ONE (1) T4 GU6.5 Metal Halide
(GE® Constant Color Super Mini) lamp.
For new construction applications. Insulation must be kept 3" from all sides
and at least 1" above the housing.
SPECIFICATION FEATURES
A ... Housing
Housing, junction box & trimless
meshplate assembly are all steel
construction. Perforated meshplate allows
for trimless installation in drywall/plaster
ceilings by allowing the ceiling's mudding
compound to be applied right up to the
edge of the fixture opening. Includes
a beveled "knife-edge" lips to ensure a
clean edge. Can accommodate 0.50" to
1.25" ceiling thickness. Optional Chicago
Plenum configuration available.
B ... System Protection:
Thermal protection provided to guard
against overheating and misuse of
insulation over and around fixture. Vent
holes in housing provide cooler operation.
C ... Junction Box
Junction Box is UL listed for through
T4 GU6.5 Lamp with Reflectors
This fixture utilizes the GE® SuperMini Constant Color
Lamp and includes high-performance clear aluminum reflec-
tors in narrow, medium, or wide distributions. Non-standard
color reflectors are available upon request.
ORDERING INFORMATION
C1
Configuration
C1
= COMBOLIGHT Recessed
One (1) Light
Housing
N New Construction
=
C
= Chicago Plenum
www.cooperlighting.com
branch wiring, 6 #12 90º C supply
conductors or 60º C for end of run. The
fixture is also UL listed as 'access above
ceiling not required'.
D ... Electrical
Electrical accessible through ceiling
opening. J-Box located on the side wall
of the housing behind removable access
doors. Integral electronic metal halide
ballasts on individually removable "trays"
for easy maintenance. May also be con-
figured for remote power.
E ... Lamps
One (1) T4 GU6.5 Metal Halide lamp with
reflector mounted in adjustable double
gimbal. Lamp holder is individually remov-
able and may be regressed 1" for additional
cut-off. Lamp can accept up to three opti-
cal accessories (i.e. lens + hex louver +
15.01"
10.96"
Double
Gimbal
45º x 45º
Adjust
Lamp Type / Wattage Label / Reflector Type
020MCN = 20 Watt T4 GU6.5 SuperMini Narrow
020MCM 20 Watt T4 GU6.5 SuperMini Medium
=
020MCW = 20 Watt T4 GU6.5 SuperMini Wide
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Project
Comments
Prepared by
snoot). 45º x 45º locking lamp adjustment.
Beveled-edge lamp ring is secured with
threadless, bayonet action. Optional
retractable arm is available for lamp pull-
down and extreme aiming. Includes GU6.5
TAL socket.
F ... Mounting
Butterfly Brackets accept 1/2" EMT,
C Channel, Tbar fasteners, and bar
hangers. Four tabs on housing for
securing to structure. Perforated flaps
along housing sides for securing trimless
insert to fixture and drywall.
G ... Labels
cULus listed for non-type IC
applications, suitable for use in damp
locations.
Ceiling Cut-Out: 5.44" x 5.44"
16.14"
7.45"
12.01"
4.65"
4.65"
Integral Electronic
Metal Halide Ballast
E N
Power Supply
Voltage
1 120V
=
2 = 277V
Power Supply
Trim Insert
E Electronic Metal Halide
= N =
Ballast
COMBOLIGHT
Single-Lamp Fixture
T4 GU6.5 Metal Halide
Perforated
Meshplate
Thermal
Protector
Lamp Mechanism
G Double Gimbal
=
R
= Retractable Double Gimbal
Housing Interior/Electrical Door
Trimless /Sleeve Finish
W
= White
B Black
=
S = Industrial Silver
Type
Date
®
Next Generation
Recessed
One (1) Light
New Construction
Housing
Trimless
Trim Finish
W
= White
B Black
=
S
= Industrial Silver
rev 022408
