Summary of Contents for Logik LFC55S11

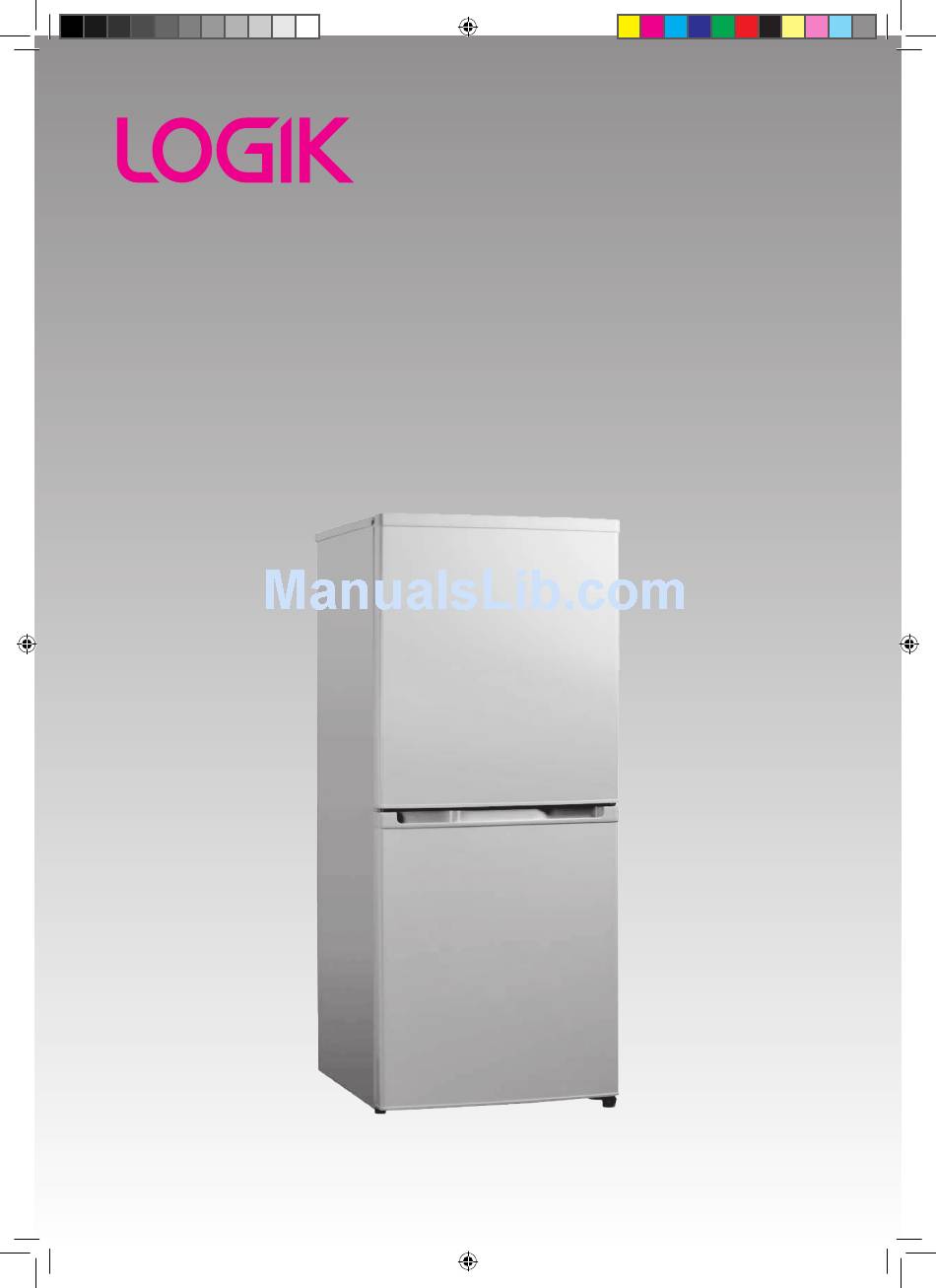

- Page 1 Fridge Freezer Instruction Manual LFC55S11 LFC55S11_IB_final110413_running change.indd 1 14/04/2011 10:40 AM...
- Page 2 LFC55S11_IB_final110413_running change.indd 2 14/04/2011 10:40 AM...
-
Page 3: Table Of Contents
Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................8 Cleaning Before Use .............................. 8 Before Using Your Unit ............................8 Product Overview ........................9 Operation ........................... 10 Switching On Your Unit ............................10 Knowing Your Freezer Compartment......................10 Adjusting the Temperature ..........................10 Noises Inside the Unit ............................11... -
Page 4: Unpacking
Thank you for purchasing your new Logik Fridge Freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference. -
Page 5: Installation
INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption. - Page 6 INSTALLATION 2. Undo the screws. Then remove the hinge bracket. Unscrew Remove 3. Remove the top left screw cover and position on the opposite side. 4. Remove the fridge door. 5. Take off the middle hinge by removing the screws. Unscrew 6.
- Page 7 INSTALLATION 8. Tilt the unit carefully. 2 people are required to tilt the unit during the door reversing process. 9. Remove the screws and bottom hinge. Then remove the adjustable feet from both side and reattach them to the opposite side. Unscrew Screw View from underside...
-
Page 8: Levelling The Unit
INSTALLATION Levelling the Unit To do this use the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’... -
Page 9: Product Overview
Product Overview Fridge Door Thermostat and Bulb Fridge Glass Fridge Door Shelves Shelves Salad Bin Upper Freezer Glass Shelf Freezer Drawers Freezer Door Large Freezer Lower Freezer Drawer Glass Shelf Adjustable Feet Egg Tray LFC55S11_IB_final110413_running change.indd 9 14/04/2011 10:41 AM... -
Page 10: Operation
Operation Switching On Your Unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which position 6 is the coldest and position OFF turns the unit off. 2. -
Page 11: Noises Inside The Unit
Noises Inside the Unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases. -
Page 12: Preparations For Freezing
Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. •... -
Page 13: Cleaning
Cleaning Defrosting The freezer compartment of this unit is frost-free. With proper use, there should not be any frost accumulated. However, in case of improper use of the freezer compartment, frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper. -
Page 14: Maintenance
Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position OFF, then disconnect the mains supply. 2. Use a flat bladed screwdriver and gently prise off the light bulb cover. 3. -
Page 15: Specification
Specification Model LFC55S11 Overall Dimension (W x D x H) 550 x 595 x 1405mm Total Gross Volume 184L Fresh Food Storage Compartment 122L Volume Frozen Food Storage Volume Defrosting Type Frost Free Freezer: ≤ -18°C, Storage Temperature Fridge: 0-8°C, average ≤ 4°C Energy Consumption 0.79kWh / 24h... -
Page 16: Safety Warnings
Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual. - Page 17 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient room temperature is approx 20°C.
- Page 18 There are separate collection systems for recycling in the EU. For more information, please contact the local authority or your retailer where you purchased the product. DSG Retail Ltd • Maylands Avenue • Hemel Hempstead Herts • HP2 7TG • England (P.N.: LFC55S11-002) LFC55S11_IB_final110413_running change.indd 18 14/04/2011 10:41 AM...
- Page 19 LFC55S11_IB_final110413_running change.indd 19 14/04/2011 10:41 AM...
- Page 20 LFC55S11_IB_final110413_running change.indd 20 14/04/2011 10:41 AM...
