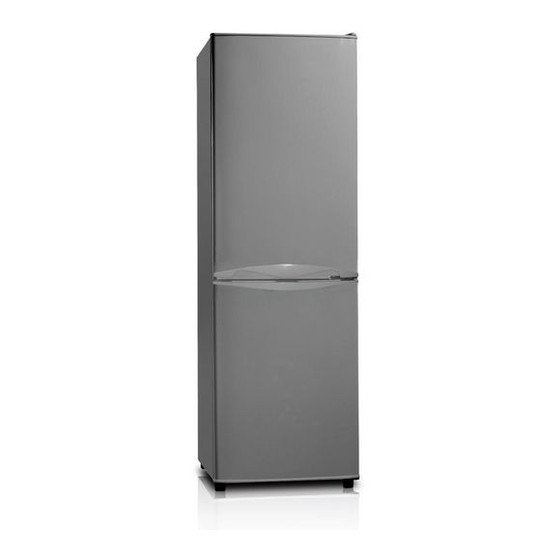

Fridge Freezer
Instruction Manual
LFC50S10
LFC50W10
LFC50S_W10_IB_final110309.indd 1
09/03/2011 6:07 PM

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the LFC50S10 and is the answer not in the manual?

Questions and answers

Summary of Contents for Logik LFC50S10

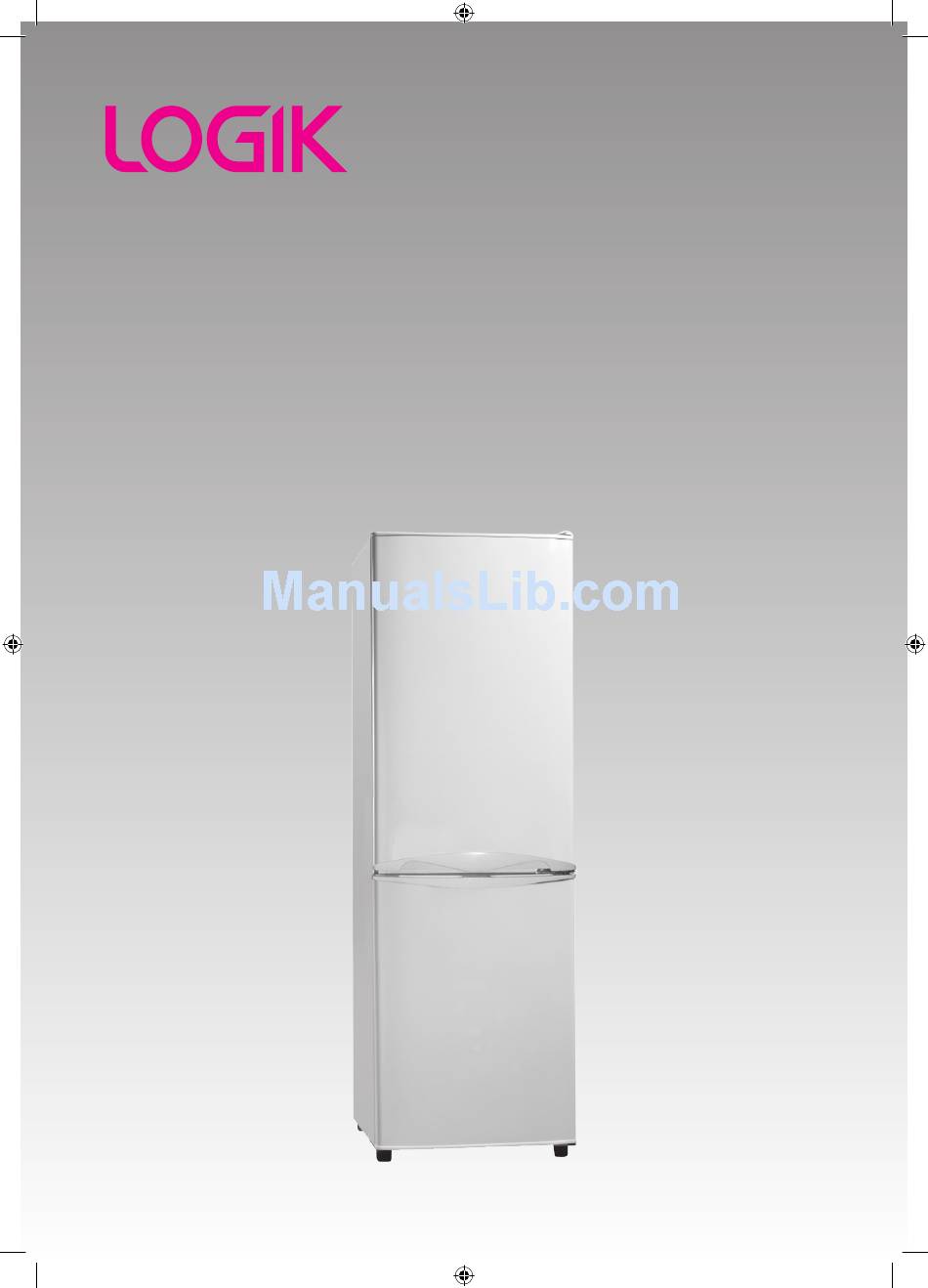

  • Page 1 Fridge Freezer Instruction Manual LFC50S10 LFC50W10 LFC50S_W10_IB_final110309.indd 1 09/03/2011 6:07 PM...
  • Page 2 LFC50S_W10_IB_final110309.indd 2 09/03/2011 6:07 PM...
  • Page 3: Table Of Contents

    Contents Unpacking ............................ 4 Installation ........................... 5 Location ..................................5 Reversing the Door Swing ........................... 5 Levelling the Unit ..............................8 Cleaning Before Use .............................. 8 Before Using Your Unit ............................8 Product Overview ........................9 Operation ........................... 10 Switching On Your Unit ............................10 Adjusting the Temperature ..........................10 Noises Inside the Unit ............................11 Shopping for Chilled Foods ..........................11...
  • Page 4: Unpacking

    Thank you for purchasing your new Logik Fridge Freezer. We recommend that you spend some time reading this instruction manual in order that you fully understand all the operational features it offers. Read all the safety instructions carefully before use and keep this instruction manual for future reference.
  • Page 5: Installation

    INSTALLATION Location When selecting a position for your unit you should make sure the floor is flat and firm, and the room is well ventilated with an average room temperature of between 16°C and 32°C. Avoid locating your unit near a heat source, e.g. cooker, boiler or radiator. Also avoid direct sunlight as it may increase the electrical consumption.
  • Page 6 INSTALLATION 2. Undo the screws. Then remove the hinge bracket. Unscrew Remove 3. Remove the top left screw cover. 4. Remove the fridge door. 5. Take off the middle hinge by removing the screws. Unscrew 6. Lift the freezer door up and move it away. 7.
  • Page 7 INSTALLATION 8. Tilt the unit carefully. 2 people are required to tilt the unit during the door reversing process. 9. Remove the screws and bottom hinge. Then remove the adjustable feet from both side and reattach them to the opposite side. Unscrew Screw 10.
  • Page 8: Levelling The Unit

    INSTALLATION Levelling the Unit To do this use the two levelling feet at the front of the unit. If the unit is not level, the doors and magnetic seal alignments will not be covered properly. Cleaning Before Use Wipe the inside of the unit with a weak solution of bicarbonate soda. Then rinse with warm water using a ‘wrung-out’...
  • Page 9: Product Overview

    Product Overview Thermostat Control Dial Upper Fridge Internal Door Shelf Light Middle Fridge Adjustable Door Shelf Glass Shelves Lower Fridge Salad Bin Door Shelf Freezer Freezer Drawers Door Ice Tray (Inside the drawer) Adjustable Feet Egg Tray Ice Tray LFC50S_W10_IB_final110309.indd 9 09/03/2011 6:08 PM...
  • Page 10: Operation

    Operation Switching On Your Unit 1. Connect the mains cable to the mains socket. The internal temperature of your unit is controlled by a thermostat. There are seven settings, of which position 7 is the coldest and position 0 turns the unit off. 2.
  • Page 11: Noises Inside The Unit

    Noises Inside the Unit! You may notice that your unit makes some unusual noises. Most of these are perfectly normal, but you should be aware of them! These noises are caused by the circulation of the refrigerant liquid in the cooling system. It has become more pronounced since the introduction of CFC free gases.
  • Page 12: Preparations For Freezing

    Preparations for Freezing • Use quality food and handle it as little as possible. Freeze food in small quantities as it freezes faster, takes less time to defrost and enables you to control the quantity you need better. • Leave cooked food to cool completely. Chill food before freezing if possible. •...
  • Page 13: Cleaning

    Cleaning Defrosting The freezer compartment of this unit is frost-free. With proper use, there should not be any frost accumulated. However, in case of improper use of the freezer compartment, frost might build up in the freezer compartment after the unit has been used for a period of time. Scrape away the frost using a plastic scraper.
  • Page 14: Maintenance

    Maintenance Changing the Internal Light 1. Before carrying out the bulb replacement always adjust the thermostat control dial to Position OFF, then disconnect the mains supply. 2. Hold and lift up the light bulb cover. 3. Remove the old bulb by unscrewing in an anti- clockwise direction..
  • Page 15: Specification

    Specification Model LFC50S10 / LFC50W10 Overall Dimension (W x D x H) 491 x 567 x 1523mm Total Gross Volume 170L Fresh Food Storage Compartment 115L Volume Frozen Food Storage Volume Defrosting Type Frost Free Freezer: ≤ -18 °C, Storage Temperature Fridge: 0-8 °C, average ≤...
  • Page 16: Safety Warnings

    Safety Warnings For your continued safety and to reduce the risk of injury or electric shock, please follow all the safety precautions listed below. • Read all instructions carefully before using the unit and keep them for future reference. • Retain the manual.
  • Page 17 Normal energy Increased energy consumption consumption Installation site In a ventilated room. In an enclosed, unventilated room. Protected from direct sunlight. In direct sunlight. Not situated near to a heat source Situated near to a heat source (radiator, oven). (radiator, oven). Where the ideal ambient room Where there is a high ambient room temperature is approx 20°C.
  • Page 18 NOTE: If you require a replacement for any of the items listed below, please quote their corresponding part numbers: Replacement Part Part Number Adjustable Glass Shelf 503602010054 Salad Bin 501116810058 Small Freezer Drawer 501117010010 Large Freezer Drawer 501116810057 Egg Tray 501100000612 Ice Tray 501117810109...
  • Page 19 LFC50S_W10_IB_final110309.indd 19 09/03/2011 6:08 PM...
  • Page 20 LFC50S_W10_IB_final110309.indd 20 09/03/2011 6:08 PM...
