USER MANUAL & ASSEMBLY INSTRUCTIONS
Important: Read these instructions and warnings carefully so as to familiarize yourself with the
appliance before connecting it to its gas container. Keep these instructions for future reference.
LPGSASA Permit Number (1185-16/2-RSA-12A)
Manufactured in China· Distributed by Mega Group · PO Box 15, Woodlands, 0027, South Africa· Tel: +27(0)12 802 1515
WARNING
To reduce the risk of fire,burn hazard or
other injury,read the manual carefully and
completely before using your grill.
WARNING
This grill is not intended to be
installed in or on recreational vehicles
and/or boats.

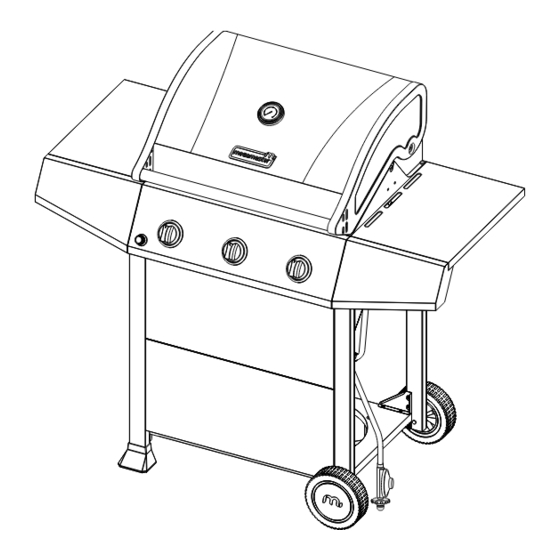

Sizzler 300 Black
www.megamaster.co.za
f
WARNING
d
FOR OUTDOOR USE ONLY
.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Sizzler 300 Black and is the answer not in the manual?

Questions and answers

Related Manuals for Megamaster Sizzler 300 Black

Summary of Contents for Megamaster Sizzler 300 Black

  • Page 1 Sizzler 300 Black USER MANUAL & ASSEMBLY INSTRUCTIONS Important: Read these instructions and warnings carefully so as to familiarize yourself with the appliance before connecting it to its gas container. Keep these instructions for future reference. LPGSASA Permit Number (1185-16/2-RSA-12A) www.megamaster.co.za...

  • Page 2: Table Of Contents

    Table of Contents Safety Instructions Operating Instructions Package Contents List Braai ignition Instructions 25-26 Hardware Contents Care and Maintenance Exploded View Trouble Shooting 28-29 Part List Warranty Information Assembly Instructions 12-21 Gas Hook –Up Installer Final Check List Leak Testing 23-24 Safety Instructions DANGER...

  • Page 3: Safety Instructions

    Safety Instructions DANGER Never leave the braai unattended while it is on. Never operate this appliance within 10 ft (3 m) of any structure, combustible material or other LP gas cylinder. Never operate this appliance within 25 ft (7.5 m) of any flammable substance. Do not fill cooking vessel beyond maximum fill line.
  • Page 4 Safety Instructions WARNING CAUTION: Beware of Burn-Back Do not try lighting this appliance without reading the “LIGHTING INSTRUCTIONS” section of this manual CAUTION: Spiders and small insects occasionally spin webs or make nests in the braai burner tubes during transit and warehousing.
  • Page 5 Safety Instructions LP-Gas Supply System • When your gas braai is not in use the gas must be turned off at LP gas cylinder. • If this information is not followed exactly, a fire • The gas must be turned off at the supply cylinder resulting in death or serious injury could occur.
  • Page 6 Safety Instructions PROPER PLACEMENT AND CLEARANCE OF BRAAI CAUTION: TO ENSURE CONTINUED PROTECTION AGAINST RISK OF ELECTRIC • Never use your gas braai in a garage, porch, shed, SHOCK, CONNECT TO PROPERLY or any other enclosed area. Your gas braai is to be GROUNDED OUTLETS ONLY.
  • Page 7 Safety Instructions Keep the area surrounding the braai free from Do not heat unopened food containers on the braai. combustible materials including, fluids, trash and A build-up of pressure may cause the containers vapours such as gasoline or charcoal lighter fluid. Do to burst.

  • Page 8: Package Contents List

    Package Contents List D.Cylinder support A.Firebox Assembly---- B.Bottom panel----1pc C.Front panel----2pcs bracket ----2pcs E.Cart leg rear,left----1pc F.Cart leg front,left----1pc G.Cart leg rear,right---- H.Cart leg front,right---- K.Cart caster insert---- L.Grease tray----1pc I.Triangle bracket,left---- J.Triangle bracket,right--- 2pcs ----1pc N.Wheel----2pcs O.Wheel cap----2pcs M.Grease box----1pc P.Side shelf,left----1pc Q.Side shelf,right----1pc R.Cooking grid---2pcs...

  • Page 9: Hardware Contents

    Hardware Contents REF# Description Specification Quantity Truss Head Screw(black) AA-1 W1/4”*-20x1/2’’ 34PCS Truss Head Screw (black) AA-2 W5/32*-32X2/5’’mm 8PCS Flat Washer 1/4” 6PCS Flat Washer(Aluminum) 5/32” 4PCS Flat Washer 5/16” 2PCS 5/16” 2PCS...

  • Page 10: Exploded View

    Exploded view...

  • Page 11: Part List

    Part List Warranty Warranty Part (Description) coverage Part (Description) coverage (year) (year) Main lid Pulse igniter module Main lid screw Bezel Temperature guage Control knob Logo Side shelf,right Hood buffer A Sidf shelf front panel,right Side shelf,left Grease tray Side shelf front panel,left Grease box Warming rack Cart leg rear,right...

  • Page 12: Assembly Instructions

    Assembly Instructions Fig. 1 1. Cart Caster and Cart Assembly Cart Caster Insert (K) into the Cart Leg front ,Left (F) and Cart Leg Rear Left (E). As shown in Fig. 1. b) Loosen, but do not remove the two screws that are pre- assembled on the Cart Leg Rear Left (E) and Fig.
  • Page 13 Assembly Instructions Fig. 4 d) Loosen, but do not remove the screws that are pre- assembled on the Cart Leg Front Right (H )and Cart Leg Rear Right (G). Attach Cart Leg, Front Right (h) and Cart Leg Rear Right (G) to Cart Frame (U), by aligning the holes on the Cart Frame.
  • Page 14 Assembly Instructions Fig. 7 b) Place upside down the bottom panel and attach to 8x AA-1 the Cart Leg Rear Right (G) and Cart Leg Front Right (H) by using eight W1/4”*-20x1/2’’black screw (AA-1) which are in the hardware pack. As show in Fig.
  • Page 15 Assembly Instructions Fig. 10 5. Wheel Assembly 2xDD 2xEE a) Place the wheels (N) on the axle which stable in the Cart Leg Front Right (H) and Cart Leg Rear Right (G) b) Place two 5/16“ flat washers (DD) and two 5/16” nuts (EE) which in the hardware pack to the axle and tighten the nuts.
  • Page 16 Assembly Instructions c) Secure the firebox right to the cart beam by using Fig. 13 2x AA-1 two W1/4”*-20x1/2’’black screws (AA-1) which in the hardware pack. As shown in Fig. 13. d) Secure the firebox left to the cart beam by using Fig.
  • Page 17 Assembly Instructions Attach the gas hose to the fixture and fix the Fig. 16 screw which is loosen in above step 6e.As shown in fig.16. Fig. 17 7 . Left Side Shelf Assembly a) Loosen but do not remove the screw which is pre-assembled on the outside firebox, left.
  • Page 18 Assembly Instructions Fig. 19 Secure the side shelf control panel and main control panel by using two W5/32*-32X2/5’’mm 2xAA-2 black screws (AA-2) and 5/32” flat washer (CC) 2xCC which in the hardware pack. As show in Fig. 19. d) Align the hole on the side shelf bracket with the loosened screw located on the outside firebox and tighten.
  • Page 19 Assembly Instructions Fig. 22 c) Secure the side shelf control panel and main control panel by using two W5/32*-32X2/5’’mm 2xAA-2 black screws (AA-2) and 5/32” flat washer (CC) 2xCC which in the hardware pack. As show in Fig. 22 Align the hole on the side shelf bracket with the loosened screw located on the outside firebox and tighten.
  • Page 20 Assembly Instructions Fig. 25 10. Position Flame Tamers and Cooking Grids a) Place the flame tamer (S) in the firebox. Make sure the flame tamer in within the flame tamer bracket. As shown in Fig. 25. b) Place the Cooking Grids (R) in the firebox. As Fig.
  • Page 21 Assembly Instructions Fig. 27 c） Place the Warming Rack (T) on brackets. As shown in Fig. 27. 11. Battery and Liquid Propane Tank Installation Fig. 28 Unscrew the electronic ignition button and place the battery into the compartment with the positive terminal (+) facing outward.

  • Page 22: Gas Hook-Up

    Gas Hook-up NEVER CONNECT AN UNREGULATED GAS Regulator Connection SUPPLY LINE TO THE APPLIANCE. USE THE REGULATOR/HOSE ASSEMBLY SUPPLIED. This is a LP Gas configured braai. Do not attempt to use a natural gas supply unless the braai has been reconfigured for natural gas use.

  • Page 23: Installer Final Check List

    Installation final check list  Minimum clearance from the sides and back of USER, PLEASE RETAIN THIS MANUAL FOR the unit to combustible constructions is, 61cm FUTURE REFERENCE. from the sides and 61cm from the back. LP GAS CYLINDER CAUTIONS ...
  • Page 24 Leak Test CAUTION Place dust cap on cylinder valve outlet when the cylinder is not in use. Only install the type of dust cap on the cylinder valve outlet that is provided with the cylinder valve. Other types of caps or plugs may result in leaking of LP gas.

  • Page 25: Operating Instructions

    Operating Instructions Using the braai NOTE: The hot braai sears the food, sealing in the juices. The more thoroughly the braai is preheated, the Each main burner is rated at 13,500 Btu/hr. The main faster the meat browns and the darker the braai marks. braai burners encompass the entire cooking area and are side ported to minimize blockage from falling DO NOT LEAVE THE BRAAI UNATTENDED WHILE...
  • Page 26 Braai ignition instructions Flame characteristics Check for proper burner flame characteristics. Burner flames should be blue and stable with no yellow tips, excessive noise, or lifting. If any of these conditions Visually check the burner flames prior to each exist call our customer service line. If the flame is yellow, use, The flames should look like this picture, if this is a indication of insufficient air.

  • Page 27: Care And Maintenance

    Care and maintenance Stainless steel Warning: If you wish to replace the main burner, we strongly recommend that you hire a There are many different stainless steel cleaners available. professionally trained technician to replace it. Always use the mildest cleaning procedure first, scrubbing in Please understand that we will not be responsible the direction of the grain.

  • Page 28: Trouble Shooting

    Trouble shooting Spider and insect warning Checking and cleaning burner/ venturi tubes for insects and insect nests. A clogged tube can lead to a fire beneath the braai. Spiders and small insects occasionally spin webs or make nests in the braai burner tubes during transit and warehousing. These webs can lead to gas flow obstruction which could result in a fire in and around burner tubes.
  • Page 29 Trouble shooting PROBLEM SOLUTION When attempting to light my braai, it will Make sure you have a spark while you are trying to ignite the burner not light immediately. If there is no spark: -Ensure that the wire is connected to the electrode assembly. -Clean wire (s) and / or electrode with rubbing alcohol and a clean swab.

  • Page 30: Warranty Information

    Warranty information This braai has a one (1) year limited warranty. The warranty period is valid from the date of purchase. Please retain your proof of purchase. This is subject to correct assembly, use, storage and regular maintenance of the product.
  • Page 31 Sizzler 300 Black FOR OUTDOOR USE ONLY WARNING Read and follow all Safety, Assembly, and Use & Care Instructions in this guide before assembling and cooking with this grill. Failure to follow all instructions in this Use & Care Guide may lead to fire or explosion, which could result in property damage,personal injury or death.
