Sharp QT-CD131H Service Manual page 16

QT-CD131H/132H
P14 1 - E
TO MAIN SECTION
A
B
C
D
E
F
G
H
• NOTES ON SCHEMATIC DIAGRAM can be found on page 21.
1 2 3 4 5 6

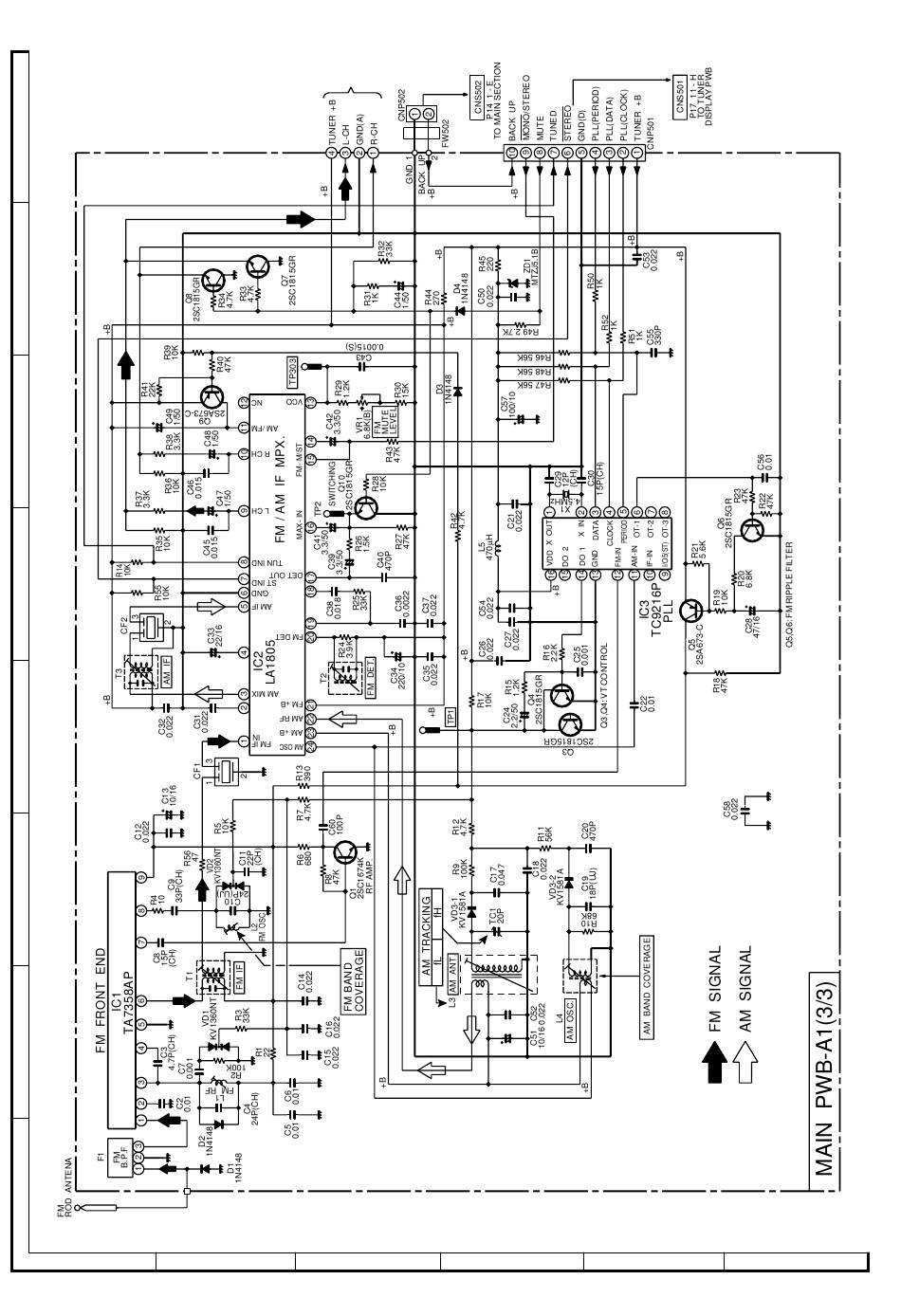

Figure 16 SCHEMATIC DIAGRAM (5/6)
– 16 –
