Sharp QT-CD131H Service Manual page 17

Hide thumbs Also See for QT-CD131H:
Table of Contents

Advertisement

QT-CD131H/132H
BI501
CNS501
7
8
9
10
11
12

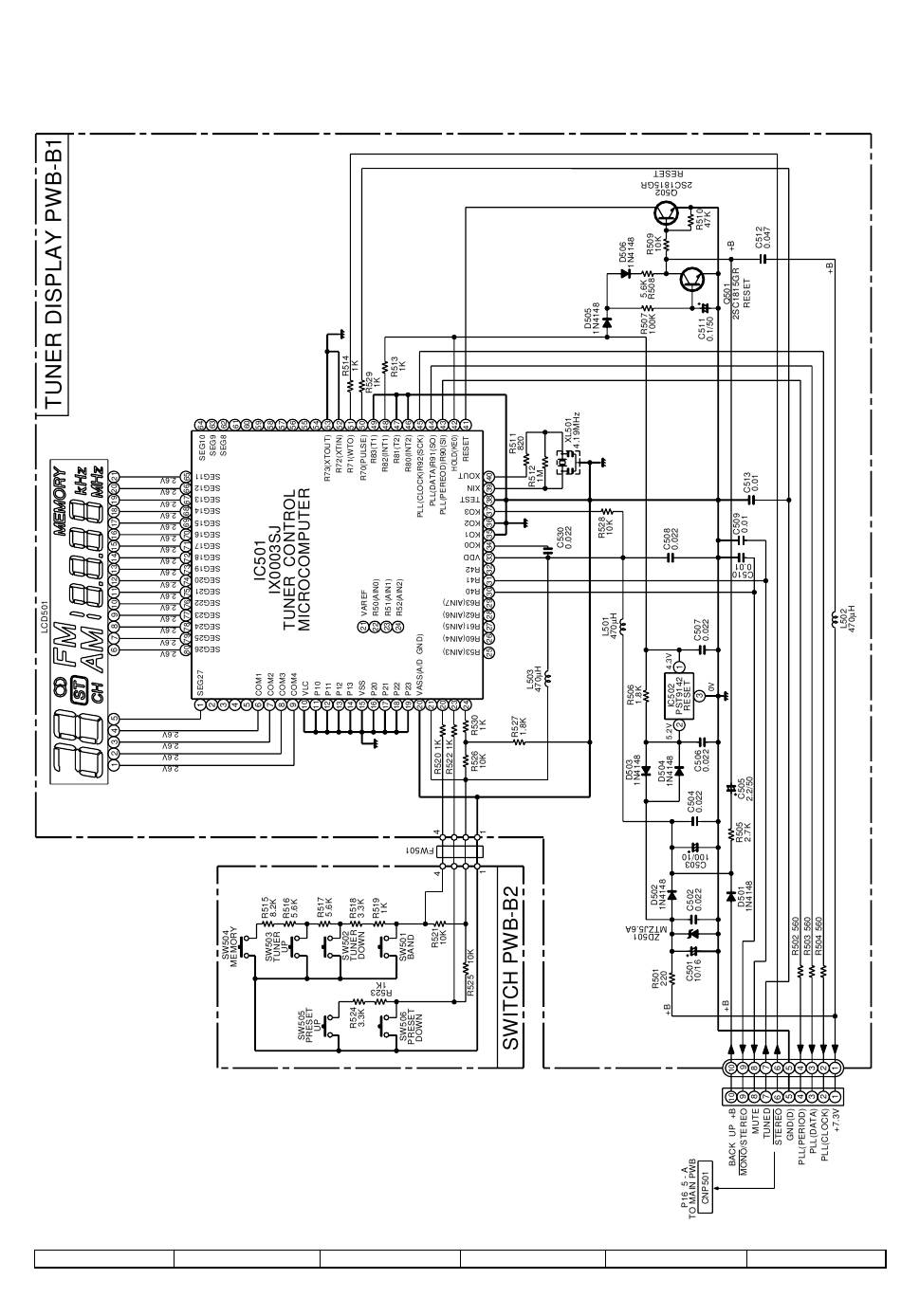

Figure 17 SCHEMATIC DIAGRAM (6/6)
– 17 –
