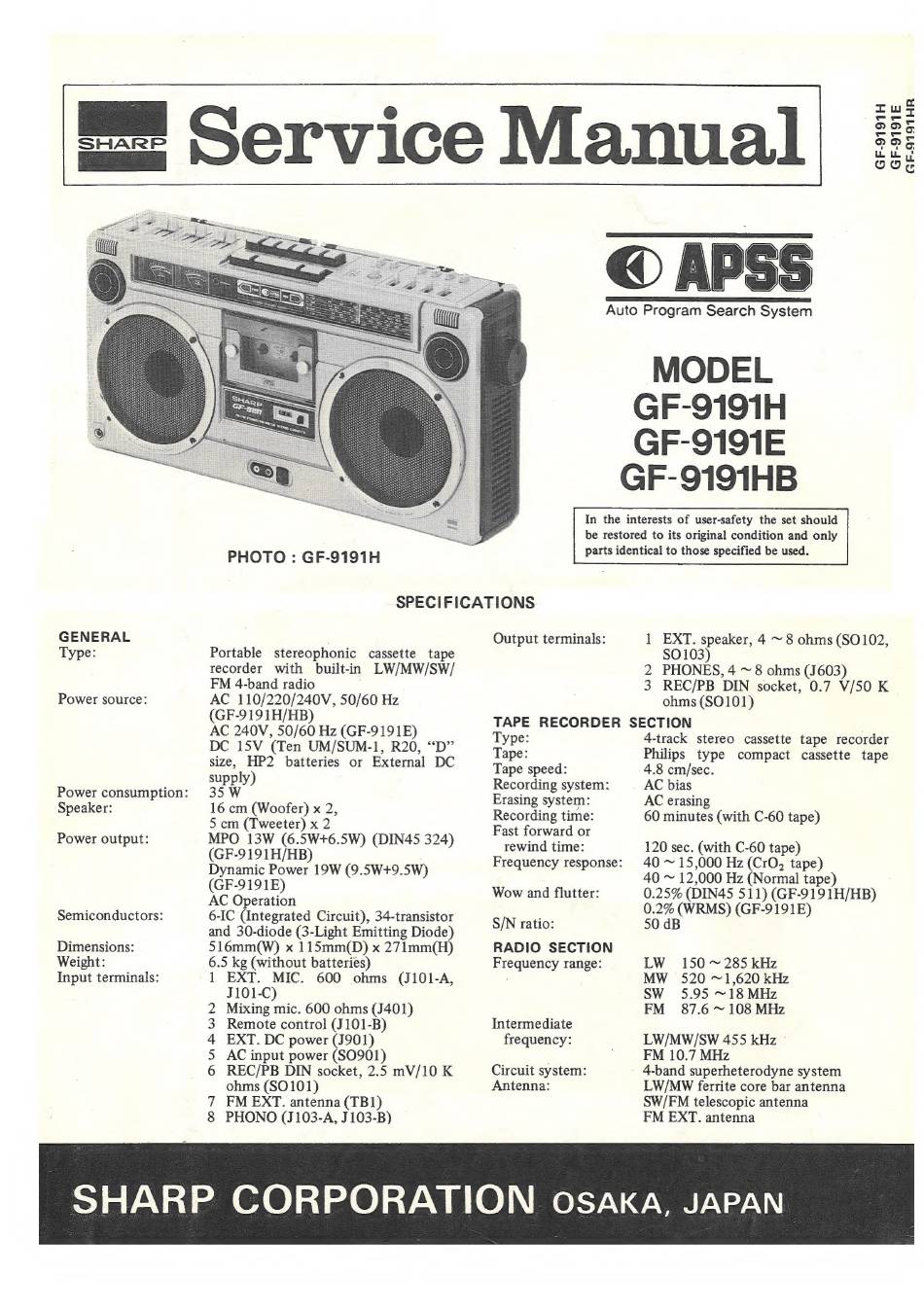

Sharp GF-9191H Service Manual

GF-9191 GF-91
GF-
ervice M
SSE
Auto Program Search System
MODEL
GF-9191H
GF-9191E
GF-9191HB
In the interests of user-safety the set should
be restored to its original condition and only
parts identical to those specified be used.
PHOTO : GF-9191H
SPECIFICATIONS
GENERAL
Output terminals:
1 EXT. speaker, 4 ~ 8 ohms (SO102,
Type: Portable stereophonic cassette tape SO103)
recorder with built-in LW/MW/SW/ 2 PHONES, 4 ~ 8 ohms (J603)
FM 4-band radio 3 REC/PB DIN socket, 0.7 V/50 K
Power source: a ace 50/60 Hz ohms (SO101)
GF-9191H/HB) TAPE RECORDER SECTION
ae ie SSE ear "p" Type: 4-track stereo cassette tape recorder
; ! ea] > Tape: Philips type compact cassette tape
size, HP2 batteries or External DC Tape speed: 4.8 cm/sec
P cout supply) Recording system: — AC bias
ous consumption: 35 Erasing system: AC erasing
Speaker: 16 cm (Woofer) x 2, Recording time: 60 minutes (with C-60 tape)
5 cm (Tweeter) x 2 Fast forward or
Power output: (Geomuny (DIN4S 324) r rewind time: 120 sec. (with C-60 tape)
Dynamic Power 19W (9.5W+9.5W) EE ou 2 Norul tips)
Oe eee Wow and flutter: 0.25% (DIN45 511) (GF-9191H/HB)
ea: P oa 0.2% (WRMS) (GF-9191E)
emiconductors: 6-IC (Integrated Circuit), 34-transistor S/N ratio: 50 dB
and 30-diode (3-Light Emitting Diode) ;
Dimensions: 516mm(W) x 115mm(D) x 271mm(H) RADIO SECTION
Weight: 6.5 kg (without batteries) Frequency range: LW 150 ~ 285 kHz
Input terminals: 1 EXT. MIC. 600 ohms (J101-A, : MW 520 ~1,620 kHz
J101-C) SW 5.95 ~18 MHz
2 Mixing mic. 600 ohms (J401) FM 87.6 ~ 108 MHz
3 Remote control (J101-B) Intermediate
4 EXT. DC power (J901) frequency: LW/MW/SW 455 kHz
5 AC input power (SO901) FM 10.7 MHz
6 REC/PB DIN socket, 2.5 mV/10 K Circuit system: 4-band superheterodyne system
ohms (SO101) Antenna: LW/MW ferrite core bar antenna
7 FM EXT. antenna (TB1) SW/FM telescopic antenna
8 PHONO (J103-A, J103-B) FM EXT. antenna
SHARP CORPORATION OSAKA, JAPAN
