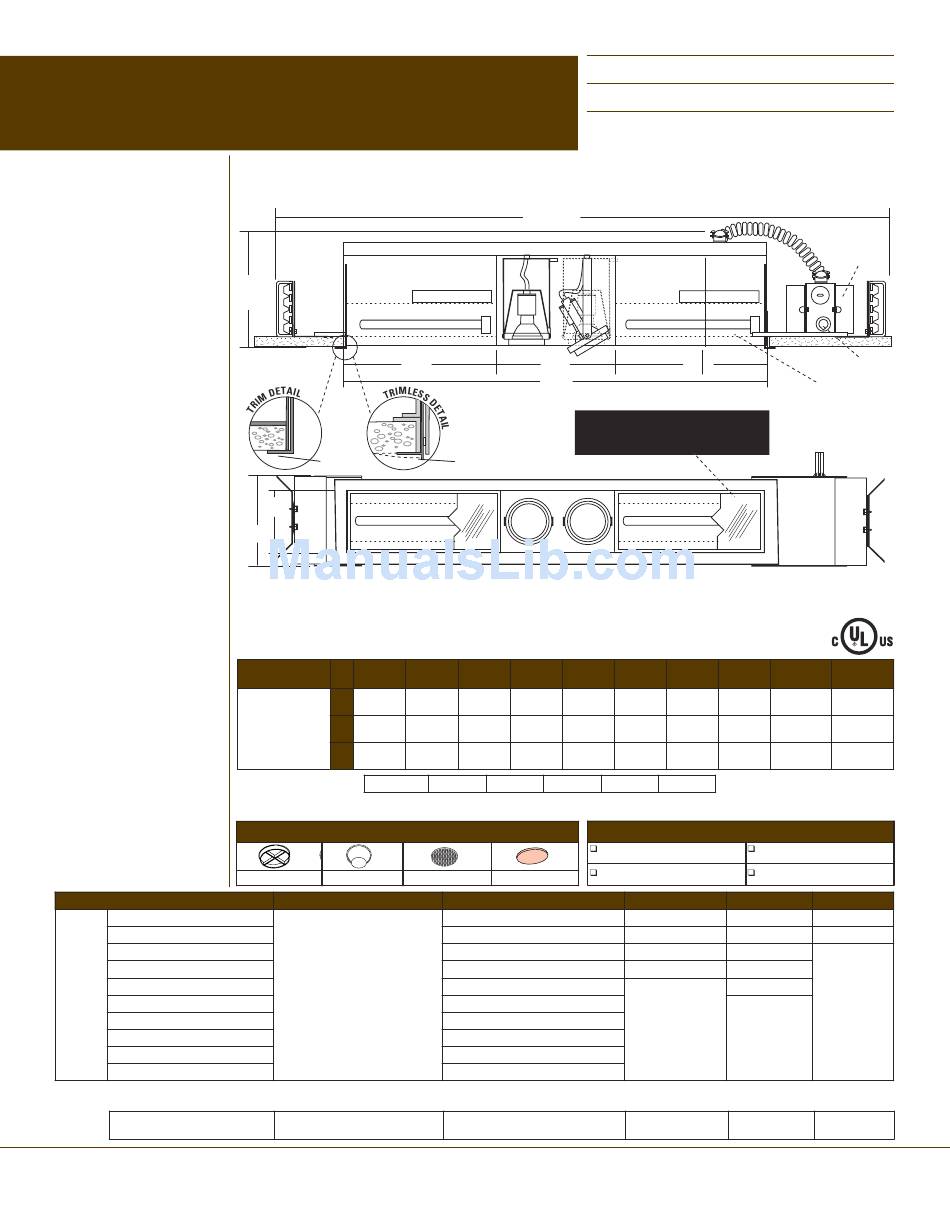

COMBOLIGHT® COMBO CLASSIC RECESSED
LAMP GROUP 2 - CONFIGURATION "C"
TWO (2) Halogen lamp cells - TWO (2) Fluorescent lamp cells
New Construction Recessed Housing - Trim or Trimless
DESCRIPTION:
An adjustable recessed fixture
suitable for multiple downlighting
applications with one point of elec-
trical entry. Mixes the use of halo-
gen lamps with fluorescent lamps.
Powder coat finish on housing &
lamp assembly.
CONSTRUCTION:
Housing, Plaster Frame & Trim
Assembly: 18 gauge CRS. J-Box
Assembly: 16 gauge CRS (galva-
nized). Fixture is offered with a .75"
ceiling trim or as a trimless fixture.
Can accommodate 0.50" to 1.00"
ceiling thickness.
LAMP ASSEMBLY:
Two low voltage or line voltage
halogen lamp cells with two fluo-
rescent lamp cells . Can accept up
to two optical accessories. 380º x
45º locking lamp adjustment.
Provides 45º visual cut-off.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Fixture is two circuit.
Circuit 1: Integral electronic trans-
former for low voltage lamps.
Fused and short circuit protection.
Dimmable.
Circuit 2: Integral electronic bal-
lasts for fluorescent lamps.
Lutron® dimming ballasts avail-
able upon request.
Junction box is UL listed for
through branch wiring, for 8 #12,
90°C supply conductors or 60°C for
end of run (access above ceiling
not required).
.
Made in the USA
Item # / Lamp Type
Lamp CR211135 - AR111 12V 35W
Group 2 CR211150 - AR111 12V 50W
CR211175 - AR111 12V 75W
CR2111100 - AR111 12V 100W
CR220 - PAR20 120V
CR230 - PAR30 120V
___
SPECIFY -
RSA LIGHTING
Dual Fluorescent lamp cells
w/ integral ballast accessible
from below
8.38"
Integral reflector
C
0.75" Trim
7.0"
8.75"
Custom configurations are available with Combo Classic fixtures.
Also available with T8 fluorescent lamps. Consult RSA for details
Fluorescent >> BX40
65.18" 65.18" 65.18" 30.18" 31.18" 33.18" 112.18" 136.18" 88.18"
A
76.98" 76.98" 76.98" 41.98" 42.98" 44.98" 123.98" 147.98" 99.98"
Lamp Group 2 B
25.50" 25.50" 25.50"
C
CR220
ORDERING EXAMPLE:
= Two PAR20 120V lamps with Two BIAX® 40W Fluorescent • Black Interior • White Trim • 120 volts
Optional Accessories - See RSA Combo Classic accessory page for details.
Baffle Snoots
Configuration
C - Two Low Voltage or Line
Voltage Halogen lamp
cells with Two
Fluorescent lamp cells
C
®
Catalog #
Type
Project
B
Ballast
13.80"
A
Must specify a diffuser or louver
Ceiling compund
for fluorescent cell. See below.
is applied right
to the edge of the
fixture opening
BX50 PLL80 PLT26 PLT32 PLT42
8.00" 8.50"
C BX40 BK
Fluorescent Diffusers and Louvers - Please specify
Louvers Lenses
Fluorescent Lamp Cell
BX40 - 40W BIAX®
BX50 - 50W BIAX®
PLL80 - 80W PL-L
PLT26 - 26W PL-T
PLT32 - 32W PL-T
PLT42 - 42W PL-T
T528 - 28W T5
T535 - 35W T5
T5HO39 - 39W T5HO
T5HO54 - 54W T5HO
T8 lamps also available
___
RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.
Ballast
Integral reflector
C
T528 T535 T5HO39 T5HO54
9.50" 49.00" 61.00"
WH 120
TWD - Textured White Diffuser CB1 - 2" Parabolic Louver
MPD - Conical Prism Diffuser CB2 - 1" Parabolic Louver
Interior Finish Trim Finish
BK - Black BK - Black
WH - White WH - White
S - Silver S - Silver
PT - Custom PT - Custom
TR - Trimless
___ ___
Electronic
Low Voltage
Transformers
Thermal Protector
380º x 45º locking
angular adjustment
45º visual cut-off
Butterfly
Brackets
for Black Iron
Mounting
112.18"
123.98"
37.00" 49.00"
Voltage
120 - 120 Volts
277 - 277 Volts
277 volt option for
low voltage
models only
