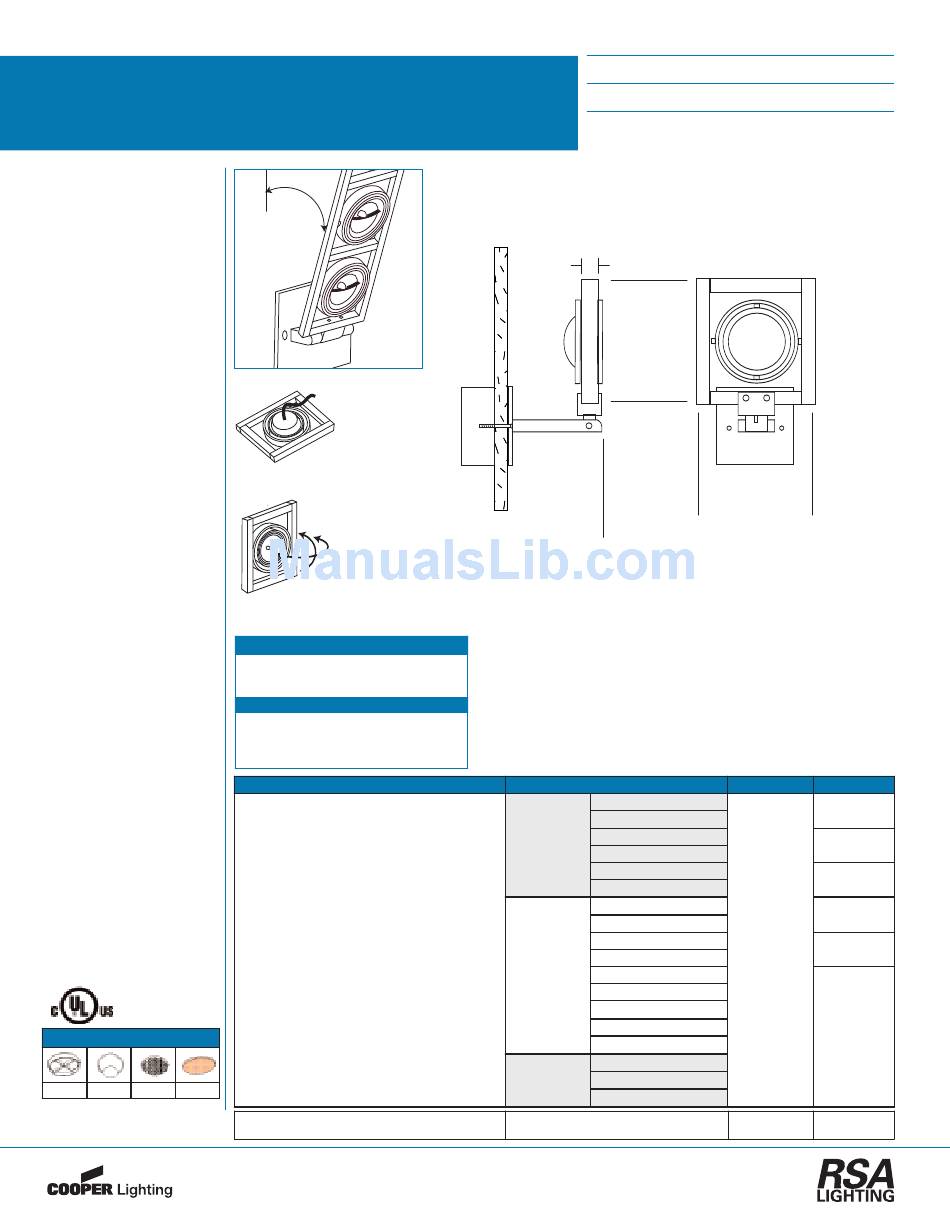

Cooper Lighting Galleria Series CGWA Specifications

COMBOLIGHT® GALLERIA Series • CGWA
ONE (1) Light Wall Mount Hinge Arm Fixture
Grid Configuration "A" • Lamp Groups 1, 2, & 3
Low Voltage, Line Voltage or Metal Halide for Remote Transformer/Ballast
DESCRIPTION:
A wall mounted fixture with an
adjustable hinge arm.
CONSTRUCTION:
All aluminum construction. Grid is
made of .75" square aluminum tub-
ing with .062" wall thickness. Weight
base adds stability to fixture.
LAMP ASSEMBLY:
One lamp mounted in adjustable
double gimbal lamp holder. Dual axis
90º x 90º locking adjustability. Hinge
Arm adjusts 90º vertically.
ELECTRICAL:
Low voltage and metal halide models
are wired for use with remote trans-
formers or ballasts. Custom configu-
rations are available for integral
transformers or ballasts - consult
RSA factory for details. Low voltage
and Line Voltage models are dimma-
ble.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Label: UL, CSA and New York
Calendar
This sheet represents a standard
configuration. Custom configura-
tions are available with Galleria fix-
tures. Consult RSA for details.
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
SPECIFY -
0° - 90°
Adjustability
Standard lamp back cover for
AR111 models hides lamp
terminals and connections.
90º
90º
Adjustable double gimbal
lamp holder accepts up to
two optical accessories
GRID CONFIGURATION "A"
This sheet is for Grid Configuration "A". To see
other grid configurations, consult other ComboLight
Galleria Series spec sheets.
IMPORTANT: USING THIS SPEC SHEET
This fixture is dimensioned according to lamp type.
Please select lamp from either Lamp Group 1, 2 or 3 -
and then refer to the appropriate dimensions of fixture
as shown above.
Cat. # / Description
CGWA - Wall Mount Hinge Arm Fixture
CGWA
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
.75"
Lamp Group 1
5.90"
Lamp Group 2
7.40"
Lamp Group 3
8.10"
Lamp Group 1
5.25"
Lamp Group 2
6.30"
Lamp Group 3
6.30"
Lamp Type
Lamp Group 1 11 - MR16 12V 50W
12 - MR16 12V 75W
13 - AR70 12V 20W
14 - AR70 12V 50W
15 - PAR16 120V
16 - PAR20 120V
Lamp Group 2 21 - PAR20MH 39W
22 - PAR30 120V
23 - PAR30MH 39W
24 - PAR30MH 70W
25 - PAR36 12V 50W
26 - AR111 12V 35W
27 - AR111 12V 50W
28 - AR111 12V 75W
29 - AR111 12V 100W
Lamp Group 3 31 - PAR38 120V
32 - PAR38MH 70W
33 - PAR38MH 100W
___
Lamp Group 1
5.90"
Lamp Group 2
7.40"
Lamp Group 3
8.10"
Grid Configuration Finish
A - One Light BK - Black
WH - White
S - Silver
PC - Polished
Chrome
PT - Custom
A
