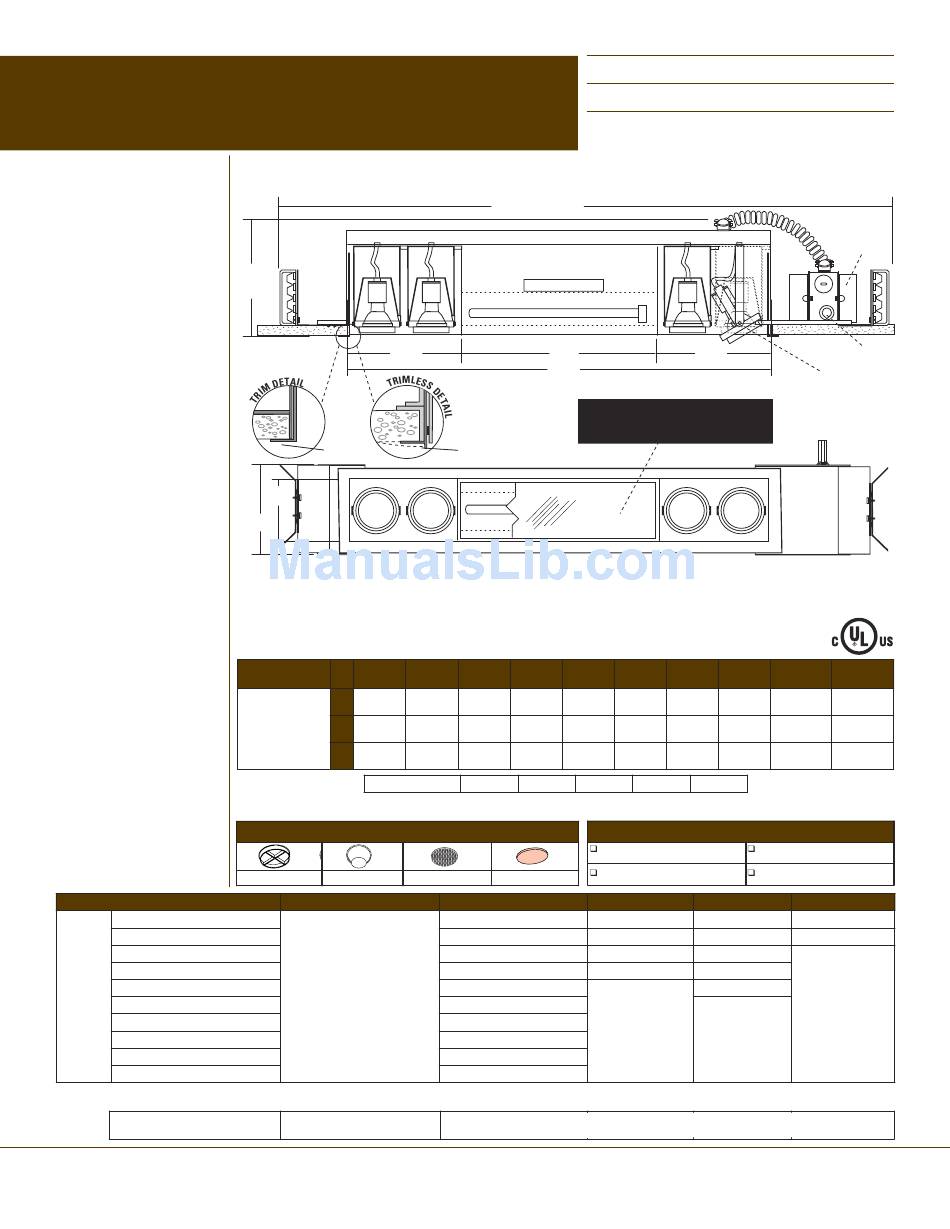

Cooper Lighting Combo Classic CR220M39 Specifications

COMBOLIGHT® COMBO CLASSIC RECESSED
LAMP GROUP 2 - CONFIGURATION "A"
FOUR (4) Metal Halide lamp cells - ONE (1) Fluorescent lamp cell
New Construction Recessed Housing - Trim or Trimless
DESCRIPTION:
An adjustable recessed fixture
suitable for multiple downlighting
applications with one point of elec-
trical entry. Mixes the use of metal
halide lamps with fluorescent
lamps. Powder coat finish on hous-
ing & lamp assembly.
CONSTRUCTION:
Housing, Plaster Frame & Trim
Assembly: 18 gauge CRS. J-Box
Assembly: 16 gauge CRS (galva-
nized). Fixture is offered with a .75"
ceiling trim or as a trimless fixture.
Can accommodate 0.50" to 1.00"
ceiling thickness.
LAMP ASSEMBLY:
Four Metal Halide lamp cells with
one fluorescent lamp cell . Can
accept up to two optical acces-
sories. 380º x 45º locking lamp
adjustment. Provides 45º visual
cut-off.
SYSTEM PROTECTION:
Thermal protection provided to
guard against overheating, and
misuse of insulation over and
around fixture. Vent holes in hous-
ing provide cooler operation
ELECTRICAL:
Fixture is two circuit.
Circuit 1: Integral Aromat® elec-
tronic metal halide ballasts for
metal halide lamps.
Circuit 2: Integral electronic bal-
lasts for fluorescent lamps.
Lutron® dimming ballasts avail-
able upon request.
Junction box is UL listed for
through branch wiring, for 8 #12,
90°C supply conductors or 60°C for
end of run (access above ceiling
not required).
.
Made in the USA
Item # / Lamp Type
Lamp CR220M39 - PAR20MH 39W
Group 2
CR230M39 - PAR30MH 39W
Metal
CR230M70 - PAR30MH 70W
Halide
___
SPECIFY -
RSA LIGHTING
9.50"
13.80"
0.75" Trim
7.00"
8.75"
Custom configurations are available with Combo Classic fixtures.
Also available with T8 fluorescent lamps. Consult RSA for details
Fluorescent >> BX40
53.58" 54.58" 55.58" 36.08" 36.58" 37.58" 77.08' 89.08"
A
Lamp Group 2
70.68" 70.38" 70.38" 52.85" 53.38" 54.38" 93.88" 105.88" 81.88"
B
Metal Halide
25.50" 25.50" 25.50"
C
CR220M39
ORDERING EXAMPLE:
= Four PAR20 Metal Halide 39W lamps with One BIAX® 40W Fluorescent • Black Interior • White Trim • 120 volts
Optional Accessories - See RSA Combo Classic accessory page for details.
Baffle Snoots
Configuration
A - Four Metal Halide lamp
cells with One
Fluorescent lamp cell
A
®
Catalog #
Type
Project
B
Fluorescent lamp cell
w/ integral ballast accessible
from below
Ballast
Integral reflector
C
A
Must specify a diffuser or louver
Ceiling compund
for fluorescent cell. See below.
is applied right
to the edge of the
fixture opening
BX50 PLL80 PLT26 PLT32 PLT42
8.00" 8.50"
A BX40
Fluorescent Diffusers and Louvers - Please specify
Louvers Lenses
Fluorescent Lamp Interior Finish
BX40 - 40W BIAX® BK - Black
BX50 - 50W BIAX® WH - White
PLL80 - 80W PL-L S - Silver
PLT26 - 26W PL-T PT - Custom
PLT32 - 32W PL-T
PLT42 - 42W PL-T
T528 - 28W T5
T535 - 35W T5
T5HO39 - 39W T5HO
T5HO54 - 54W T5HO
T8 lamps also available
___
RSA LIGHTING LLC 9660 - 9700 TOPANGA CANYON BLVD. CHATSWORTH CA. 91311
TOLL FREE: 800-356-3030 • 818-349-3030 • FAX: 818-349-3031 • www.rsalighting.com
©2003 RSA Lighting LLC All Rights Reserved • Specifications subject to change without notice.
13.80"
T528 T535 T5HO39 T5HO54
9.50" 49.00" 61.00"
