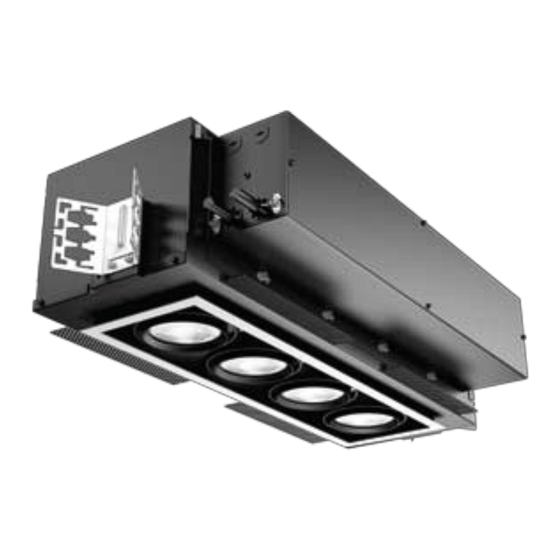

Cooper Lighting Combolight Combolight Recessed Lighting Specification Sheet

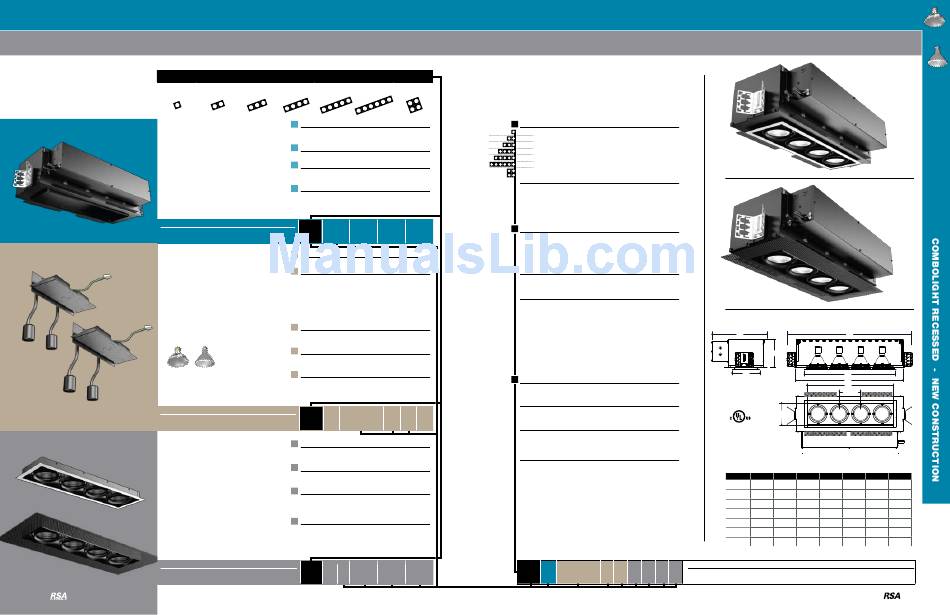

COMBOLIGHT RECESSED - NEW CONSTRUCTION
Component Ordering
Specify housings, electrical assemblies or lamp assemblies as separate line items to enable "quick-ship".
The configuration code should precede
each component number. Choose your
C1
configuration and add the code to the
beginning of each housing, electrical or
One
Lamp
trim insert part number to indicate lamp
quantity and configuration.
HOUSING
• Lightweight frameless construction
• Integral electrical enclosure with through
branch wiring access
• Butterfly brackets for commercial
applications
• Hidden vent holes for cooler operation
• One or two circuit
• Integral thermal protection
NOTE: Housing finish (1C) should match interior finish (3C).
Consult factory for special finish specifications.
Ordering Example
Four (4) Light COMBOLIGHT Recessed, New Construc-
tion Housing Component, 120V, Black Finish
ELECTRICAL
• Individually removable for easy maintenance
• Integral electronic metal halide ballasts
• Quickconnect wiring
• Includes lamp sockets
• De-rated wattage labeling available
PAR30 PAR30
120V METAL
HALIDE
NOTE: Electrical platform finish (2E) should match Housing
finish (1C). Consult factory for special finish specifications.
Ordering Example
Four (4) Light 39W PAR30MH Electrical Component,
Electronic Metal Halide Ballasts,120V Primary, Black
TRIM INSERT
• 0.75" trim flange or trimless
• 45º x 45º lockable aiming
• Gimbals are interchangeable
• Two-position gimbal mounting provides
optional 1" regress
• Threadless lamp bezels
• Spring-loaded lamps and accessories
• Optional retractable arm
NOTE: Housing Interior, Gimbals and Inner Trim Sleeve share
the same finish. Custom combinations are available upon
request. Consult factory for special finish specifications.
Ordering Example
Four (4) Light Insert with Trim Flange, Double Gimbals,
Black Interior / White Trim Finish
32
CONFIGURATION CODE
C2 C3 C4 C5 C6
Two Three Four Five Six
Lamps Lamps Lamps Lamps Lamps
1A
HOUSING CONSTRUCTION
N New Construction
C Chicago Plenum
1B
HOUSING GROUP SIZE
(see page 5 for explanation)
3 Housing Group 3
1C PRIMARY VOLTAGE
1 120 Volts
2 277 Volts
1D
HOUSING FINISH
B Black Powder Coat
W White Powder Coat
S Industrial Silver Powder Coat
1A 1B 1C
(Precede with Configuration Code)
C4 N 3 1
2A ASSEMBLY TYPE
N New Construction / Chicago Plenum
2B LAMP WATTAGE / TYPE
075P30 75 Watt Max. PAR30 120V
039M30 39 Watt PAR30 Metal Halide
070M30 70 Watt PAR30 Metal Halide
2C
POWER SUPPLY
E Electronic Ballast
N None - Line Voltage Lamp
2D PRIMARY VOLTAGE
1 120 Volts
2 277 Volts
2E
ELECTRICAL PLATFORM FINISH
B Black Powder Coat
W White Powder Coat
S Industrial Silver Powder Coat
2A 2B 2C
(Precede with Configuration Code)
C4 N 039M30 E
3A
LAMP GROUP / TRIM INSERT
(see page 5 for explanation)
4T Lamp Group 4 - 0.75" Trim Flange
4N Lamp Group 4 - Trimless (no flange)
3B
GIMBAL MECHANISM
G Standard Double Gimbal
R Retractable Arm Double Gimbal
3C INTERIOR / GIMBAL / TRIM SLEEVE FINISH
B Black Powder Coat
W White Powder Coat
S Industrial Silver Powder Coat
3D TRIM FINISH
B Black Powder Coat
W White Powder Coat
S Industrial Silver Powder Coat
N None (Trimless)
3A 3B 3C
(Precede with Configuration Code)
C4 4 T G B
By following the steps below, you may specify a complete
COMBOLIGHT fixture including housing, electrical and
CX
trim insert in one complete number. Numbers are built
using sub-sets of the component numbers from the
Four
Lamp SQUARE
previous page.
1
LAMP QUANTITY / CONFIGURATION
C1 One (1) Light Housing
C2 Two (2) Light Housing
C3 Three (3) Light Housing
C4 Four (4) Light Housing
C5 Five (5) Light Housing
C6 Six (6) Light Housing
CX Four (4) Light SQUARE Housing
HOUSING CONSTRUCTION
N New Construction
C Chicago Plenum
1D
B 2
LAMP WATTAGE / TYPE
075P30
75 Watt Max. PAR30 120V
039M30 39 Watt PAR30 Metal Halide
070M30 70 Watt PAR30 Metal Halide
POWER SUPPLY
E Electronic Transformer / Ballast
N None - Line Voltage Lamp
PRIMARY VOLTAGE
1 120 Volts
2 277 Volts
NOTE: De-rated wattage labeling available.
3
TRIM INSERT
T 0.75" Trim Flange
N Trimless (no flange)
GIMBAL MECHANISM
2D 2E
G Standard Double Gimbal
1 B R Retractable Arm Double Gimbal
INTERIOR / GIMBAL / TRIM SLEEVE FINISH
B Black Powder Coat
W White Powder Coat
S Industrial Silver Powder Coat
TRIM FINISH
B Black Powder Coat
W White Powder Coat
S Industrial Silver Powder Coat
N None (Trimless)
NOTE: Housing Interior, Gimbals and Inner Trim Sleeve share the same finish.
Custom combinations are available upon request. Consult factory for special
finish specifications.
3D
W C4 N 039M30 E 1 T G B W
COMBOLIGHT RECESSED - NEW CONSTRUCTION
Complete Fixture Ordering
Specify complete fixtures in one ordering number.
WITH 0.75" TRIM INSERT
WITH TRIMLESS INSERT
E A
7.45"
B
F
C
D
Trim Flange is 0.75"
Trimless Meshplate is 3.15" 5.69"
G
A
E
NEW CONSTRUCTION - Dimensions in inches
Config. A B C D E
7.95"*
C1 16.14 7.19 12.01 5.69 15.01
C2 21.83 12.88 17.70 11.38 15.01
F B
C
C3 27.52 18.57 23.39 17.07 15.01
*7.45" max. required
above ceiling. D
C4 33.21 24.26 29.08 22.76 15.01
C5 38.90 29.95 34.77 28.45 15.01
G
C6 44.59 35.64 40.46 34.14 15.01
CX 22.88 12.88 18.74 11.38 22.82
Ordering Example
Four (4) Light 39W PAR30MH COMBOLIGHT New Construction, Electronic Metal Halide Ballasts
120V Primary, Trim Flange Insert, Double Gimbals, Black Interior Finish, White Trim Finish
PAR30
120V
PAR30
METAL
HALIDE
F G
7.19 5.69
7.19 5.69
7.19 5.69
5.69" 7.19 5.69
7.19 5.69
7.19 5.69
12.88 11.38
33
