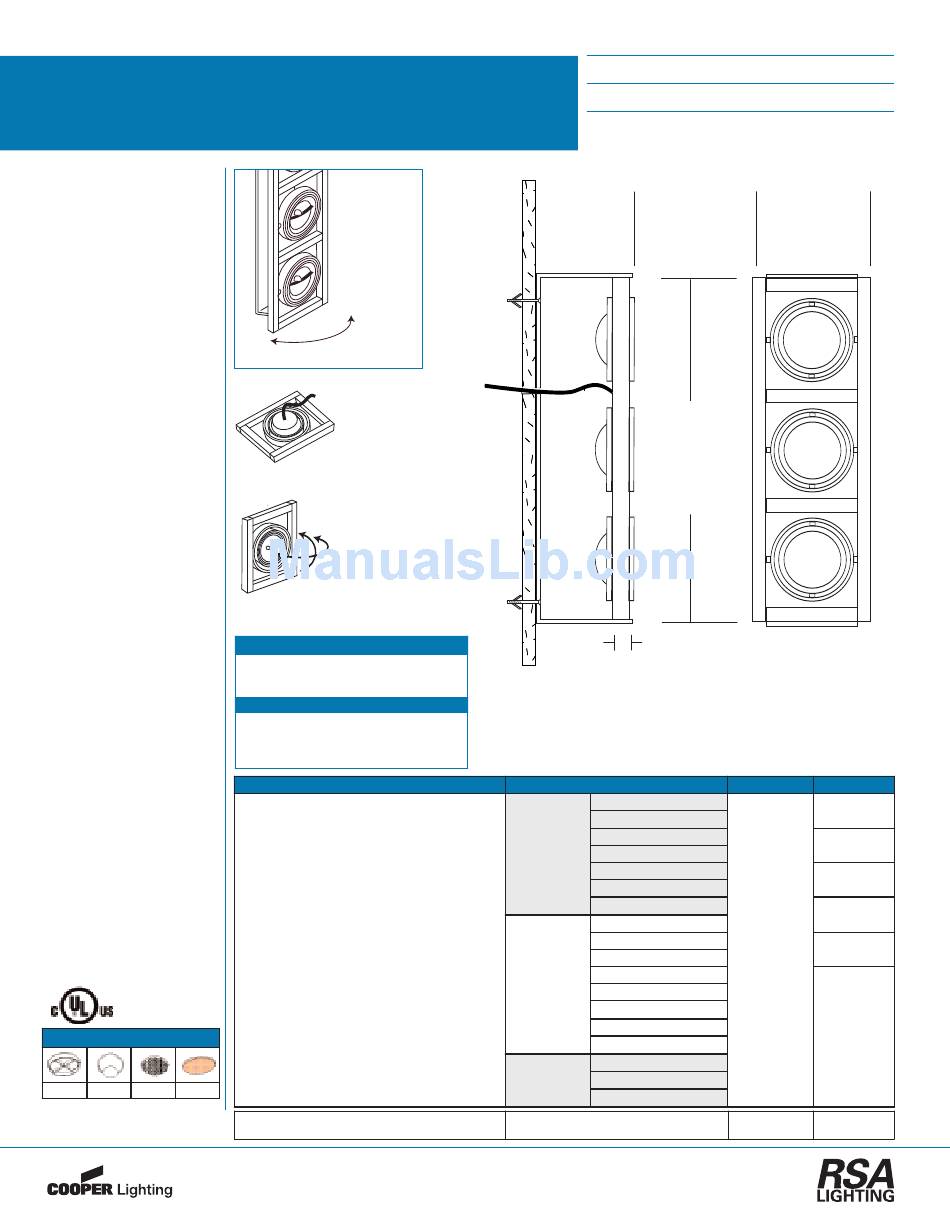

Cooper Lighting Galleria Series CGWC Installation Instructions

COMBOLIGHT® GALLERIA Series • CGWC
THREE (3) Light Wall Mount Swivel Column Fixture
Grid Configuration "B" • Lamp Groups 1, 2, & 3
Low Voltage, Line Voltage or Metal Halide for Remote Transformer/Ballast
DESCRIPTION:
A wall mounted fixture with a
swiveling grid column.
CONSTRUCTION:
All aluminum construction. Grid is
made of .75" square aluminum tub-
ing with .062" wall thickness. Weight
base adds stability to fixture.
LAMP ASSEMBLY:
Three lamps mounted in adjustable
double gimbal lamp holders. Dual
axis 90º x 90º locking adjustability.
Lamp column swivels 50º.
ELECTRICAL:
Low voltage and metal halide models
are wired for use with remote trans-
formers or ballasts. Custom configu-
rations are available for integral
transformers or ballasts - consult
RSA factory for details. Low voltage
and Line Voltage models are dimma-
ble.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Label: UL, CSA and New York
Calendar
Optional Accessories - Details on Other Side
Baffle Snoots Louvers Lenses
SPECIFY -
50° Adjustment
Standard lamp back cover for
AR111 models hides lamp
terminals and connections.
90º
90º
Adjustable double gimbal
lamp holder accepts up to
two optical accessories
GRID CONFIGURATION "B"
This sheet is for Grid Configuration "B". To see
other grid configurations, consult other ComboLight
Galleria Series spec sheets.
IMPORTANT: USING THIS SPEC SHEET
This fixture is dimensioned according to lamp type.
Please select lamp from either Lamp Group 1, 2 or 3 -
and then refer to the appropriate dimensions of fixture
as shown above.
Cat. # / Description
CGWC - Wall Mount Swivel Column Fixture
CGWC
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
Lamp Group 1
3.88"
Lamp Group 2
4.50"
Lamp Group 3
6.38"
Lamp Group 1
16.20"
Lamp Group 2
20.70"
Lamp Group 3
22.80"
.75"
Lamp Type
Lamp Group 1 11 - MR16 12V 50W
12 - MR16 12V 75W
13 - AR70 12V 20W
14 - AR70 12V 50W
15 - PAR16 120V
16 - PAR20 120V
Lamp Group 2 21 - PAR30 120V
22 - PAR30MH 39W
23 - PAR30MH 70W
24 - PAR36 12V 50W
25 - AR111 12V 35W
26 - AR111 12V 50W
27 - AR111 12V 75W
28 - AR111 12V 100W
Lamp Group 3 31 - PAR38 120V
32 - PAR38MH 70W
33 - PAR38MH 100W
___
Lamp Group 1
5.90"
Lamp Group 2
7.40"
Lamp Group 3
8.10"
Grid Configuration Finish
BK - Black
B - Three
Light
WH - White
S - Silver
PC - Polished
Chrome
PT - Custom
B
