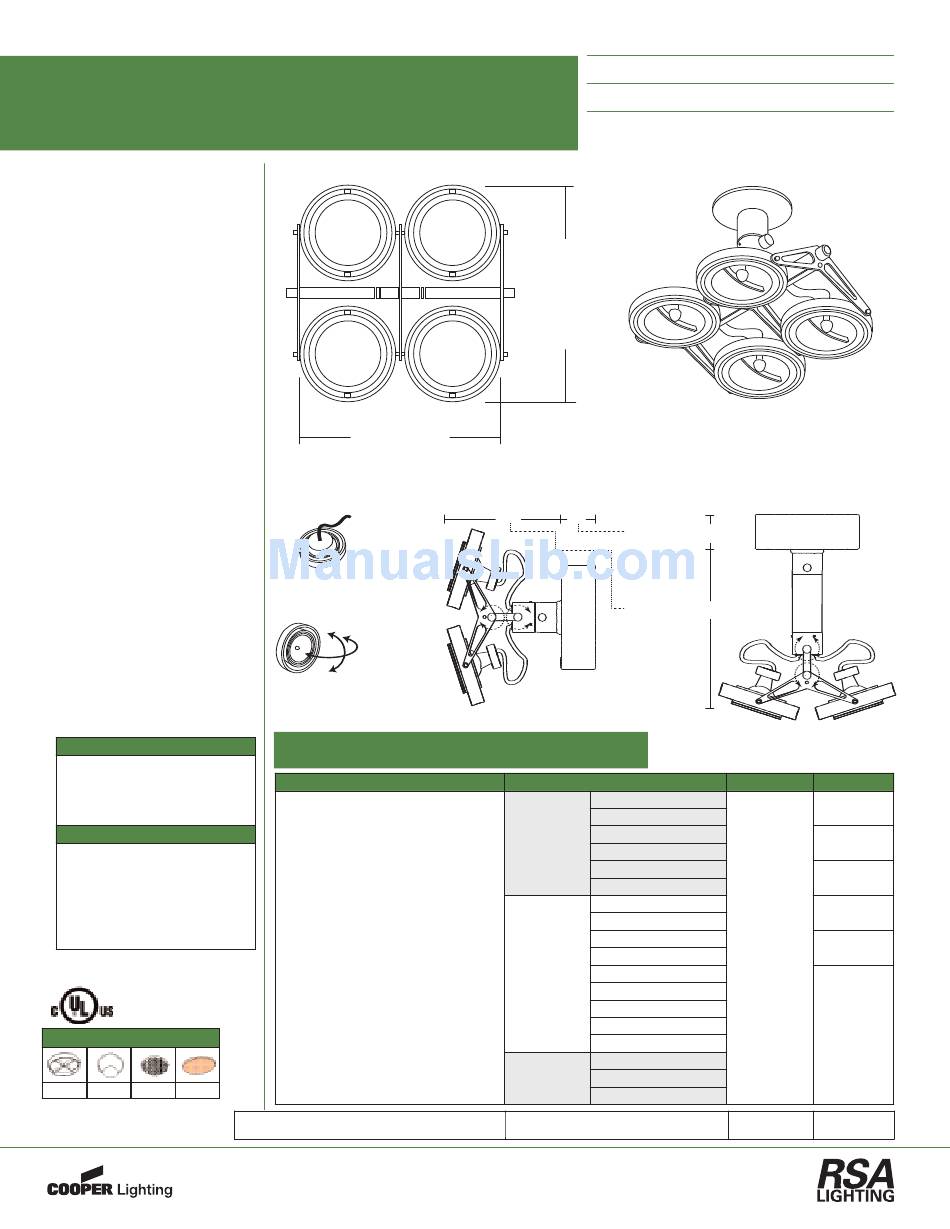

COMBOLIGHT® QUANTUM Series • CQW
FOUR (4) Light Adjustable Wall or Ceiling Mounted Luminaire
Fixture Configuration "B" • Lamp Groups 1, 2 & 3
Low Voltage, Line Voltage or Metal Halide
DESCRIPTION:
A wall / ceiling mounted fixture
with single arm construction fea-
turing two separate pivot points for
maximum flexibility in display illu-
mination.
CONSTRUCTION:
All aluminum construction with
durable powder coat finish.
LAMP ASSEMBLY:
Four lamps mounted in adjustable
double gimbal lamp holders. Dual
axis 90º x 90º locking adjustability.
Lamp column swivels 50º.
ELECTRICAL:
Low voltage and metal halide mod-
els are wired for use with remote
transformers or ballasts. Custom
configurations are available for
integral transformers or ballasts -
consult RSA factory for details.
Low voltage and Line Voltage mod-
els are dimmable.
ALL RSA COMBOLIGHT PRODUCTS
ARE MADE IN THE U.S.A.
Label: UL, CSA and New York
Calendar
GRID CONFIGURATION "B"
This sheet is for Grid Configuration
"B". To see other grid configura-
tions, consult other ComboLight
Quantum Series spec sheets.
USING THIS SPEC SHEET
This fixture is dimensioned
according to lamp type. Please
select lamp from either Lamp
Group 1, 2 or 3 - and then refer to
the appropriate dimensions of fix-
ture as shown above.
Optional Accessories - Details on Other Side
Baffle
Snoots
Louvers Lenses
SPECIFY -
Lamp Group 1
8.13"
Lamp Group 2
11.13"
Lamp Group 3
12.13"
Standard lamp back cover for
AR111 models hides lamp
terminals and connections.
90º
90º
Adjustable double gimbal
lamp holder accepts up to
two optical accessories
Custom configurations are available for integral transformers or
metal halide ballasts - consult RSA factory for details.
Cat. # / Description
CQW - Adjustable Wall / Ceiling
Mounted Luminaire
CQW
Specifications and Dimensions subject to change without notice.
RSA Lighting • 7945 Orion Ave. • Van Nuys, CA 91406 • 818-349-3030 • FAX 818-349-3031
Catalog #
Type
Project
Lamp Group 1
8.88"
Lamp Group 2
12.94"
Lamp Group 3
13.44"
*
*
3.00" (Low Voltage Canopy)
0.19" (Coverplate)
Custom Stem Length (Specify)
Lamp Type
Lamp Group 1 11 - MR16 12V 50W
12 - MR16 12V 75W
13 - AR70 12V 20W
14 - AR70 12V 50W
15 - PAR16 120V
16 - PAR20 120V
Lamp Group 2 21 - PAR20MH 39W
22 - PAR30 120V
23 - PAR30MH 39W
24 - PAR30MH 70W
25 - PAR36 12V 50W
26 - AR111 12V 35W
27 - AR111 12V 50W
28 - AR111 12V 75W
29 - AR111 12V 100W
Lamp Group 3 31 - PAR38 120V
32 - PAR38MH 70W
33 - PAR38MH 100W
___
Grid Configuration Finish
B - Four Light BK - Black
WH - White
S - Silver
PC - Polished
Chrome
PT - Custom
B
