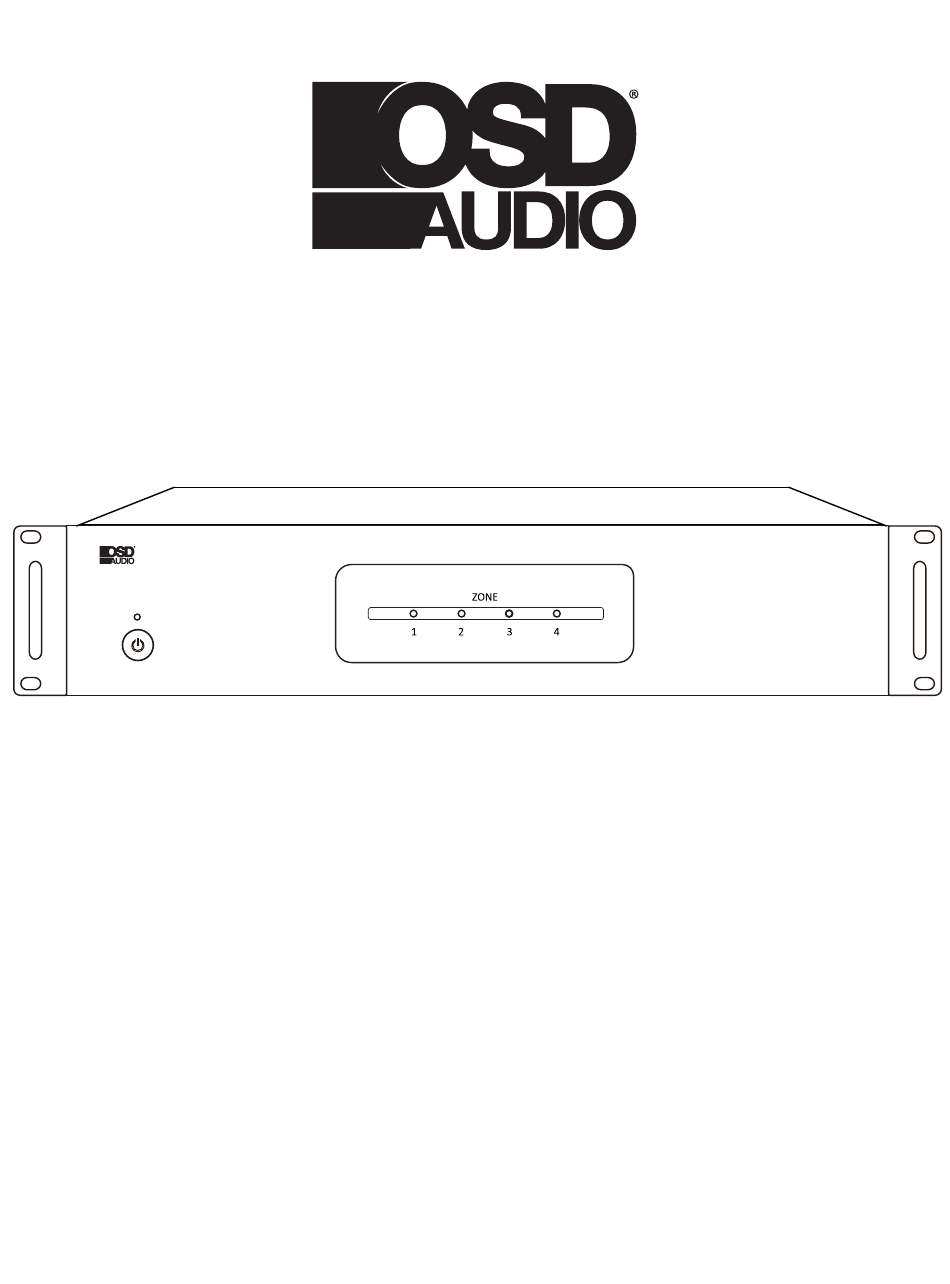

- Page 1 MX SERIES MULTI ZONE AMPLIFIER OWNER’S MANUAL MX SERIES M U L T I - Z O N E DIGITAL AMPLIFIER MX SERIES M U L T I - Z O N E DIGITAL AMPLIFIER...
- Page 2 MX SERIES MULTI ZONE AMPLIFIER OWNER’S MANUAL MX SERIES MULTI ZONE AMPLIFIER OWNER’S MANUAL WARNING Introduction • TO PREVENT FIRE OR SHOCK HAZARD, DO NOT USE THIS PLUG WITH AN EXTENSION The OSD Audio MX Series Multi-Zone Amplifiers are ideal for adding additional power in distributed audio applications or CORD, RECEPTACLE OR OTHER OUTLET UNLESS THE BLADES CAN BE FULLY INSERTED TO combining with home theater systems. The MX880 provides 8 channels, MX1280 provides 12 channels and MX1680...
- Page 3 MX SERIES MULTI ZONE AMPLIFIER OWNER’S MANUAL MX SERIES MULTI ZONE AMPLIFIER OWNER’S MANUAL Front Panel Specifications Power Output: MX SERIES 80W /Channel, 1KHz into 4 Ohms, One Zone Driven M U L T I - Z O N E DIGITAL AMPLIFIER 50W /Channel, 1KHz into 8 Ohms, One Zone Driven 160W, 1KHz into 8 ohms, Bridge Amplifier Channels: MX 880: 8 Channels, 4 Zones MX 1280: 12 Channels, 6 Zones MX 1680: 16 Channels, 8 Zones Signal-to-NoiseRatio: >90dB A-weighted...
- Page 4 MX SERIES MULTI ZONE AMPLIFIER OWNER’S MANUAL MX SERIES MULTI ZONE AMPLIFIER OWNER’S MANUAL System Configuration NERO LINK NERO LINK NERO LINK Source Source Trigger Trigger Trigger Trigger Trigger Trigger Trigger Trigger AC 115V~ AC 230V~ Line In Line In...
- Page 5 OSD Audio | Brea, CA | osdaudio.com...
