KEYPAD FEATURES
Sold Separately
(NERO MAX12 Keypad/IR Remote Kit)
Free OSD Control App duplicates Keypads
1. Numeric LED Display
2. IR Receiver Target
3. Selection & Status LED's
4. Power/Status: Press & Hold to Turn Zone ON/OFF.
When ON, Press to toggle through settings.
5. Increase Volume, Treble or Bass
6. Decrease Volume, Treble or Bass
7. Source Select
M12IRR INFRARED REMOTE-CONTROL
The M12IRR infrared remote control provides complete zone control through the IR receiver
located on the NERO Max 12 keypad. All keypad functions can be accessed using the M12IRR. In
addition to the keypad functions, the M12IRR has a MUTE button to temporarily mute audio in
the zone. Once the MUTE function is activated the keypad's LED display will flash, indicating the
mute status. Press the MUTE button to continue playing music or press the keypad volume up or
down buttons to un-mute the zone. One M12IRR is included with the Optional Max 12 Keypads.
REMOTE FEATURES
IR Remote Control works with Keypads only. It
is included with Optional Keypad Kit
1. Power: switches power (On/Off) for the respective zone
2. Mute: allows you to mute a respective zone
3. Bal: Left & Right Balance in stereo mode
4. VOL: Volume adjustment up/down
5. Source: Used to select signal input for the respective zone
6. Treble: Enhance or reduces the high frequency up and down
7. Bass: Adjust Bass enhance and reduce for the respective zone
NERO MAX12 KEYPAD MANUAL
+
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for OSD Audio NERO MAX12
Summary of Contents for OSD Audio NERO MAX12
- Page 1 NERO MAX12 KEYPAD MANUAL KEYPAD FEATURES Sold Separately (NERO MAX12 Keypad/IR Remote Kit) Free OSD Control App duplicates Keypads 1. Numeric LED Display 2. IR Receiver Target 3. Selection & Status LED’s 4. Power/Status: Press & Hold to Turn Zone ON/OFF.

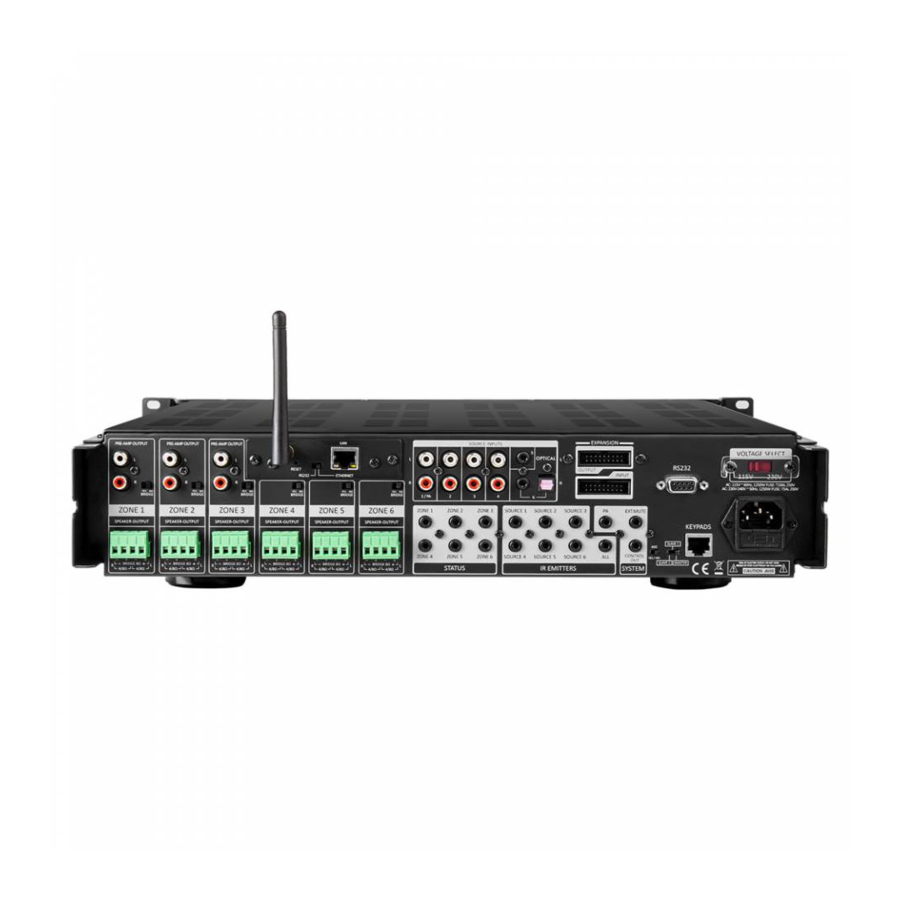

- Page 2 NERO MAX12 KEYPAD MANUAL CONNECTING THE OPTIONAL KEYPADS Keypad kit Keypad kit Front Back Back Front NERO MAX12 NERO MAX12 Dip Switches...
- Page 3 Cat5e/6 IR EMITTERS When utilizing the optional Keypad system, The NERO Max12 has an IR repeater system built in and each source has a corresponding Infrared (IR) emitter output. The IR emitter output is tied the corresponding source device, or all (global/IR Blaster versus IR emitter) source control.
- Page 4 OSD AUDIO may replace returned electronics with a product of equal value and performance. In such cases, some modifications to the mounting may be necessary and are not OSD AUDIO’s responsibility. For this warranty to apply, the unit must be installed and used according to its written instructions.
