Summary of Contents for Foamit FI-BP-5N

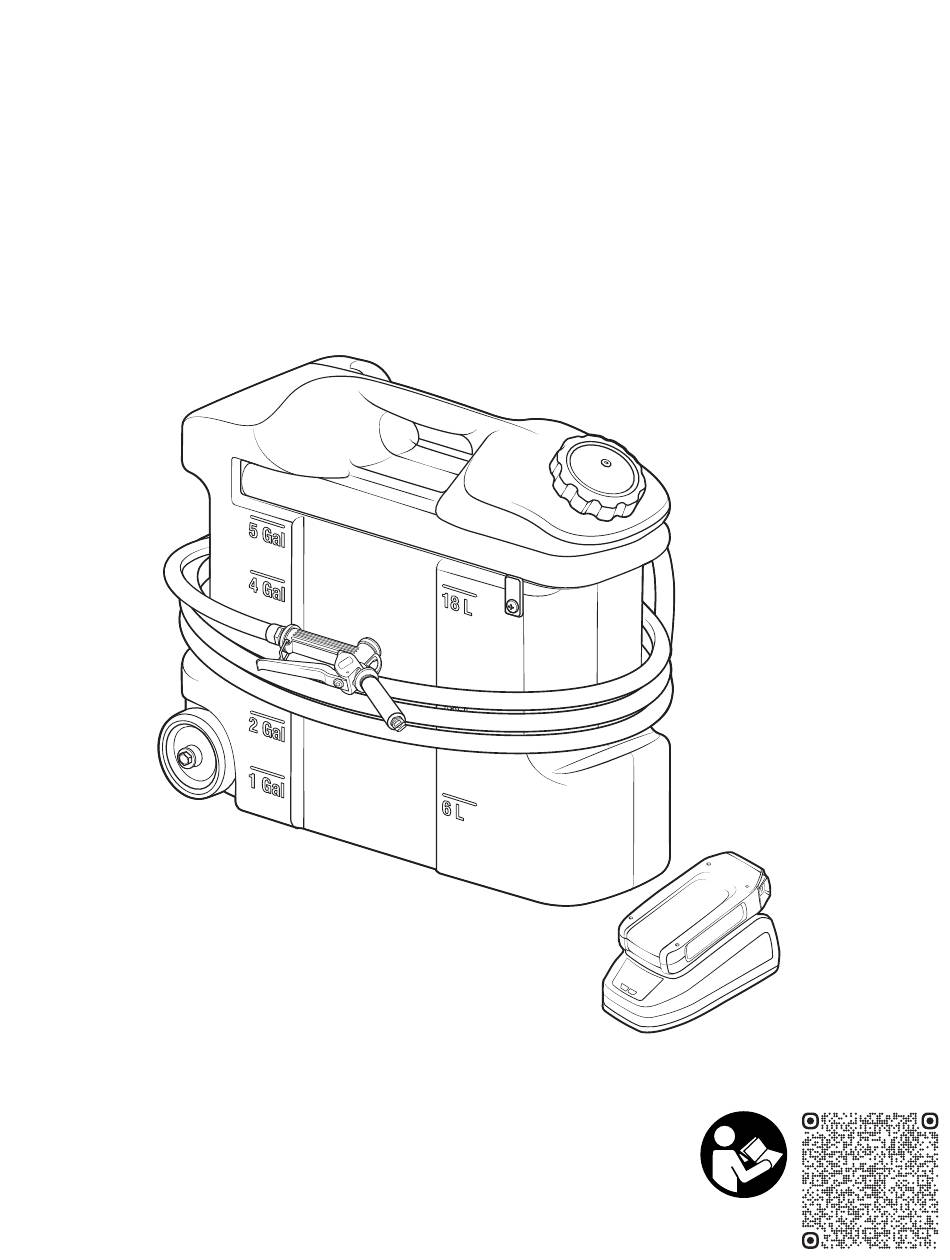

- Page 1 5 Gallon Battery Powered Foam Unit Service Manual FI-BP-5N READ ALL INSTRUCTIONS BEFORE USING OR SERVICING THIS UNIT. KEEP THIS MANUAL IN A LOCATION THAT IS READILY AVAILABLE TO USERS AND SERVICE TECHNICIANS. Scan this code for English (Original Instructions)
- Page 2 When not in use, store unit indoors in a cool, dry location. Keep unit away from unauthorized users. To prevent premature battery failure, do not store battery in a depleted state for long periods of time. Model: FI-BP-5N V20240325 • Page 2 of 13...
-
Page 3: Protect The Environment
Protect the Environment Please dispose of packaging materials, old machine components, and hazardous fluids in an environmentally safe way according to local waste disposal regulations Model: FI-BP-5N V20240325 • Page 3 of 13... - Page 4 • Crescent wrench (2x) • #2 Phillips head screwdriver • 1/ 4 in. (7 mm) hex bit • #3 Phillips head screwdriver • Flat head screwdriver • Hose cutters • Thread seal tape • Knife Model: FI-BP-5N V20240325 • Page 4 of 13...
- Page 5 • A faulty pump or compressor may need to be replaced. Battery/charger fault light is • Refer to the separate manuals supplied with the battery and charger for more flashing information regarding indicator and fault lights. Model: FI-BP-5N V20240325 • Page 5 of 13...
-
Page 6: Tank Assembly
Wheel - polypro - for CST5SS and 9 CST5-WHL CST5SS-L Flat washer for 3/8-16 bolt - 10 FW3816 stainless - 0.41 in. id x 0.88 in. od x 0.05 in. thk CSTA-5WHL Model: FI-BP-5N V20240325 • Page 6 of 13... -
Page 7: Back Plate Assembly
Flat washer for #8 screw - 14 FW8 stainless - 0.17 in. id x 0.63 in. od x 0.07 in. thk ⅜ in. blue hose - hybrid TPE - 15 H38BL-F available per ft. Model: FI-BP-5N V20240325 • Page 7 of 13... - Page 8 Lithium ion battery - 24V 4Ah Lithium ion battery charger - 9 BLI-24V-CHRGR 24V - includes NA power cord Note: Refer to battery and charger user manuals for more information. *not included with backplate assembly Model: FI-BP-5N V20240325 • Page 8 of 13...
- Page 9 Stainless hose barb ¼ MPT x 1/ 4 barb Needle valve - ¼ in. NPT - 7 NV14 includes black knob 1/ 4 in. male NPT muffler - 8 MFLRPE14 polyethylene PSHA-BP NVA-NV14-BP Model: FI-BP-5N V20240325 • Page 9 of 13...
- Page 10 24 VDC electric air compressor 4 AC24VDC-1.4-MLX 1.4 CFM open flow - 80 psi max - includes Molex connector 1/ 4 in. blue hose - hybrid TPE - 5 H14BL-F available per ft. ACA-AC24VDC-1.4 Model: FI-BP-5N V20240325 • Page 10 of 13...
- Page 11 In-line strainer - ⅜ barb - EPDM 2 STR38-IL gasket - 20 mesh SS - black bowl Stainless screw band clamp for 3 SSC38 ⅜ in. hose 4 HBSS1238 Stainless hose barb ½ MPT x ⅜ barb SCTNA-PF-BP-TNK5 Model: FI-BP-5N V20240325 • Page 11 of 13...
-
Page 12: Hose Assembly
2 SSC38 Stainless screw band clamp for 3/8 in. hose 3/8 in. blue* hose - hybrid TPE - available 3 H38BL-F per ft. * Additional colors available, see datasheet for options. HA38BL-12 Model: FI-BP-5N V20240325 • Page 12 of 13... - Page 13 - gray handle with red clip - 13 PSG12 316SS internal spring - includes 2x o-ring 14 HBSS1238 Stainless hose barb ½ MPT x 3/8 barb Stainless screw band clamp for 3/8 in. 15 SSC38 hose Model: FI-BP-5N V20240325 • Page 13 of 13...
