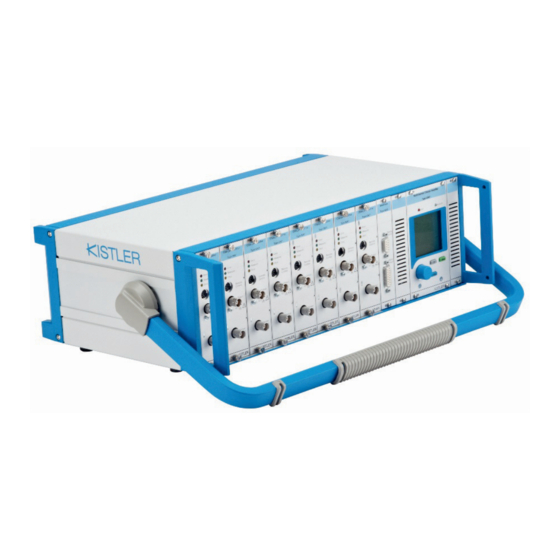

Summary of Contents for Kistler 5080A Series

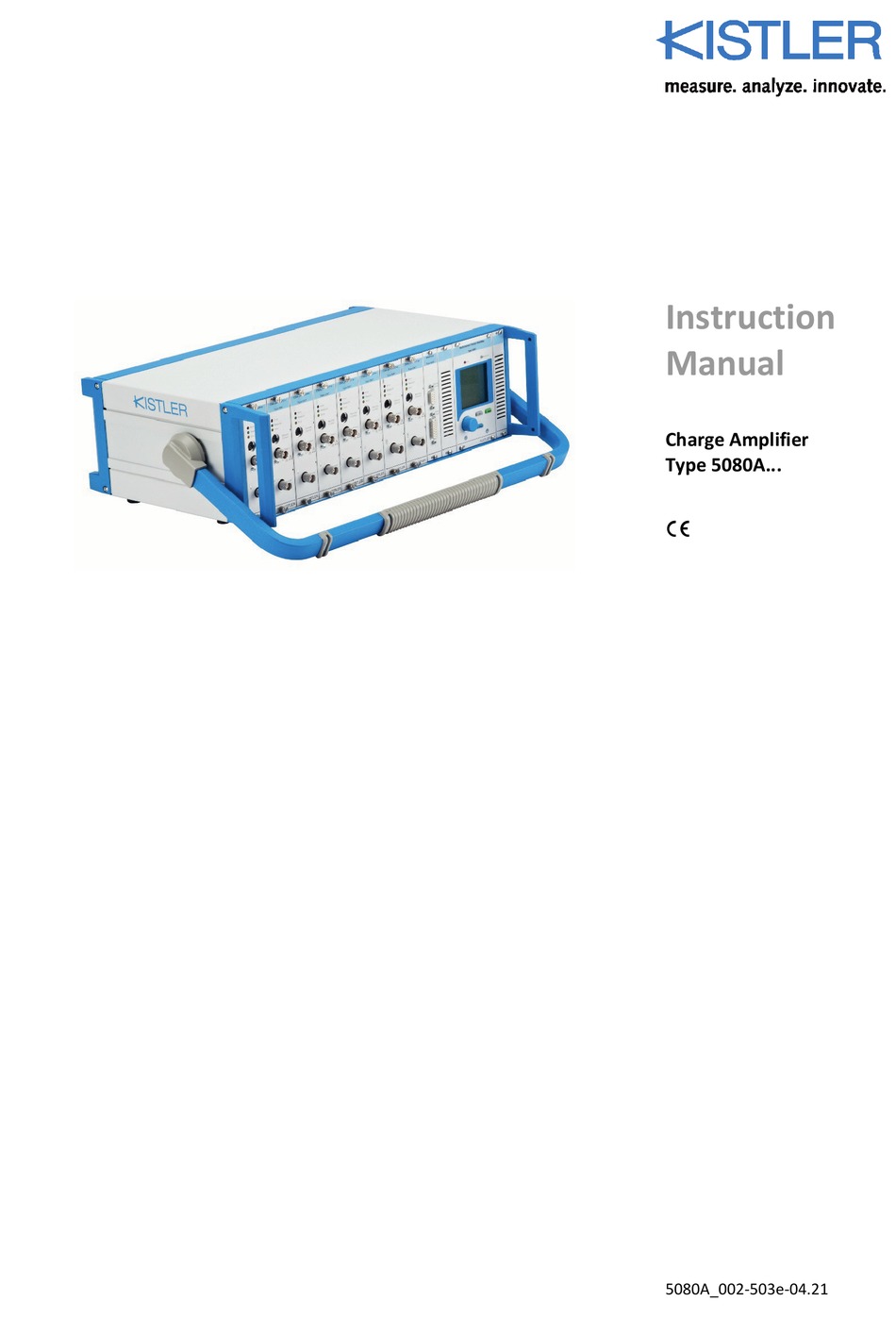

  • Page 1 Instruction Manual Charge Amplifier Type 5080A... ä 5080A_002-503e-04.21...
  • Page 3 Information in this document is subject to change without notice. Kistler reserves the right to change or improve its products and make changes in the content without obligation to notify any person or organization of such changes or improvements.

  • Page 4: Table Of Contents

    Charge Amplifier, Type 5080A... Content For your Safety ........................6 Unpack ..........................7 Transportation and Storage ....................7 Electromagnetic Compatibility (EMC) ................... 8 Tips for Using this Manual ....................9 Instrument Versions ......................10 Accessories Included ......................11 Optional Accessories ......................11 Manual Nomenclature ......................
  • Page 5 Content 4.6.2.3s Application: 'General Force' vs 'Wheel Force' ............48 4.6.2.4 Signals on Analog Output in 'General Force' Application ........49 4.6.2.5 Signals on Analog Output in 'Wheel Force' Application ........49 Remote Control and Triggering ................... 50 Software ..........................51 Contrast Setting ........................
  • Page 6 Causes of Drift ........................99 Testing and Calibration ....................101 8.3.1 Instrument Test ........................ 101 8.3.2 Calibration ........................101 8.3.3 Kistler Calibration Service ....................102 Loading New Firmware ....................102 Changing Fuses ........................ 103 Remote Control Connection ..................... 104 RS-232C Cable ......................... 105 Charge Amplifier Transfer Function ..................
  • Page 7 By choosing this quality Kistler product you have opted for an instrument distinguished by technical innovation precision and long life. To the extent permitted by law Kistler does not accept any liability if this instruction manual is not followed or products other than those listed under Accessories are used.

  • Page 8: For Your Safety

    If safe operation is no longer guaranteed as a result of the reasons listed above, the instrument must be returned immediately to the Kistler distributor for repair. When opening covers or removing parts, except where this is possible by hand, live parts may be exposed if the device remains connected.

  • Page 9: Unpack

    Kistler distributor. Before you get started, please check that your Charge Amplifier package includes the items listed in section 2.7. If any parts are missing, contact your Kistler distributor immediately. 2.3 Transportation and Storage If the instrument is to be transported or stored for a...

  • Page 10: Electromagnetic Compatibility (Emc)

    Charge Amplifier, Type 5080A... 2.4 Electromagnetic Compatibility (EMC) The Charge Amplifier is CE-compliant. It complies with safety requirements according to EN 61010-1 as well as requirements for electromagnetic compatibility according to EN 61326-1 (class A and class B). The EMC specification tests were fulfilled with and without signal ground connection...

  • Page 11: Tips For Using This Manual

    If you lose the instruction manual, please contact your Kistler distributor and ask them for a replacement. Equipment modifications (conversions, upgrades etc.) usually also result in amendments to the instruction manual. In this case, contact your Kistler distributor for updating facilities for your documentation. 5080A_002-503e-04.21 Page 9...

  • Page 12: Instrument Versions

    Charge Amplifier, Type 5080A... 2.6 Instrument Versions The complete type designation of the multichannel amplifier consists of the basic designation Type 5080A... and seven additional digits. The following key shows the instrument versions available: Page 10 5080A_002-503e-04.21...

  • Page 13: Accessories Included

    Important Guidelines 2.7 Accessories Included Charge Amplifier Type 5080A... with  Rack with Power supply  LCD-Unit  Interface Type 5245  Country-specific power cord  USB connecting cable Type A to B; length 1,8 m Art. no. 5.590.303  Instruction manual and CD-ROM with USB driver ...
  • Page 14 Charge Amplifier, Type 5080A... Fig. 1: RS-232C interface cable Type 1200A27 Fig. 2: Connecting cable Type 1700A111A2 Fig. 3: Inductive proximity switch Type 2233B Page 12 5080A_002-503e-04.21...

  • Page 15: Manual Nomenclature

    Important Guidelines 2.9 Manual Nomenclature Below is a key to the indications and abbreviations used in this handbook along with explanatory notes on the meaning of special typefaces. Abbreviation Definition Full Scale = full scale value M.U. Mechanical Unit = Mechanical unit according to sensor type used Pressure→...

  • Page 16: Units Of Measure

    Charge Amplifier, Type 5080A... 2.10 Units of Measure Units of measure are used to assign a value to physical quantities. A system of units is a set of rules which dictates how the unit of measure of every quantity used in natural science and technology is determined in a consistent manner.

  • Page 17: Piezoelectric Measurement Concept

    Important Guidelines For the measurement of mechanical and electrical quanti- ties the Charge Amplifier supports the following units: Quantity Set Unit SI Unit Force 1 kN 1 MN 1 grf –3 9,80710 1 kgf 9,807 N 1 lbf 4,448 N Pressure 1 bar 1 mbar...
  • Page 18 Polarity As defined by Kistler, an increase in pressure at the sensor elements produces a negative charge. The Charge Amplifier inverts the sensor signal and in this case generates a positive read-out and output voltage.
  • Page 19 Important Guidelines In case the charge exceeds at least 10-times the selected as full scale value an unacceptably high voltage can be generated. The magnitude of the voltage will depend on the charge fed in, the total internal capacitance (sensor and cable capacitance) and the range capacitor.
  • Page 20 Charge Amplifier, Type 5080A... Measuring mode: DC (Long) x(t) x(t) x(t) Measuring mode: AC (Short, Medium) x(t) x(t) x(t) Page 18 5080A_002-503e-04.21...

  • Page 21: Drift Compensation Of Piezoelectric Amplifier Type 5080A

    The standard operating mode for cylinder pressure measurements is Kistler's "Drift Compensation". Any drift that occurs is continuously eliminated • using a time constant ('Short') when the engine is stopped or running at under 100 1/min •...

  • Page 22: Disposal Instruments For Electrical And Electronic Equipment

    Do not discard old electronic instruments in municipal trash. For disposal at end of life, please return this product to an authorized local electronic waste disposal service or contact the nearest Kistler sales office for return instructions. Page 20 5080A_002-503e-04.21...
  • Page 23 Functional Description Functional Description The Charge Amplifier is operated from the power line and receives the charge from the piezoelectric sensor and converts it into a proportional voltage. The electronic system provides clear and simple operating facilities for the instrument enabling sensitivity, measuring range, filter characteristics etc.

  • Page 24: Block Diagram

    Charge Amplifier, Type 5080A... 3.1 Block Diagram Remote Control TEDS ADC TEDSDet SPI1/CS EEPROM5 Detection ADC for cycle detection and drco 2kx8 TEDS /Low Imp on 1-Wire ADC0 DrcoOS Interf ace TEDS Com on ADC0 Output Error SPI1/CS ADC for overload detection Drco Measure Measure...

  • Page 25: 6-Component Force-Moment Measurement

    An analog 6-component summing calculator (Type 5245) is standard in this multi channel charge amplifier. This summing calculator together with Kistler multicomponent dynamometers can calculate in real time the three components of the resulting force, as well as the three components of the resulting moment vector.

  • Page 26: Amplifier Unit

    Charge Amplifier, Type 5080A... 3.3 Amplifier Unit 'Charge' Input The input stage consists of a high gain, high insulating operational amplifier with high insulating range capacitors as negative feedback. The charge fed in is converted into a proportional voltage. In most cases, the adjacent approximation formula will be adequate for calculating the voltage signal.

  • Page 27: Control Unit

    Functional Description 'Voltage' Input (Optional) Piezotron sensors can be connected directly to the voltage input, in which the 'PIEZOTRON' mode must be activated. This switches in the 1 …15 mA current source to supply the Piezotron. The capacitor C converts the voltage present at the input to a charge in accordance with the −...

  • Page 28: Power Supply Unit

    5.590.303 is scope of delivery and can be used for the connection between PC and Charge Amplifier. Optionally it is possible to purchase lockable USB-cables at Kistler (Type 1200A127AL2 (l = 2 m) or Type 1200A127AL5 (l = 5 m)). The USB driver will be supplied on CD-ROM for installation under Microsoft Windows and is also available on the Kistler webpage.

  • Page 29: The Measuring Chain

    Functional Description 3.6 The Measuring Chain A typical measuring chain consists of a piezoelectric sensor (with charge or voltage output), the sensor cable and the Charge Amplifier along with a data acquisition and analysis system. Piezoelectric Sensors Connecting Cable Charge Amplifier Type 5080A 5080A_002-503e-04.21 Page 27...

  • Page 30: Multi-Component Force Measurements With Dynamometers

    Charge Amplifier, Type 5080A... 3.7 Multi-Component Force Measurements with Dynamometers 3.7.1 3-Component-Force Measurement with 3-Channel Charge Amplifier and a Stationary Dynamometer 3.7.2 4-Component-Force-Moment Measurement with 4-Channel Charge Amplifier and a Stationary Dynamometer Page 28 5080A_002-503e-04.21...

  • Page 31: 6-Component-Force-Moment Measurement With 8-Channel Charge Amplifier And A Stationary Dynamometer

    Functional Description 3.7.3 6-Component-Force-Moment Measurement with 8-Channel Charge Amplifier and a Stationary Dynamometer Measured Value Processing The analogue summing calculator on interface Type 5245 calculates F in real time mode according the formulas below. However, DynoWare can also be used to calculate the six components from the eight output signals (Ch1 …...

  • Page 32: (6-) Component-Force-Moment Measurement With 8-Channel Charge Amplifier And A Measuring Hub

    Charge Amplifier, Type 5080A... 3.7.4 5- /(6-) Component-Force-Moment Measurement with 8-Channel Charge Amplifier and a Measuring Hub Measured Value Processing The analogue summing calculator on interface Type 5245 calculates F , (M ), M in real time mode according the formulas below. Formulae for calculations ⋅...

  • Page 33: User Interface

    Assembly, Installation and Operation Assembly, Installation and Operation The instrument must be operated only under the specified operating conditions (see section 7). It must be protected against excessive dust as well as mechanical stress (shock, vibration). High atmospheric humidity, which can lead to condensation as a result of changes in temperature, must be avoided.

  • Page 34: Inserts And Connections

    Charge Amplifier, Type 5080A... The Charge Amplifier is controlled with the following two buttons. Definable function button (see section 6.5) [Meas] This button is used to manually start and stop the measuring cycle (see also section 6.6) 4.2 Inserts and Connections The electrical connections are at the back of the instrument case.
  • Page 35 Assembly, Installation and Operation Type 5067A0 BNC / Charge Input Control LED’s 'Remote Control' 'Voltage Output 10 Ω' Grounding screw M2,5x5 'Charge' Input BNC Fig. 7: Amplifier module Type 5067A0  Type 5067A2 BNC / Charge or Voltage Piezotron Input Control LED’s 'Remote Control' 'Voltage Output 10 Ω'...
  • Page 36 Charge Amplifier, Type 5080A... Type 5245 Interface 'Remote Control' 'Analog Output' / 'Summed Output' Fig. 9: Interface Type 5245 Type 5435A… Cable Adapter 'Charge Input' Fischer 9-pol neg. 'Charge Output' Cables BNC pos. Fig. 10: Cable adapter Type 5435A… Page 34 5080A_002-503e-04.21...

  • Page 37: Inserting Amplifier Modules And Interfaces

    Assembly, Installation and Operation 4.3 Inserting Amplifier Modules and Interfaces Control Panel Cable Adapter Interface Slot 8 Slot 7 Slot 6 Slot 5 Slot 4 Slot 3 Slot 2 Slot 1 • The amplifier must be switched off (power switch to 0) prior to inserting modules into slot to avoid a damaged device •...

  • Page 38: Connecting The Instrument

    Charge Amplifier, Type 5080A... 4.4 Connecting the Instrument Switch off the Charge Amplifier (power switch to 0) before connecting the cables. To prevent damage to the sensitive input stage, short-circuit the sensor and cable beforehand to discharge them. Use a short piece of wire or a screwdriver to do this by short-circuiting the BNC- connector to the BNC-connector housing.

  • Page 39: Emc And Ground Loops

    Assembly, Installation and Operation The outgoing cables of 'cable adapter' Type 5435A… must be connected to the 'Sensor Charge' connector on the charge amplifier modules. Never connect it to 'Output 10 Ω'. Make sure that the number of the cable coincident with number of charge amplifier module (i.e.
  • Page 40 Charge Amplifier, Type 5080A... 'Internal CAN' Serial Interface The serial interface connector 'Internal CAN' on the backside of the amplifier Type 5080A… is for internal use only. 'Remote Control' Input on Inserts Type 5067A0 / 5067A2 The plug for the 'Remote Control' input is included in the scope of delivery and must be fitted before it can be connected (see section 4.7, 8.6).

  • Page 41: Instrument Operation

    Assembly, Installation and Operation 4.5 Instrument Operation 4.5.1 Display and Main Menu Measuring range  see section 5.7 Mechanical unit  see section 5.8 Actuate output  see section 5.5 Additional menus  see section 6 Sensor sensitivity value  see section 5.9 Sensor sensitivity unit ...

  • Page 42: Menu Operation

    Charge Amplifier, Type 5080A... 4.5.2 Menu Operation When the instrument is switched on, the cursor is always placed on the top right side. The individual fields/symbols can be selected by turning the control knob. The appropriate menu windows can be opened by pressing the control knob. If only the two icons far left and at bottom far right can be selected, this means that the adjustment facilities are locked (see section 5.2).

  • Page 43: Step By Step Measuring Guidance

    Assembly, Installation and Operation 4.6 Step by Step Measuring Guidance The step-by-step instructions described below should quickly make you familiar with carrying out force measurement. 4.6.1 3-Component-Force Measurement The following example shows the setup procedure for a measuring chain of a piezoelectric force sensor with Charge Amplifier Type 5080A…...
  • Page 44 Charge Amplifier, Type 5080A... After the self test, the instrument displays the adjacent main menu (basic instrument setting with English as the operating language). If the menu is not or only partly visible on screen, adjust the contrast.  Select the adjacent position with the control knob and then press this knob.
  • Page 45  The prefix is set permanently to minus. Since piezoelec- tric sensors from Kistler normally produce a negative charge for an increase in force, a positive change in voltage occurs at the voltage output of the Charge Amplifier.
  • Page 46 Charge Amplifier, Type 5080A... Selecting the measuring range according to the maximum force expected.  Select the 'RANGE FS' menu item with the control knob. Pressing the control knob once produces the adjustment menu (see section 5.7).  The numerical value in the middle is underlined and can be altered by turning the control knob.
  • Page 47 Assembly, Installation and Operation The values for measuring range, sensor sensitivity and filtration must also be set for Channel 2 by switching the display using the channel selection menu (see chapter 4.6.1). Alternatively, using the same settings, the copy function for channels can be used (see chapter 6.8.1). The values for measuring range, sensor sensitivity and filtration must now also be set for Channel 3 by switching the display using the channel selection menu (see chapter...

  • Page 48: Signals On Analog Output

    Charge Amplifier, Type 5080A... 4.6.1.1 Signals on Analog Output Signals can be taken from the analog output of the interface (Type 5245) as follows: It is also possible to take these signals form the Output- BNC-connector on each charge amplifier module. For certain applications this will be first choice as the frequency range is larger and there is less noise on this output.

  • Page 49: 6-Component-Force Moment Measurements

    Assembly, Installation and Operation 4.6.2 6-Component-Force Moment Measurements The values for measuring range, sensor sensitivity and filtration must be set for Channel 1 … Channel 8 as shown in chapter 4.6.1 by switching the display using the channel selection menu (see chapter 5.3). Alternatively, using the same settings, the copy function for channels can be used (see chapter 6.8.1).

  • Page 50: Correction Factors

    Charge Amplifier, Type 5080A... 4.6.2.2 Correction Factors Correction factors kM , kM , kM : These factors are determined through a special calibration and are not available by default. See section 5.4.3. 4.6.2.3 Application: 'General Force' vs 'Wheel Force' Application: The x, y, z system of coordinates of the sensor is variously defined depending on which application 'Wheel Force' or 'General Force' is selected.

  • Page 51: Signals On Analog Output In 'General Force' Application

    Assembly, Installation and Operation 4.6.2.4 Signals on Analog Output in 'General Force' Application Signals can be taken from the analog output of the interface (Type 5245) as follows: x1+2 x3+4 y1+4 y2+3 ∑F ∑F ∑F ∑M ∑M ∑M The formulas of this summation are shown in chapter 3.7. It is also possible to take the uncalculated signals (Ch 1 …...

  • Page 52: Remote Control And Triggering

    Charge Amplifier, Type 5080A... The formulas of this summation are shown in chapter 3.7. It is also possible to take the uncalculated signals (Ch 1 … Ch 8) from the Output-BNC-connector on each charge amplifier module. 4.7 Remote Control and Triggering Via MiniDIN It is possible to control (RESET / MEASURE) each channel individually via the MiniDIN connector on each channel.

  • Page 53: Software

     Reading in and displaying the measured data You can download the latest software release onto your PC from our website www.kistler.com. For the installation (see section 8.4), select the Setup.exe file on the relevant disk or directory – double click and the installation process will run practically automatically.

  • Page 54: Contrast Setting

    Charge Amplifier, Type 5080A... Instrument Operation Adjustable parameters and the functions supported by the instrument are described below. 5.1 Contrast Setting In some lighting conditions it may be necessary to adjust the contrast of the liquid crystal display. Do this by selecting the relevant icon with the blue control knob and press [Enter].

  • Page 55: Summation

    Instrument Operation 5.4 Summation If all eight slots are occupied by charge amplifier modules , and M can be calculated in real time mode. This setting is called "Summation". 5.4.1 Scaling The following points must be noted with regard to summation: ...
  • Page 56 Charge Amplifier, Type 5080A... Greater Value of a and b [mm] [mm] 0,05 >40 0,075 >60 >80 0,15 >120 >160 0,25 >200 >400 1 000 >800 1 000 1 250 1,25 Scaling factors are calculated as follows: ⋅ Range  ...

  • Page 57: Sensor Distances

    Instrument Operation Scale ⋅ ⋅ Range Σ Scale ⋅ ⋅ Range Σ Scale ⋅ Range ⋅ m · Σ ⋅ ⋅ 5.4.2 Sensor Distances To enable the summation card to carry out correct summation of the input signals, the following parameters must be entered in the summation view: Sensor distances a and b: Enter half the sensor distance in the dynamometer in the x-axis (Value a) and in the y-axis...

  • Page 58: General Force' Vs. 'Wheel Force

    Charge Amplifier, Type 5080A... 5.4.4 'General Force' vs. 'Wheel Force' Application: The x, y, z system of coordinates of the sensor is variously defined depending on which application 'Wheel Force' or 'General Force' is selected (see section 3.7). 5.5 Actuate Output With the ON / OFF function it is possible to enable / disable a channel.

  • Page 59: Stepwise Range Setting

    Instrument Operation The measuring range is adjustable in steps and variable. 5.7.1 Stepwise Range Setting Stepwise means that the range can be varied in steps of e.g. 100.0, 200.0, 500.0, 1 000, 2 000 etc. RANGE FS  STEPS VARIABLE ...

  • Page 60: Sensor Sensitivity Value

    The sensitivity value has to be taken from the calibration certificate according to the applied force on the sensor. See chapter 4.6.1 to see where these values appear on the calibration sheet of a Kistler sensor. Page 58 5080A_002-503e-04.21...

  • Page 61: Sensor Sensitivity Unit

    Instrument Operation 5.10 Sensor Sensitivity Unit To set the unit of sensitivity, select the appropriate field and [Enter]. First, the electrical unit E.U. must be selected according to the sensor input used. The metric units are listed below: Switching to voltage or Piezotron (mV/M.U.) is only possi- ble when a dual-mode amplifier module is inserted.

  • Page 62: Display Of Measuring Value

    Charge Amplifier, Type 5080A... 5.11 Display of Measuring Value The measuring value is displayed in the main menu. Further display options are available by using the [F]-key function. For further information see sections 6.5 and 7.7. 5.12 High-Pass Filter The high-pass filter is defined by a time constant which is dependent of the force range.

  • Page 63: Voltage Output Scaling

    Instrument Operation 5.14 Voltage Output Scaling Select the appropriate field with blue control knob and press [Enter] to scale the range of the voltage output. The parameters for the voltage output range can be set as shown. The output sensitivity shown in the display is calculated from the measuring range set in M.U.

  • Page 64: Trigger Display

    Charge Amplifier, Type 5080A... 5.16 Trigger Display An icon shows the status of the digital trigger input on the summation card, in which the control system must be switched to remote to activate the trigger input. The status of the trigger input is indicated as follows: Trigger inactive (switch open) Trigger active (switch closed) The TRIGGER function is described in section 6.6.

  • Page 65: Demo Mode

    Additional Menus Additional Menus Additional menu and setting options are described as follows: Demo Mode A demonstration mode can be activated for training purposes. This allows transfer of the display data to a PC. A special demo program is required for this. Activating the demo mode: For operation in demo mode, baud rate should be set to 115 200.

  • Page 66: Display Of Instrument Information

    Charge Amplifier, Type 5080A... 6.3 Display of Instrument Information This function makes it easy for the user to check which hardware options are installed and which software version is loaded. Displaying the instrument information: 6.4 Communication RS-232C / USB Interface Baud rate setting: Default settings for the baud rate is 9 600.

  • Page 67: Control Measuring Cycle

    Additional Menus NOT USED: Pressing the [F]-key does not change anything. SHOW SIGNAL: The measuring value will be displayed by pressing the [F]-key. NEXT CHANNEL: used for paging through the display. Successive channels are displayed with the [F]-key. TRIGGER: Simulates the changing of the trigger input into the active and passive states.
  • Page 68 Charge Amplifier, Type 5080A... In combination with the REMOTE control function it is possible to use either a TRIGGER or PARAM SET function. TRIGGER: The TRIGGER function has to be chosen when the RS-232C interface (see chapter 6.6.2) is used to control amplifier modules.

  • Page 69: Use Of Minidin Interface As A Remote Control

    Additional Menus 6.6.1 Use of MiniDIN Interface as a Remote Control As described in chapter 4.7 it is possible to control (RESET/MEASURE) each amplifier module individually via the MiniDIN interface on each module. The following steps have to be carried out: 6.6.2 Use of RS-232C Interface on Interface Type 5245 to Trigger As described in chapter 4.7 it is possible to trigger all amplifier modules at the same time via the RS-232C...

  • Page 70: Use Of Rs-232C Interface On Interface Type 5245 As A Remote Control

    Charge Amplifier, Type 5080A... 6.6.3 Use of RS-232C Interface on Interface Type 5245 as a Remote Control As descripted in chapter 4.7 it is possible to control (RESET/MEASURE) all amplifier modules at the same time via the RS-232C interface placed on interface Type 5245. The following steps have to be carried out: This control can be executed by either a programmable logical controller (PLC) or a switch.

  • Page 71: Storing, Recalling And Clearing Parameter Sets

    Additional Menus 6.8 Storing, Recalling and Clearing Parameter Sets 6.8.1 Channel Copying The copying function simplifies the setting of several channels. When the first channel settings have been entered, these settings can be used for other channels too. MENU  SETTINGS  CHANNELS COPY TO…...

  • Page 72: Storing A Parameter Set

    Charge Amplifier, Type 5080A... 6.8.2 Storing a Parameter Set Up to 9 different sets of parameters can be stored in the instrument. The settings for all existing channels and the summation card are stored. Saving a parameter set (e.g. in memory location2): MENU ...

  • Page 73: Recalling A Parameter Set

    Additional Menus 6.8.3 Recalling a Parameter Set Recalling a parameter set (e.g. from memory location 3): MENU  SETTINGS  RECALL   #1  #2 …  Choose favored Parameter Set with the control knob and recall a previously saved set of parameters with [Enter]. 5080A_002-503e-04.21 Page 71...

  • Page 74: Clearing A Parameter Set

    Charge Amplifier, Type 5080A... 6.8.4 Clearing a Parameter Set Clearing a parameter set (e.g. from memory location 1): MENU  SETTINGS  CLEAR   #1  #2 …  Choose Parameter Set with the control knob and clear a previously saved set of parameters with [Enter].

  • Page 75: Factory Defaults

    Additional Menus 6.9 Factory Defaults It is possible to reset this charge amplifier to the factory default settings. MENU  SETTINGS  FACTORY DEFAULTS  All settings will be deleted. 6.10 Signal display With this function the measuring value can be displayed. 5080A_002-503e-04.21 Page 73...

  • Page 76: Piezotron

    Charge Amplifier, Type 5080A... 6.11 Piezotron This menu can only be selected if a Dual-Mode module Type 5067A2 is inserted into the corresponding channel (slot). The current source (1 … 15 mA) hast to be defined when using a Piezotron sensor. 6.12 Messages This section explains the messages which can appear on the display.

  • Page 77: Commands For Rs-232C Interface

    Additional Menus 6.13 Commands for RS-232C Interface For compatibility reasons, the Type 5017/5019/5070A commands have been retained. For extended instruction record see section 6.14. The protocol structure is defined in the syntax diagrams below. Data transfer takes place as a simple ASCII protocol with ...
  • Page 78 Charge Amplifier, Type 5080A... Control Commands Select channel n = 1 ... 8 Activate output n = 0 → switch off n = 1 → switch on Actuate Measure n = 0 → inactive (formerly Reset) n = 1 → active (formerly Operate) Query error code CEnn nn (2 characters decimal coded)
  • Page 79 Additional Menus SCn.nnnE±e Set scale voltage output Range: 1.000E-5 ... 9.999E+8, Example: 100 M.U./V → SC1.00E+2 SCn.nn Set scale voltage output Range: 0,01 ... 9 999 Example: 100 M.U./V → SC100 No function Local control n = 0 → unlocked n = 1 →...

  • Page 80: Extended Instruction Record Of The Rs-232C Interface

    Charge Amplifier, Type 5080A... 6.14 Extended Instruction Record of the RS-232C Interface The protocol structure is defined in the syntax diagrams below. Data transfer takes place as a simple ASCII protocol with:  Command code: Colon followed by 1 ... 3 digits ...
  • Page 81 Additional Menus Measuring range (FS) 1 (float) 1.000E-4 ... 9.999E+8 Sensitivity 1 (float) 1.000E-2 ... 9.999E+3 Low Pass Filter 1. Cut-off frequency f (–3 dB) in (Hz) 1; 2; 3; 4; 6; 22; 2. Exponent of the cut-off frequency 1 = *10 2 = *10 …...
  • Page 82 Charge Amplifier, Type 5080A... Set Mechanical Units for Sensitivity force units: (according to analog input mode 20 = pC/N selected) 21 = pC/kN 23 = pC/kgf Input = Charge: pC/… 24 = pC/lbf Input = Piezotron: mV/… Input = Voltage: mV/… torque units: 30 = pC/N·m 32 = pC/N·cm...
  • Page 83 Additional Menus 3 = kM 4 = kM 5 = kM 2. Value Coordinate system: 1 = General force 2 = Wheel force Value a, Value b in 1/10 mm Values kM in 1/1 000 mm Event signalling 1. Event Code as defined in event manager table.

  • Page 84: Event Messages

    Charge Amplifier, Type 5080A... Status code description of the handshake signal: Code Function Comment unknown command Sent, if command is not available for this measure card parameter out of range Sent, if parameter is out of range wrong number of parameters Return code sent from CPU board memory overflow Address of EEPROM on the measure card is out of...

  • Page 85: Event Messenger From Measure Card

    Additional Menus 6.15.2 Event Messenger from Measure Card Number Event Codes Charge Amp. Overflow Input offset out of range wrong calibration data remote measure µController received illegible data from TEDS µController received invalid sensitivity from TEDS wrong MID data non supported TEDS template Drift compensation working dependent parameter changed RESET MEASURE compensation fails...

  • Page 86: Charge Input

    Charge Amplifier, Type 5080A... Technical Data 7.1 Charge Input Connector type BNC neg. Measuring range FS ±2 ... 2 200 000 Measuring error (0 … 50°C) FS ≥2 … <10 pC <±2 FS ≥10 … <100 pC <±0,6 FS ≥100 … ≤2 200 000 pC <±0,3 Drift, measuring mode 'DC (Long)' pC/s...

  • Page 87: Voltage Output On Charge Amplifier/Dual Mode Module Type 5067

    Technical Data 7.3 Voltage Output on Charge Amplifier/Dual Mode Module Type 5067 Connector type BNC neg Output range FS ±10 / –8…10 Output current 0 … ±2 Output impedance Ω ≈10 Measure-jump compensated  Measure jump (Long)  Correction time, incl. <15 reed-relay delay time Offset error (Reset)

  • Page 88: Frequency Response On Charge Amplifier/Dual-Mode Module (Type 5067A0/5067A2)

    Charge Amplifier, Type 5080A... Frequency Response on Charge Amplifier/Dual-Mode Module (Type 5067A0/5067A2) Measuring mode DC (Long), LP filter off  Frequency range (–3dB) ≈0 ... >200  Group delay µs ≈2 7.4.1 Time Constant (Short / Medium) Time constant for Short / Medium Range FS charge (Voltage) ≥2 pC …...

  • Page 89: Low-Pass Filter

    Technical Data 7.4.4 Low-pass Filter Filter Type Butterworth Order Cut off frequency (–3 dB) 10, 20, 30, 100, 300, 1, 2, 3, 6, 10, 22, 30, 60, 100, (off) Tolerance <±10* * (@6 kHz <±15 %) Low pass filters and delay time of the measure signal from input to output Filter (2 order)
  • Page 90 Charge Amplifier, Type 5080A... Frequency response vs. filter settings / Frequency range 10 Hz … 100 Hz (Signals taken from the amplifier modules Type 5067 directly) Frequency response vs. filter settings / Frequency range 300 Hz … 1 kHz (Signals taken from the amplifier modules Type 5067 directly) Page 88 5080A_002-503e-04.21...
  • Page 91 Technical Data Frequency response vs. filter settings / Frequency range 2 … 10 kHz (Signals taken from the amplifier modules Type 5067 directly) Frequency response vs. filter settings / Frequency range 22 kHz … 100 kHz (Signals taken from the amplifier modules Type 5067 directly) 5080A_002-503e-04.21 Page 89...

  • Page 92: Voltage Output On Summing Calculator Interface (Type 5245)

    Charge Amplifier, Type 5080A... 7.5 Voltage Output on Summing Calculator Interface (Type 5245) 7.5.1 Specifications Without Piezotron Option Connector type D-Sub 15f Analog outputs ∑ Outputs (analog) Output voltage 0 … ±10 Output current 0 … <±2 Output resistance Ω Offset error (RESET) <±4,5 Measuring error (0 …...

  • Page 93: Specifications With Piezotron Option

    Technical Data 7.5.2 Specifications With Piezotron Option Connector type D-Sub 15f Analog outputs ∑ Outputs (analog) Output voltage 0 … ±10 Output current 0 … <±2 Output resistance Ω Offset error (RESET) <±4,5 Measuring error (0 … 50 °C) Charge Mode ...

  • Page 94: Charge Input On Fischer Connector (On Type 5435A

    Charge Amplifier, Type 5080A... 7.6 Charge Input on Fischer Connector (on Type 5435A…) Type 5435A1: Connection Type 5435A2: Connection Type 5435A3: Connection Type 5435A4: Connection Page 92 5080A_002-503e-04.21...

  • Page 95: Refresh Rate Lcd

     Pin 5 (input) /Remote measure  Pin 6 DGND Remote Control Connector Input voltage Kistler Art. No. 5.510.305  logic inactive 3,5 ... 30  logic active V (mA) 0 ... 1 (0 ... 4) Delay time  /Remote measure <15...

  • Page 96: Data Communication

    Charge Amplifier, Type 5080A... 7.10 Data Communication The charge amplifier offers a RS-232C and a USB interface. RS-232C Interface (Galvanically separated) EIA standard RS-232C Connector type D-Sub 9f Pin allocation  Pin 2  Pin 3  Pin 5 Max. cable length at 19 200 bps <10 115 200 bps...

  • Page 97: Power Supply Connection

    Technical Data 7.11 Power Supply Connection Power plug (2P+E, IEC 320C14 protection class I) Supply voltage settable 100 … 240 Supply voltage tolerance <±10 Mains frequency 50 … 60 Consumption ≈95 Voltage between signal max. 40 ground and protective ground DC-Supply (optional) ...

  • Page 98: Environmental Data

    Charge Amplifier, Type 5080A... 7.12 Environmental Data IP-Degree of protection IP40, IEC 60529 °C Temperature range 0 ... 50 min/max temperature °C –10/50 Vibration steadiness <10 (20 Hz ... 2 kHz, duration 16 min., cycle 2 min.) Shock steadiness (1 ms) <200 Housing dimensions ...
  • Page 99 Technical Data 5080A_002-503e-04.21 Page 97...
  • Page 100 Charge Amplifier, Type 5080A... Page 98 5080A_002-503e-04.21...

  • Page 101: Precautions

    Maintenance and Diagnosis Maintenance and Diagnosis Precautions Please comply with the requirements specified in section 2.1. Causes of Drift The slow change in the zero point of the output Output signal signal during the measuring cycle in the 'DC (Long)' measuring mode is called drift.
  • Page 102 Action: First check whether the 'DC (Long)' measuring mode is set. If the problem persists, the cause is due to poor insulation resistance of the range capacitor. To fix this problem, the instrument must be sent in to the Kistler distributor for repair. Cause 2 In this case, the output drifts linearly in the positive or negative direction.

  • Page 103: Testing And Calibration

    As already described above, the Charge Amplifier can also be calibrated with a DC reference voltage source and a calibration capacitor. Calibration with the Kistler precision charge calibrator Type 5357B can provide advantages. You will find further details in this respect in the data sheet or in the instruction manual for this instrument.

  • Page 104: Kistler Calibration Service

    Traceability must be guaranteed. Kistler offers the follow- ing calibration services: Swiss Calibration Service (SCS) Kistler is accredited as an SCS calibration station (Number 049) for the measurands: pressure, force, acceleration and electric charge. In order to ensure traceability and proven measuring accuracy, calibration devices and methods are regularly checked and updated.

  • Page 105: Changing Fuses

    Maintenance and Diagnosis Changing Fuses Electrostatic discharges can destroy electronic compo- nents. The relevant ESD protective measures must be taken when handling electronic assemblies. To replace the fuse 'F1', proceed as follows:  First disconnect the instrument from the supply. ...

  • Page 106: Remote Control Connection

    Charge Amplifier, Type 5080A... 8.6 Remote Control Connection An example of a connection for controlling the measuring cycle, e.g. with a stored program control (SPC). Type 5080 An example of a connection for controlling the measuring cycle, e.g. with switches. Type 5080 To control measure cycle please refer to section 6.6.

  • Page 107: Rs-232C Cable

    Maintenance and Diagnosis 8.7 RS-232C Cable Connection with null-modem cable Type 1200A27 Type 5080A… Legend: TxD = Transmit data RxD = Receive data GND = Signal ground 5080A_002-503e-04.21 Page 105...

  • Page 108: Charge Amplifier Transfer Function

    Charge Amplifier, Type 5080A... 8.8 Charge Amplifier Transfer Function 8.8.1 High-Pass Filter The charge amplifier largely consists of a high gain and highly insulated operational amplifier with the capacitor C connected in negative feedback. As a result of the very high gain, U is reduced almost to zero.
  • Page 109 Maintenance and Diagnosis The frequency response is calculated as follows: ⋅ ⋅ ω ω 2 ⋅ π ⋅ ⋅ ω ω ⋅ ω ⋅ π ϕ − ω ⋅ arctan( A time constant resistor R can be switched in parallel with the range capacitor C concerned (in our example 1 nF).

  • Page 110: Dynoware Type 2825A

    Charge Amplifier, Type 5080A... Appendix DynoWare Type 2825A Kistler DynoWare data acquisition software has been specially adapted for operating charge amplifier Type 5080A... DynoWare is ideal for cutting force measurement and general multicomponent force measurement. 9.1.1 3-Component Force Measurement F...
  • Page 111 Appendix The settings are sent to the charge amplifier by pressing the button "Send Parameters". The baud rate must be the same for both amplifier and DynoWare. The sensitivity data is taken from the calibration certificate. The measuring range must be selected according to the forces occurring.

  • Page 112: 6-Component Force-Torque Measurement F

    Charge Amplifier, Type 5080A... 9.1.2 6-Component Force-Torque Measurement F with 8-Channel Charge Amplifier Type 5080Axx80004 and DynoWare Type 2825A-02 Measured Value Processing The six components F must be calcu- lated from the eight output signals from the charge am- plifier. The data acquisition software DynoWare Type 2825A...
  • Page 113 Appendix Examples of Applications for the Multi-Component Force- Moment Measurement  Measurements of rocket drives  Wheel vertical forces and moments  Measurements on models in a wind tunnel  Force limited vibration tests  Measurements in biomechanics  Test machines in vehicle engineering ...
  • Page 114 Charge Amplifier, Type 5080A... Declaration of Conformity Page 112 5080A_002-503e-04.21...
  • Page 115 Index Index Control knob..........32 Control Measuring Cycle ....... 66 3-Component Measurement ......42 Control unit ........... 25 Copying of a parameter set ......70 Correction factors .......... 49 6-Component Measurement ....23, 48 Data acquisition and analysis system ....27 Accessories Data Communication ........
  • Page 116 Charge Amplifier, Type 5080A... High impedance sensors ........ 15 Ordering key ..........10 Highly insulating cables ........16 Output in general force application ....50 High-pass filter Analog ........87 Output in wheel force application ....50 High-Pass filter Setting ........61 High-Pass Filter ........
  • Page 117 Index Type 5067A0 ..........34 Type 5067A2 ..........34 Safety ............... 6 Type 5235A ........... 35 Scaling of voltage output ........ 62 Type 5245 ............. 35 Select Language ..........41 Selection of channel ........53 Sensitivity Setting ........59, 60 Units of measure ..........

Table of Contents
