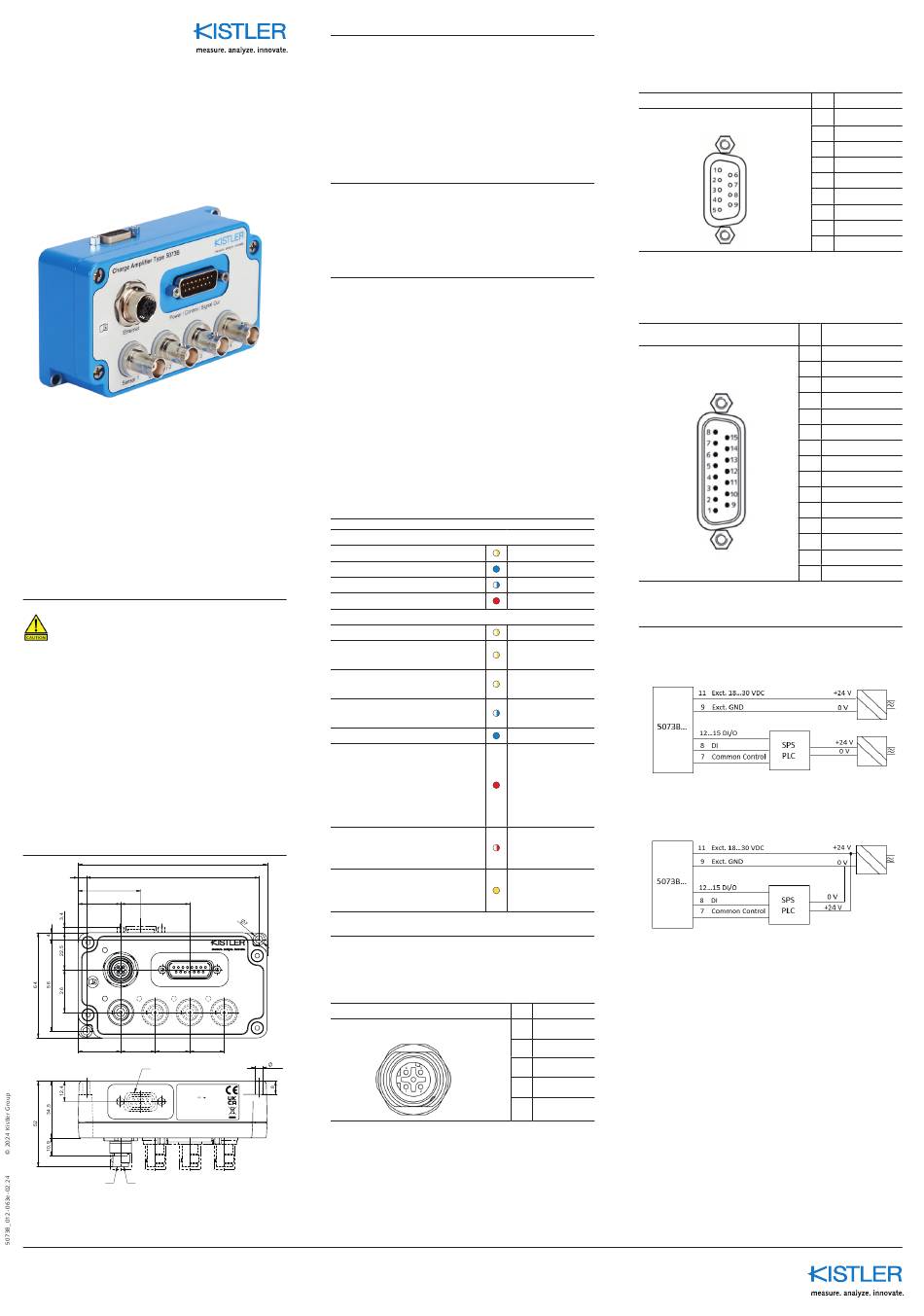

Kistler ICAM-B Quick Start Installation

Quick Start Installation
ICAM-B – Industrial Charge Amplifier for Multi-purpose with
Ethernet
Type 5073B...
Foreword
Information in this document is subject to change without
notice. Kistler reserves the right to change or improve
its products and make changes in the content without
obligation to notify any person or organization of such
changes or improvements.
To the extent permitted by law Kistler does not accept any
liability if this quick start guide is not followed or products
other than those listed under Accessories are used.
©2024 Kistler Group. All rights reserved.
1. General notes
• Do not open the amplifier (danger and loss of
warranty
• Commissioning by specialist staff only
• Comply with product-specific and nationally applicable
safety provisions
• Only perform manipulations with device powered off
• It is imperative to connect the common control (pin 7)
to 0 V to prevent potential damage to the device when
configuring any of the digital I/O pins as output.
• Do not use devices that have been damaged, manipulated,
or stored incorrectly. Please send them to Kistler or its
representatives for repair.
• Keep the plug connections dry and free of dust. When not
in use, cover with protective caps supplied.
2. Dimensions
5073B_1_ / 5073B_2_
115
5 105
38
25,85 42
Charge Amplifier Type 5073B
3
1
4
2
1
9
Ethernet Power / Control / Signal Out
Sensor 1 Sensor 2 Sensor 3
25,85 21 21
optional RS232
Type 5073B111A10
SN 1234567
18 ... 30V
6
1
Kistler Instrumente AG
Winterthur Switzerland
Kistler Instruments Ltd.
RG27 9GR Hook, Hampshire, UK
Made in Switzerland
BNC neg. TNC neg.
1 : 2
1 : 2
5073B41_
Kistler Group
Eulachstraße 22
8408 Winterthur, Switzerland
3. Parametrization
All parameters can be set in different ways:
• Using the web user interface
• By means of OPC UA (licensed feature)
• Through REST-API
• With ManuWare software if optional RS232 interface is
available (5073A compatibility mode)
• With serial commands via the RS232 interface if this
optional interface is available
4. Firmware update
This device allows firmware update by customer using the
web interface. The latest firmware version is listed on the
product website at www.kistler.com.
5. EMC and ground loop
Piezoelectric sensors are usually designed so that one of
the electrodes is connected on the sensor case, allowing
the use of coaxial cables. When the sensor is installed, it is
usually grounded by the metal structure. If the sensor is not
insulated when it is installed, a resultant ground loop could
cause interference.
A low-impedance but also low-inductance connection
between the device case and the sensor (large-area copper
braiding, ribbon cable) produces good results in most cases.
5073B_012-063e-01.24
Furthermore, the sensor may also be installed using
insulation elements to eliminate current flow based on
potential differences or induction.
Please check the user manual for further information about
grounding of 5073B....
6. Status LED
Sensor LED per channel
Initialization
Operate / Measure
Reset, waiting for trigger
Overload
Device LED
Device boot/ initialization
Network connected, but initializing
/ waiting for IP-address assignment
MQTT configured broker not
available / no response
Waiting for internal/external action/
factory reset button pressed
Device state "ok"
Device state "error"
• Overload on one or more channels
• Operating temperature out of
specification
• Hardware error (device broken /
not responding)
Device state "error " Reset/Mea-
sure timing violation (55ms)
• Range switch during measure
5
Device state "connection lost"
38
• Network connection lost
25,85
(unplugged ethernet cable)
7. Connectors
Charge Amplifier Type 5073B
The Ethernet interface enables remote access, remote
configuration and monitoring, firmware update, integration
with control systems, data streaming and a web-based user
interface.
Connector
M12 4-pole neg. D-coded
Sensor 4
21 25,85
4,4
4W
1 : 2
Erstmals verwendet
5073B...
Änderung
100035829
ICAM-B
Cadenas 5073B...
23.12.2021
gez.
Tel. +41 52 224 11 11
gepr.
info@kistler.com
ges.
yellow 1Hz blinking
blue
blue 1Hz blinking
red
yellow 1Hz blinking
yellow 1Hz blinking
yellow 1Hz blinking
blue 3Hz blinking
blue
red
red 3Hz blinking
5073B_3_
115
105
yellow
42
3
1
4
2
1
9
Ethernet Power / Control / Signal Out
Pin Function
1 TX+
Sensor 1 Sensor 2 Sensor 3 Sensor 4
2 RX+
21 21 21
4,4
3 TX-
optional RS232
4 RX-
Type 5073B131A10
SN 1234567
18 ... 30V 4W
6
1
Kistler Instrumente AG
Winterthur Switzerland 5 Shield
Kistler Instruments Ltd.
RG27 9GR Hook, Hampshire, UK
Made in Switzerland
KIAG 10-32 neg.
Werkstoff
Datum Ersatz für Erste Proj.-Nr.
D-00381-C1
Bsi Material-Nr.
siehe Tabelle
Et
Zeichnungs-Nr.
www.kistler.com Bl.
A3
measure. analyze. innovate. 1 / 2
Bhi
The optional RS-232C interface was kept for reverse
compatibility to 5073A. This interface can be used to
integrate the 5073B... into control systems, or to configure
the device via ManuWare software in 5073A compatibility
mode.
Connector
D-Sub 9 pole neg. (optional)
The D-Sub 15-pole connector is used to connect the supply
voltage. Six pins on the D-sub connector are designated for
analog outputs with fully flexible scaling and internal routing.
The connector also accommodates pins for digital inputs and
outputs for controlling industrial measurement processes.
Connector
D-Sub 15-pol. pos
8. Power supply
The voltage supply is provided between Exc+ 18 ... 30 VDC
pin 11 and Exct. GND pin 9 as ground.
Power supply with electrical isolation to PLC
öffentlich
Power supply without electrical isolation to PLC
Massstab Kopie Datum
1:1
100.464.651 Ver.
5
Pin Function
1 Not connected
2 RxD
3 TxD
4 Not connected
5 Exct. GND
6 Not connected
7 Not connected
8 Not connected
9 Not connected
Pin Function
1 Analog output 1
2 Analog output 2
3 Analog output 3
4 Analog output 4
5 Analog output 5
6 Analog output 6
7 Common Control
8 DI (08)
9 Exct. GND
10 Signal GND
11 Exct.+
12 DIO (12)
13 DIO (13)
14 DIO (14)
15 DIO (15)
