P R O B L E M S O LV E D

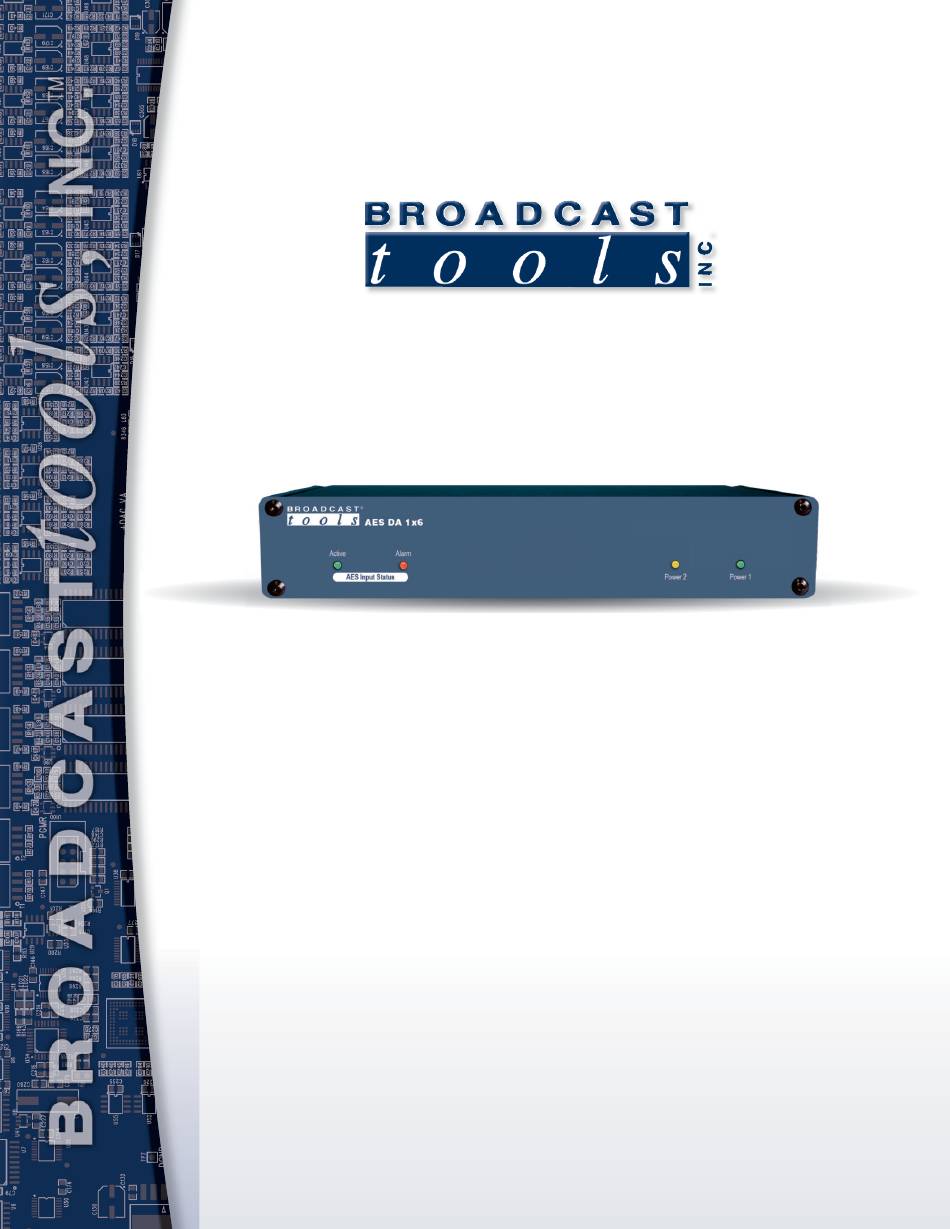

Installation and Operation Manual

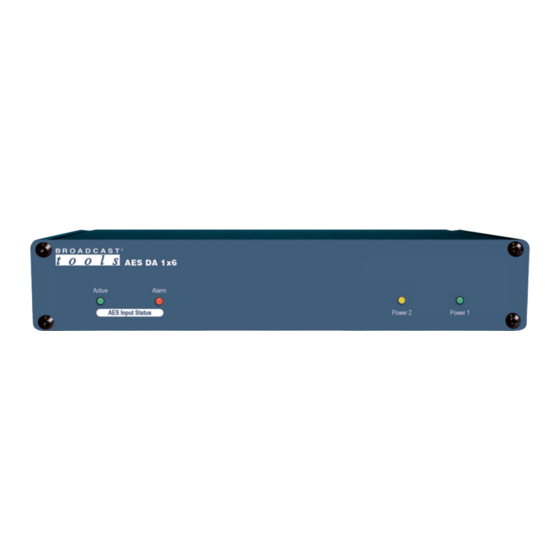

AES DA 1x6
Six-output one-input AES/EBU Digital Audio Distribution
Amplifier with dual/redundant power inputs.
Manual update: 2/28/2023
Rev E PCB (2023) and above only.
If you need a firmware upgrade, contact Broadcast Tools®
No part of this document may be reproduced or distributed without permission.
ALL SPECIFICATIONS AND FEATURES FOR THIS PRODUCT ARE SUBJECT TO
CHANGE WITHOUT NOTICE
NOTE: We recommend the use of Chrome, Firefox or Safari as your browser.
Due to the dynamic nature of product design, the information contained in this
document is subject to change without notice. Broadcast Tools, Inc., assumes no
responsibility for errors and/or omissions contained in this document. Revisions
of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools, Inc.
All Sentinel® labeled products are registered trademarks of Broadcast Tools, Inc.
Copyright® 1989 - 2023 by Broadcast Tools, Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Visit www.broadcasttools.com for important product update information.
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Broadcast Tools AES DA 1x6
Summary of Contents for Broadcast Tools AES DA 1x6
- Page 1 NOTE: We recommend the use of Chrome, Firefox or Safari as your browser. Due to the dynamic nature of product design, the information contained in this document is subject to change without notice. Broadcast Tools, Inc., assumes no responsibility for errors and/or omissions contained in this document. Revisions of this information or new editions may be issued to incorporate such changes.
-
Page 2: Table Of Contents
AES DA 1x6 Installation and Operation Manual Table of Contents Section Title Page # Introduction ..........3 Safety Information . -
Page 3: Introduction
AES DA 1x6 Installation and Operation Manual INTRODUCTION CAUTION! Thank you for your purchase of a Broadcast Tools® AES DA 1x6 is a professional qual- ity AES/EBU digital audio distribution amplifier. We’re confident that this product will Broadcast Tools® give you many years of dependable service. This manual is intended to give you all the Products, as with any information needed to install and operate the Broadcast Tools®... -
Page 4: Product Overview
• Up to two units may be mounted on the optional RA-1 rack shelf. Desktop and wall mounting are also possible. Inspection Please examine your AES DA 1x6 carefully for any damage that may have been sus- tained during shipping. If any damage is present, please notify the shipper immedi- WEBSITE: ately and retain the packaging for inspection by the shipper. -
Page 5: Installation/Operation
UPS Standby Power System We recommend that you connect your AES DA 1x6 to a UPS system. A UPS, like the BE600M1 from APC helps to minimize the risk to the AES DA 1x6 and provides power during a power outage. -
Page 6: Aes/Ebu Activity Detector/Alarm Relay
“Inactive” LED will light, the “Alarm” LED will extinguish, and the Alarm Relay will close. The AES DA 1x6 has one SPDT alarm relay labeled “Alarm Relay.” Connections should be made to the three-position plugin euro-block’s NO (normally open), CM (common) and NC (normally closed) terminals. -
Page 7: Specifications
AES DA 1x6 Installation and Operation Manual Specifications Digital Inputs: One transformer isolated AES/EBU female XLR input (110-ohm or 75-ohm termination jumper selectable) Digital Outputs: Six transformer isolated AES/EBU outputs. 110-ohm impedance. Sample Rate: Up to 192 kHz. Outputs follow input sample rate. Alarm Relay Output: SPDT dry contacts, 30 VDC @ 1 amp maximum. -
Page 8: Warranty
If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in accordance with Broadcast Tools’... - Page 9 AES DA 1x6 Installation and Operation Manual APPENDIX e-mail: voice: fax: support@broadcasttools.com 360.854.9559 866.783.1742...
- Page 10 Product_Name Installation and Operation Manual AES DA 1x6 Component Layout JP1: AES Input Te e rmination Jumper PWR-1 PWR-2 ALARM CK O OPEN MC3487 MC3487 MC3486 74HC123 Power 1 Power 2 AES Outputs Alarm 9-12VDC Input Relay APPENDIX e-mail: voice: fax: support@broadcasttools.com...
