P R O B L E M S O LV E D

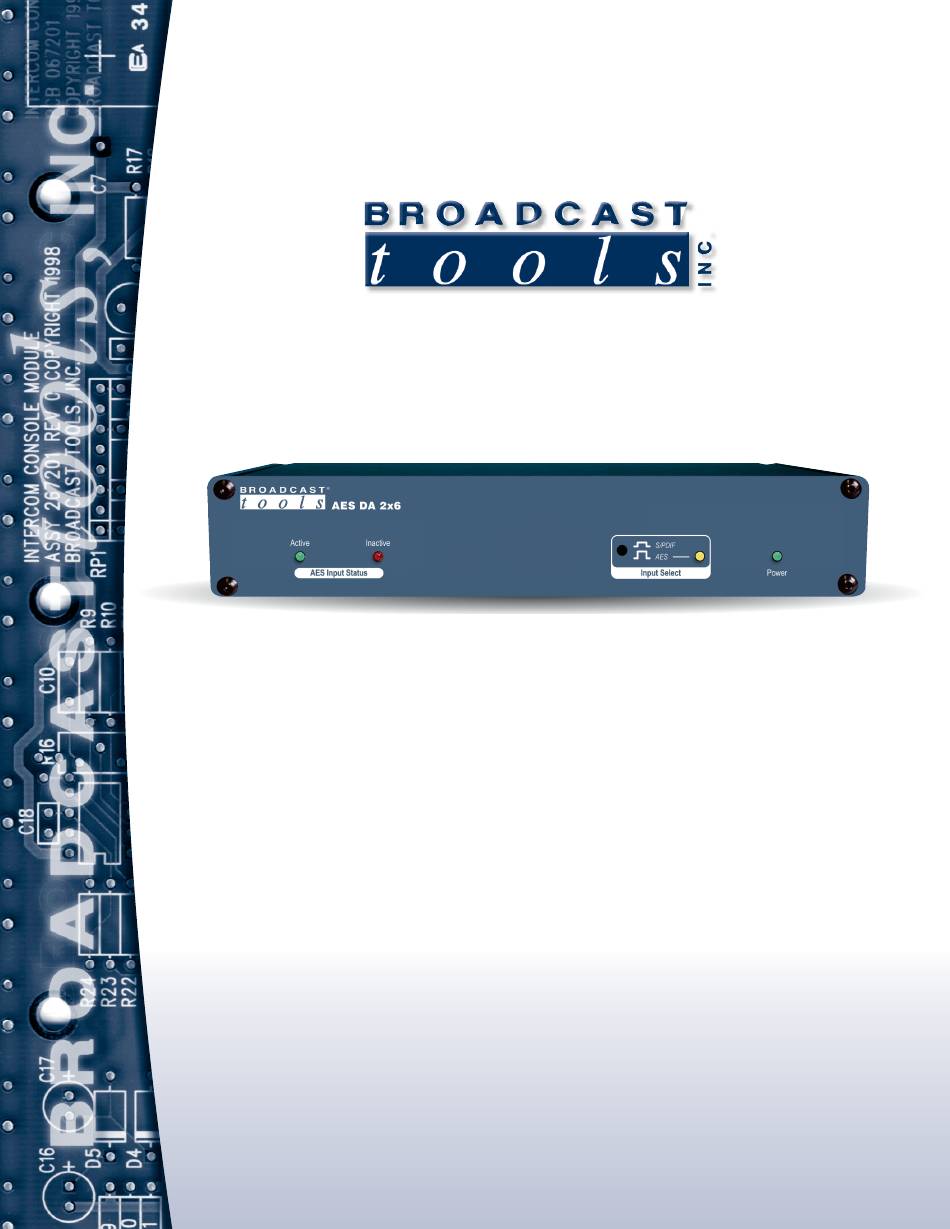

Installation and Operation Manual
Six-output, two-input AES/EBU Digital Audio Distribution Amplifier
If you need a firmware upgrade, contact Broadcast Tools®
No part of this document may be reproduced or distributed without permission.
ALL SPECIFICATIONS AND FEATURES FOR THIS PRODUCT ARE SUBJECT TO
NOTE: We recommend the use of Chrome, Firefox or Safari as your browser.
Due to the dynamic nature of product design, the information contained in this
document is subject to change without notice. Broadcast Tools, Inc., assumes no
responsibility for errors and/or omissions contained in this document. Revisions
of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools, Inc.
All Sentinel® labeled products are registered trademarks of Broadcast Tools, Inc.
Copyright® 1989 - 2015 by Broadcast Tools, Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Visit www.broadcasttools.com for important product update information.
AES DA 2x6
Manual update: 9/17/2015
CHANGE WITHOUT NOTICE
®
Advertisement
Table of Contents
Related Manuals for Broadcast Tools AES DA 2x6
Summary of Contents for Broadcast Tools AES DA 2x6
-
Page 1: Installation And Operation Manual
NOTE: We recommend the use of Chrome, Firefox or Safari as your browser. Due to the dynamic nature of product design, the information contained in this document is subject to change without notice. Broadcast Tools, Inc., assumes no responsibility for errors and/or omissions contained in this document. Revisions of this information or new editions may be issued to incorporate such changes. -
Page 2: Table Of Contents
AES DA 2x6 Installation and Operation Manual Table of Contents Section Title ........Page # Introduction . -
Page 3: Introduction
AES DA 2x6 Installation and Operation Manual INTRODUCTION CAUTION! Thank you for your purchase of a BROADCAST TOOLS® AES DA 2X6 is a pro- fessional quality AES/EBU digital audio distribution amplifier. We’re confident that Broadcast Tools® this product will give you many years of dependable service. This manual is intend-... -
Page 4: Product Overview
AES DA 2x6 Installation and Operation Manual Product Overview The AES DA 2×6, six output two-input AES/EBU distribution system follows in the footsteps of the RDDA 4×4 product and is ideal for distributing AES/EBU signals or word clock at sample rates of up to 192 kHz. The system provides two switch selectable transformer isolated inputs, one with a female XLR connector for bal- anced AES/EBU signals the other with an RCA for unbalanced S/PDIF signals. -
Page 5: Inspection
S/PDIF RCA input is used to feed the outputs. AES/EBU and S/PDIF Digital Audio Inputs The AES DA 2X6 has two digital audio inputs, the first is an XLR input jack for bal- anced AES/EBU and the second is an RCA input jack for and S/PDIF and unbal- anced AES/EBU. -
Page 6: Aes/Ebu Outputs
LED will extinguish, and the alarm relay will open. When AES signal is lost the front panel “Inactive” LED will light, the “Active” LED will extinguish, and the Alarm Relay will close. The AES DA 2x6 has one SPDT alarm relay labeled “Alarm Relay.” Connections should be made to the three-position plugin euro-block’s NO (normally open), CM (common) and NC (normally closed) terminals. -
Page 7: Specifications
AES DA 2x6 Installation and Operation Manual SPECIFICATIONS Digital Inputs: One transformer isolated AES/EBU female XLR input (110-ohm) and one transformer isolated AES S/PDIF female RCA input (75-ohm) selectable via front panel “Input Select” switch. Digital Outputs: Six transformer isolated AES/EBU outputs. 110-ohm impedance. -
Page 8: Warranty
If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in accordance with Broadcast Tools’... - Page 9 AES DA 2x6 Installation and Operation Manual APPENDIX e-mail: voice: fax: support@broadcasttools.com 360.854.9559 866.783.1742...
- Page 10 Product_Name Installation and Operation Manual APPENDIX e-mail: voice: fax: support@broadcasttools.com 360.854.9559 866.783.1742...
- Page 11 Product_Name Installation and Operation Manual APPENDIX e-mail: voice: fax: support@broadcasttools.com 360.854.9559 866.783.1742...
