P R O B L E M S O LV E D

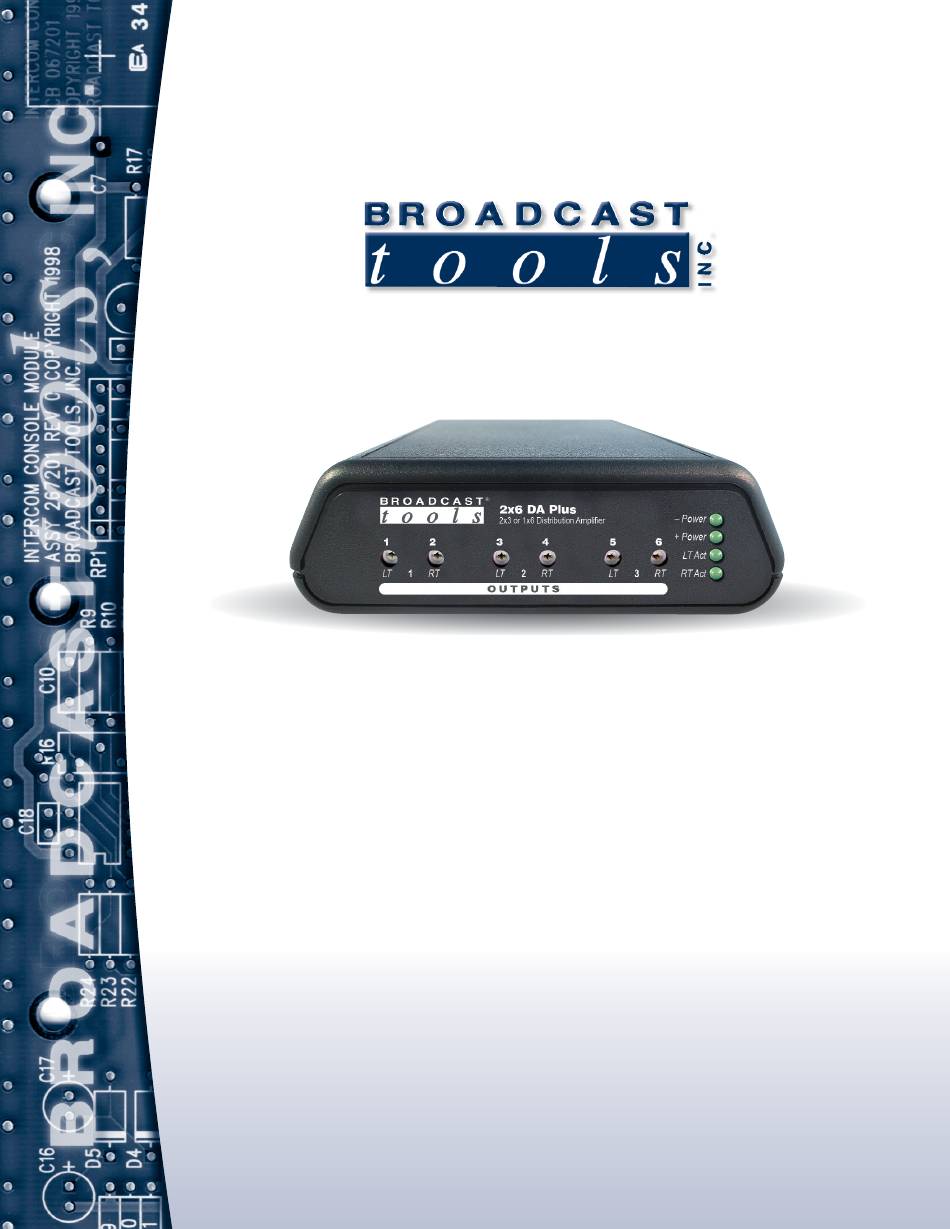

Installation and Operation Manual

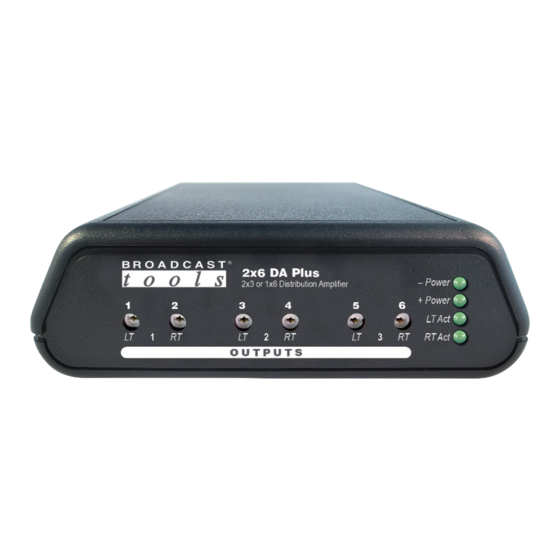

2x3 or 1x6 Analog RJ45 Audio Distribution Amplifier
If you need a firmware upgrade, contact Broadcast Tools®
No part of this document may be reproduced or distributed without permission.
ALL SPECIFICATIONS AND FEATURES FOR THIS PRODUCT ARE SUBJECT TO
NOTE: We recommend the use of Chrome, Firefox or Safari as your browser.
Due to the dynamic nature of product design, the information contained in this
document is subject to change without notice. Broadcast Tools, Inc., assumes no
responsibility for errors and/or omissions contained in this document. Revisions
of this information or new editions may be issued to incorporate such changes.
Broadcast Tools® is a registered trademark of Broadcast Tools, Inc.
All Sentinel® labeled products are registered trademarks of Broadcast Tools, Inc.
Copyright® 1989 - 2022 by Broadcast Tools, Inc. All rights reserved.
No part of this document may be reproduced or distributed without permission.
Visit www.broadcasttools.com for important product update information.
2x6 DA Plus/RJ
Manual update: 1/11/2022
CHANGE WITHOUT NOTICE
®
Advertisement
Table of Contents
Related Manuals for Broadcast Tools 2x6 DA Plus/RJ
Summary of Contents for Broadcast Tools 2x6 DA Plus/RJ
- Page 1 NOTE: We recommend the use of Chrome, Firefox or Safari as your browser. Due to the dynamic nature of product design, the information contained in this document is subject to change without notice. Broadcast Tools, Inc., assumes no responsibility for errors and/or omissions contained in this document. Revisions of this information or new editions may be issued to incorporate such changes.
-
Page 2: Table Of Contents
2x6 DA Plus/RJ Installation and Operation Manual Table of Contents Section Title Page # Introduction ..........3 Safety Information . -
Page 3: Introduction
INTRODUCTION CAUTION! Thank you for your purchase of the 2x6 DA Plus/RJ Stereo Distribution Amplifier, which we will refer to throughout the manual as the 2x6 DA Plus/RJ. We are con- Broadcast Tools® fident this product will give you many years of dependable service. This manual is... -
Page 4: Product Overview
2x6 DA Plus/RJ Installation and Operation Manual Product Overview The Broadcast Tools 2x6 DA Plus/RJ provides 3 channels of stereo or 6 channels of mono audio distribution in a compact and easy to form factor. The 2x6 DA Plus/RJ accepts professional balanced +4 dBu analog audio input (RJ45) or consumer unbal- anced -10 dBV (RCA) inputs eliminating the need for an additional unbalanced to balanced level converter. -
Page 5: Installation/Operation
Surge Protection The 2x6 DA Plus/RJ has built-in resistance to voltage changes; we recommend that you use a power surge protector or line conditioner on the incoming AC line. Lightning strikes and/or other high voltage surges may damage your 2x6 DA Plus/RJ and connected equipment if it is not properly protected. -
Page 6: Led Indicators
RCA. Audio Output Connections The 2x6 DA Plus/RJ provides balanced analog outputs on three RJ45 audio jacks. Connect each load to the DA outputs, labeled "OUTPUTS” For unbalanced loads, use the "+" and GND terminals only. Do not connect the "-" terminal to ground. -
Page 7: Rj45 Audio Pinout
2x6 DA Plus/RJ Installation and Operation Manual RJ45 Audio Pinout: Please use shielded twisted pair Cat5e or Cat6 cables and connectors (STP) with the input and output RJ45 audio jacks. Unbalanced RCA (-10/-15 dBV) Inputs and Pinout: J1 Left = Left (White) -
Page 8: Specifications
2x6 DA Plus/RJ Installation and Operation Manual Specifications * Audio Precision Test Equipment Input Level: -10/15dBv or +4dBu nominal. +25 dBu max. Input Impedance: 20K Ω balanced, 10 K Ω unbalanced Output Level: +4dBu nominal, + 24dBu max, @ 600 , balanced Output Impedance: 100 Ω... -
Page 9: Warranty
If Broadcast Tools is notified, in writing, of a failure of any item manufactured by Broadcast Tools to conform to the foregoing Limited Warranty within one (1) year following the date of the Buyer’s acquisition of the item, and if the item is returned to Broadcast Tools in accordance with Broadcast Tools’... - Page 10 2x6 DA Plus/RJ Installation and Operation Manual APPENDIX e-mail: voice: fax: support@broadcasttools.com 360.854.9559 866.783.1742...
- Page 11 Product_Name Installation and Operation Manual 2x6 DA Plus/RJ 2x6 DA Plus/RJ 2x6 DA Plus/RJ 2x6 DA Plus/RJ 2x6 DA Plus/RJ Component Layout Component Layout Component Layout Component Layout Stereo/Monaural Stereo/Monaural Jumpers Jumpers JP1 = Out 1 JP1 = Out 1...
- Page 12 Product_Name Installation and Operation Manual APPENDIX e-mail: voice: fax: support@broadcasttools.com 360.854.9559 866.783.1742...
- Page 13 Product_Name Installation and Operation Manual APPENDIX e-mail: voice: fax: support@broadcasttools.com 360.854.9559 866.783.1742...
