StarTech.com CABSHELF22V Quick Start Manual

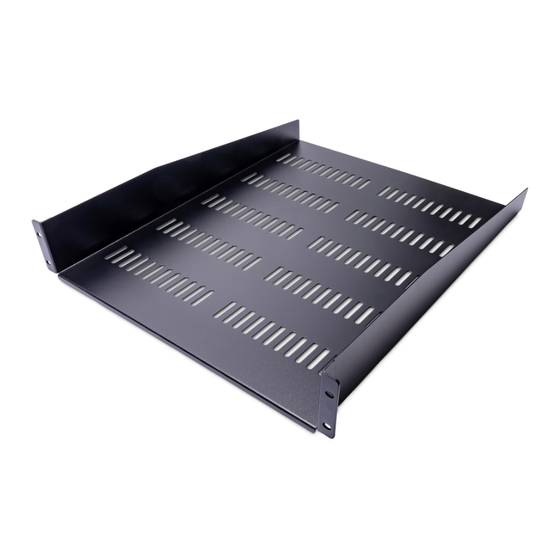

2U 22in Deep Vented Rack Shelf
Product Diagram
CABSHELF22V
1
2
Component
• Used to fasten the Shelf to the Mounting Posts of
1 Front Mounting Brackets
the rack
2 • Promote airflow for the Server Rack Equipment
Ventilation Holes
3 Shelf Surface • Place Server Rack Equipment
Package Contents
• 2U 22in Depth Rack Shelf x 1
• M6 Screws x 4
• M6 Cage Nuts x 4
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support.
• M6 Plastic Washers x 4
• Quick-Start Guide x 1
To view manuals, FAQs, videos, drivers, downloads, technical drawings, and more, visit www.startech.com/support
Requirements
3
Installation
1. Find a suitable location on the rack to mount the Shelf. The Shelf requires 2U of
*Product may vary from image
2. Install the M6 Cage Nuts (x 4) into the Mounting Holes (x 4) on the Mounting
Function
3. Place the Shelf onto the rack and Align the Mounting Holes of the Front Posts
4. Install the M6 Screws (x 4) using a Phillips Head Screwdriver to fasten the Front
For the latest manuals, product information, technical specifications, and declarations
of conformance, please visit: www.StarTech.com/CABSHELF22V
• Refer to the manufacturer of the rack to determine the mounting hole type and size
• Phillips head screwdriver
• Cage nut tool (Optional)
Warnings!
Read the entire Quick-Start Guide and ensure the instructions are fully understood
before using this product.
Before adding equipment to this product, ensure this product has been properly
mounted.
Never operate this product if parts are missing or damaged.
Ensure the weight of the equipment does not exceed the weight capacity of this
product. If the weight capacity is exceeded, personal injury or damage to the
equipment is possible. This product can support the following weight: 50 lb (23 kg).
Mounting Space.
Posts of the rack. If available, use a Cage Nut Tool or your preferred installation
method to install the Cage Nuts.
Note Skip this step if the rack has M6 threaded holes. The M6 Screws can be installed
without the M6 Cage Nuts.
Use the recommended Screws for the rack if they are different from M6.
with the Mounting Holes of the Front Mounting Brackets.
Mounting Brackets to the Front Posts of the rack. Ensure the M6 Screws (x 4)
are properly tightened, and the Shelf is secure before placing the Server Rack
Equipment.
Quick-Start Guide
Manual Revision: March 22, 2023 4:57 PM
