Jabra Link 14201-10
How to connect my Jabra GN9330e with Aastra 6753i, 6755i,
6757i
Prerequisite:
Jabra GN9330e + Jabra LINK 14201-10 + Aastra DHSG Cable Kit (only
available from Aastra)
In combination with one of the following phones:
Aastra 53i / 55i / 57i / 57iCT
Aastra 6753i / 6755i / 6757i / 6757i CT
From phone firmware 2.5.1.2000 or higher.
Connection:
Important: Please note that remote call control for the Jabra GN9330e is
supported from version "L" or the Date code 9/09.

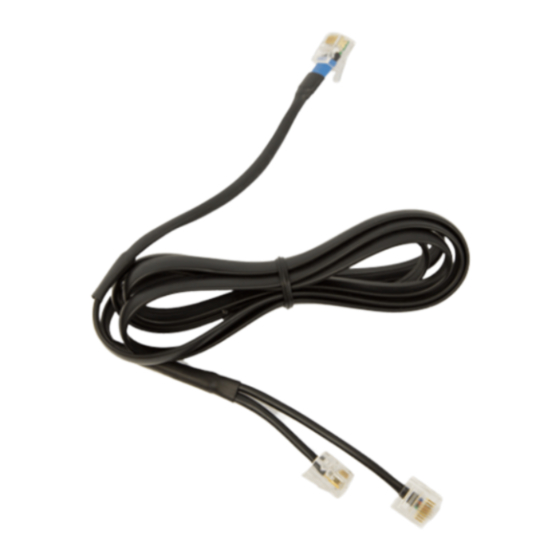

Aastra DHSG cable:
1. Insert the split end of the Aastra DHSG cable into your phone as
https://www.jabra.in/supportpages/jabra-link-14201-10/14201-10/faq/f698f087-85fd-492f-
9aea-affbf082d1dd
23/11/2022 14:54
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jabra LINK 14201-10
Summary of Contents for Jabra LINK 14201-10
- Page 1 How to connect my Jabra GN9330e with Aastra 6753i, 6755i, 6757i Prerequisite: Jabra GN9330e + Jabra LINK 14201-10 + Aastra DHSG Cable Kit (only available from Aastra) In combination with one of the following phones: Aastra 53i / 55i / 57i / 57iCT Aastra 6753i / 6755i / 6757i / 6757i CT From phone firmware 2.5.1.2000 or higher.
- Page 2 1. Now plug the 1-sided of the GN Netcom DHSG cable marked in blue into the free socket of the RJ45 adapter. 2. Insert the RJ9 plug into the socket marked with a “phone" symbol and the RJ45 plug into the base socket of the Jabra GN9330e marked with "AUX". Software setup: Put the headset into the base and activate the "DHSG"...
- Page 3 The audio mode must be set to "Headset/Speaker" in the phone settings: Options > Preferences > Audio Settings > Audio Mode > Headset/Speaker. Remote call control in combination with an expansion keypad is not supported! https://www.jabra.in/supportpages/jabra-link-14201-10/14201-10/faq/f698f087-85fd-492f- Page 3 of 4 9aea-affbf082d1dd...
- Page 4 Headset answer/end: As soon as the dial tone signal can be heard in the headset, you can answer the call by pressing the "answer/end" button on the headset; by pressing again the call is ended. https://www.jabra.in/supportpages/jabra-link-14201-10/14201-10/faq/f698f087-85fd-492f- Page 4 of 4 9aea-affbf082d1dd...
