Jabra Link 14201-10

How to connect my Jabra GN9350e with Aastra 6753i, 6755i,

6757i

Prerequisite:

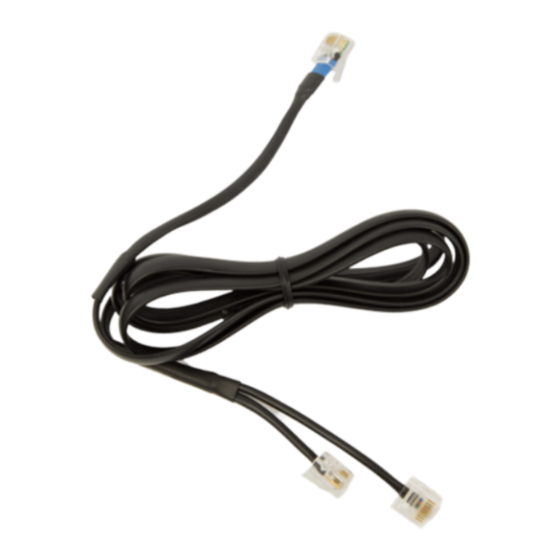

Jabra GN9350 + Jabra LINK 14201-10 + DHSG connection cable (Aastra

product no.: D0062-0011-34-00)

In combination with one of the following phones:

Aastra 53i / 55i / 57 i / 57iCT

Aastra 6753i / 6755i / 6757i / 6757i CT

from phone firmware 2.5.1.2000 and higher

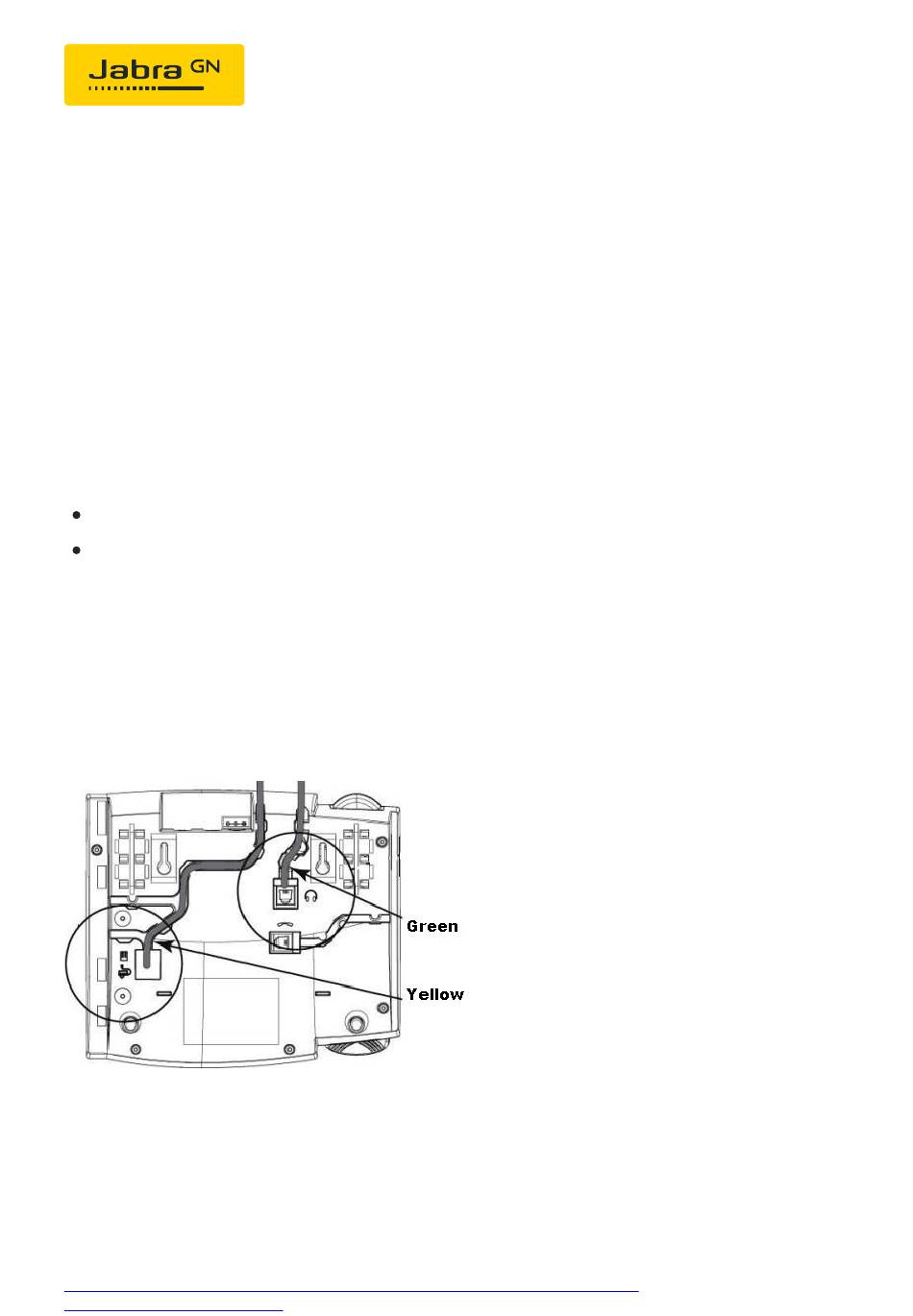

1. Insert the split end of the Aastra DHSG cable into your phone as

follows: RJ9 plug (marked green) into the "headset" socket and the

RJ45 plug (marked yellow) into the socket for the expansion module/

expansion modules.

https://www.jabra.com.au/supportpages/jabra-link-14201-10/14201-10/faq/68afee97-

c852-4df2-a0c3-69c13a6202e2

28/06/2021 15:31

Page 1 of 4
