Jabra Link 14201-10
How do I connect my headset with my Aastra 5370, 5380,
Office 70 or Office 80?
Requirements:
Jabra LINK 14201-10
Aastra Office 70 / 70 IP / 5370 IP / 80 / 80 IP / 5380 IP
To connect your headset to your phone please follow these steps:

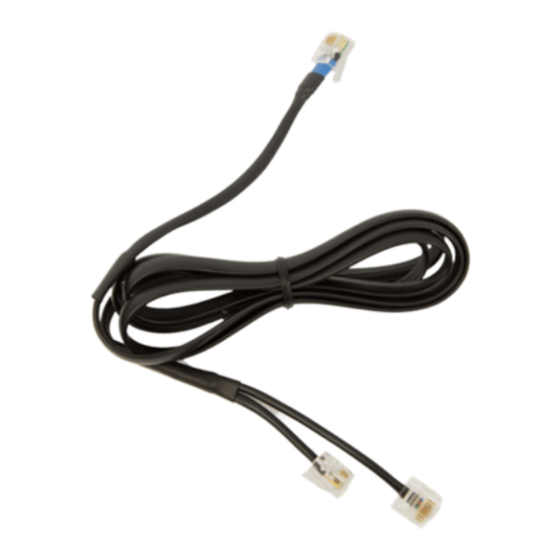

1. Plug the RJ9 connector (green) from the split end of the Aastra DHSG
cord into the phone socket on the Jabra device base.
2. Plug the RJ45 connector (yellow) from the split end of the Aastra DHSG
cord into the AUX socket on the Jabra device base.
3. Plug the single end of the Aastra DHSG cord (blue) into the socket
marked with a headset symbol on the phone.

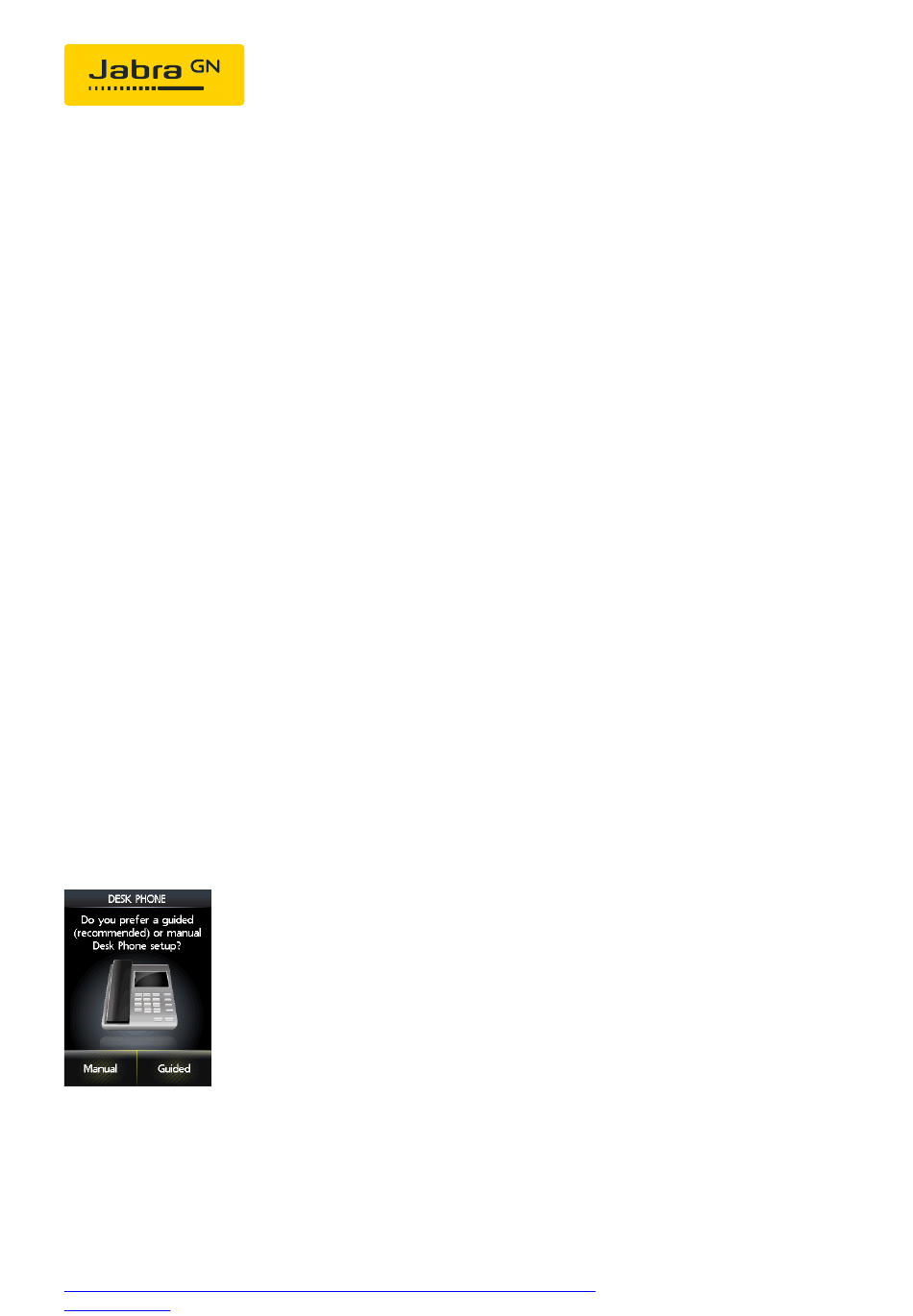

4. Follow the instructions on the Jabra device touch screen:
a. Select Phone setting.
b. Select Connect to a deskphone.
c. Select Manual.
d. Select adapter type DHSG.
/supportpages/jabra-link-14201-10/14201-10/faq/7aed962e-d020-4d70-a883-
b8a9db874a1e
27/06/2021 20:07
Page 1 of 3
