Jabra Link 14201-10 Quick Start Quide

Connection with aastra open phone 6771, 6773, 6775, 71, 73, 75, aastra 6739i, aastra 7434 and 7444, 5370, 5370ip, 5380, 5380ip

Jabra Link 14201-10

How to connect my Jabra GN9120 EHS / GN9125 EHS with

Aastra Open Phone 6771, 6773, 6775, 71, 73, 75, Aastra 6739i,

Aastra 7434 and 7444, 5370, 5370ip, 5380, 5380ip

Prerequisite:

Jabra GN9120 EHS + Jabra LINK 14201-10

Jabra GN9125 EHS + Jabra LINK 14201-10

In combination with one of the following phones:

Open Phone 6771 / 6773 / 6775 incl. IP (Old name: Open Phone

71/73/75 incl. IP)

Aastra 6739i

Aastra 7434 / 7444 IP

5370, 5370ip, 5380, 5380ip

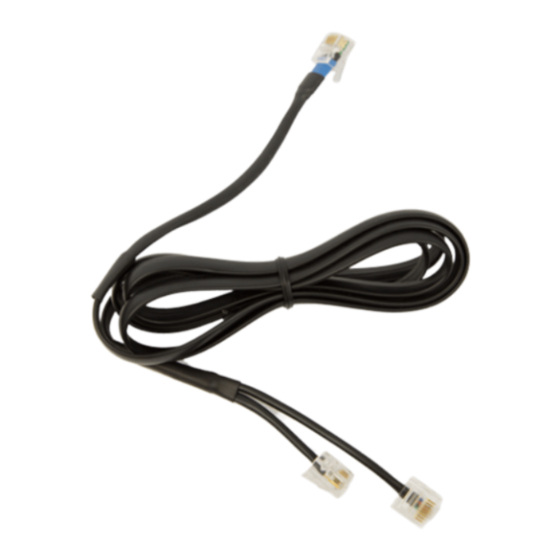

1. Plug the 1-sided end of the DHSG cable marked in blue into the socket

of your phone marked with the "headset" symbol.

2. Plug the split end of the DHSG cable into the base of the Jabra GN912x.

Plug the RJ10 plug into the socket with the complete "phone" symbol

and the RJ45 plug into the socket on the Jabra GN9120 base marked

with "AUX".

https://www.jabra.no/supportpages/jabra-link-14201-10/14201-10/faq/5e459146-cabb-

468b-9141-4ea2287506a7

27/06/2021 20:34

Side 1 av 4

Table of Contents

Do you have a question about the Link 14201-10 and is the answer not in the manual?

Page 1 1. Plug the 1-sided end of the DHSG cable marked in blue into the socket of your phone marked with the “headset” symbol. 2. Plug the split end of the DHSG cable into the base of the Jabra GN912x. Plug the RJ10 plug into the socket with the complete “phone” symbol and the RJ45 plug into the socket on the Jabra GN9120 base marked with "AUX".
Page 2 27/06/2021 20:34 EHS setup: The Jabra GN912x must be set up to DHSG EHS. (The Jabra GN912x DHSG is always supplied in DHSG mode). You can check or set it up as follows: 1. Place the headset on the base.
Page 3 You can now increase the microphone volume with PLUS or decrease the volume with MINUS. 3. To confirm, after approx. 10 seconds a low signal tone is produced. All https://www.jabra.no/supportpages/jabra-link-14201-10/14201-10/faq/5e459146-cabb- Side 3 av 4 468b-9141-4ea2287506a7...
Page 4 Phone setup: Open Phone 71: Menu > Settings > Audio > Headset ON Open Phone 73 / 75 incl. IP: Menu > Settings > Headset > Headset ON https://www.jabra.no/supportpages/jabra-link-14201-10/14201-10/faq/5e459146-cabb- Side 4 av 4 468b-9141-4ea2287506a7...
