Jabra Link 14201-10 Quick Start Manual

Jabra Link 14201-10
How do I connect my Jabra wireless headset with the Jabra
Link 14201-10 to my desk phone so I have remote call control
using my headset?

Connection:

1. Connect the AC adapter that is supplied with the headset to the
headset base, and connect the other end to an electrical outlet.

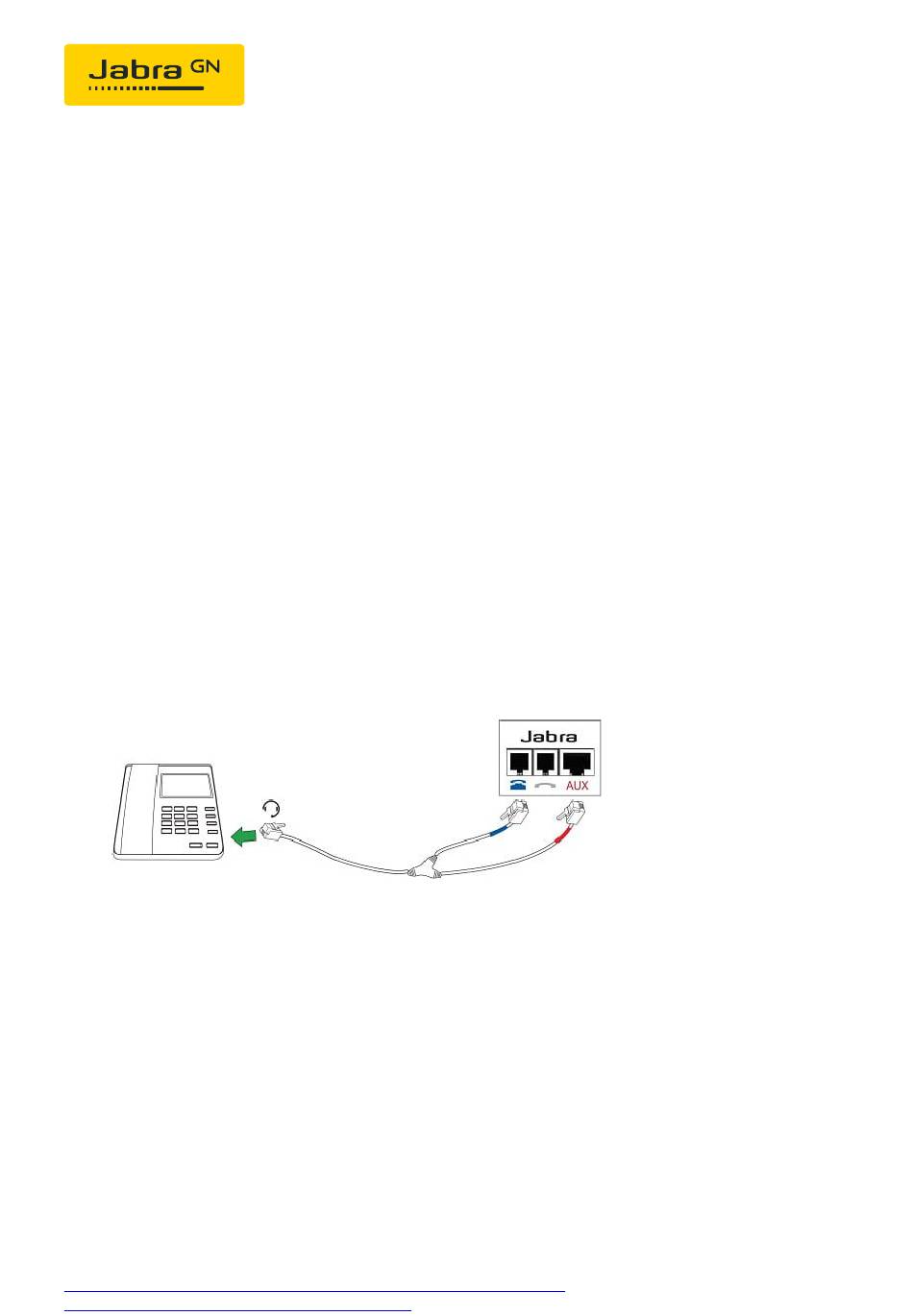

2. Connect the Jabra Link 14201-10 EHS cable with the red band to the
AUX interface on the headset base, and connect the end with the
blue band to the headset base socket that is marked with a phone
icon.
3. Connect the Jabra Link 14201-10 EHS cable single end to the
headset interface on the desk phone.

Configuration:

1. Ensure the headset function is enabled on the desk phone. Refer to
your phone or IT support for assistance.
2. Follow the setup instructions for your Jabra wireless headset. If the
headset base requires manual configuration, set the Electronic Hook
Switch setting to "DHSG" and set the dial tone switch to position
"A".
3. Make a call to the headset. If the volume of your voice is too loud or
