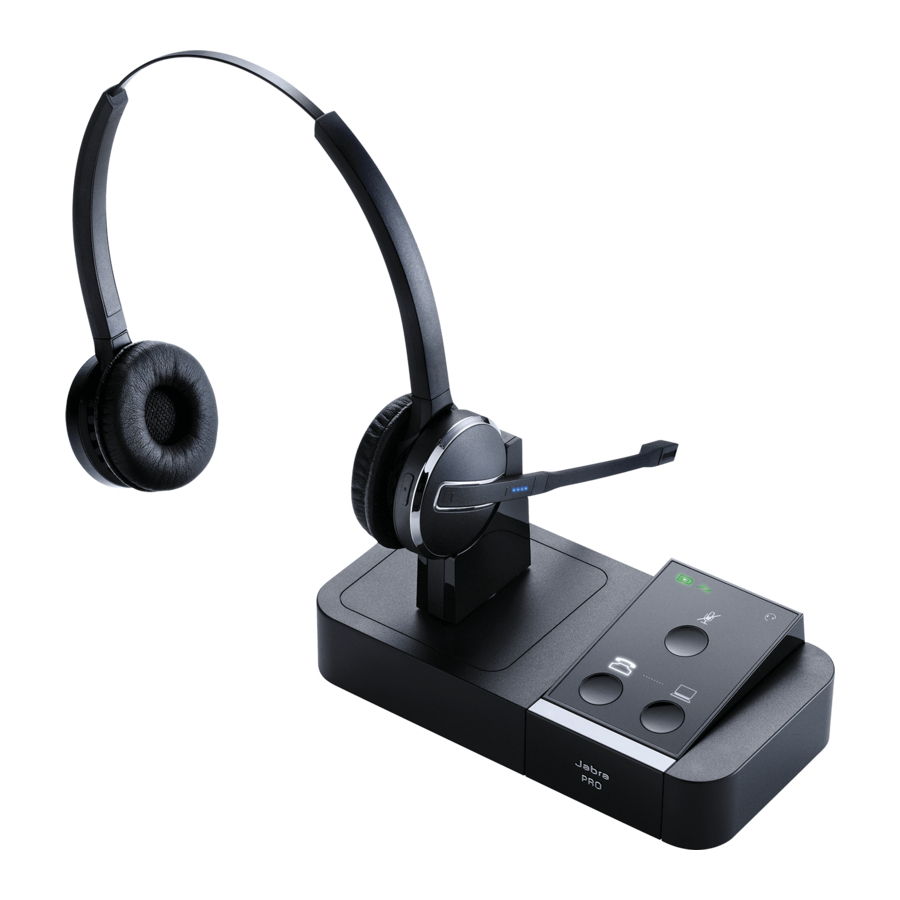

Jabra Pro 9450 Mono Flex
How to connect my Jabra PRO 9450 with Aastra 6753i, 6755i,
6757i
Prerequisite:
Jabra PRO 9450 + Jabra LINK 14201-10 + Aastra DHSG cable kit (only
available from Aastra)
In combination with one of the following phones:
Aastra 53i / 55i / 57i / 57iCT
Aastra 6753i / 6755i / 6757i / 6757i CT
From phone firmware 2.5.1.2000 or higher.
Connection:
Aastra DHSG cable:
1. Insert the split end of the Aastra DHSG cable into your phone as
follows.
2. Insert the RJ9 plug (marked green) into the "headset" socket and the
RJ45 plug (marked yellow) into the socket for the expansion module.
https://www.apac.jabra.com/supportpages/jabra-pro-9450/9450-25-707-
103/faq/9f250e87-e72b-4a5f-9960-65c811586e3d
14/10/2022 13:07
Page 1 of 4
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Jabra Pro 9450
Summary of Contents for Jabra Pro 9450
- Page 1 How to connect my Jabra PRO 9450 with Aastra 6753i, 6755i, 6757i Prerequisite: Jabra PRO 9450 + Jabra LINK 14201-10 + Aastra DHSG cable kit (only available from Aastra) In combination with one of the following phones: Aastra 53i / 55i / 57i / 57iCT Aastra 6753i / 6755i / 6757i / 6757i CT From phone firmware 2.5.1.2000 or higher.
- Page 2 1. Now insert the 1-sided end of the GN Netcom DHSG cable marked in blue into the free socket of the RJ45 adapter. 2. Connect the split end of the DHSG cable as follows with the Jabra PRO 94x0e base. Insert the RJ9 plug into the socket identified with the complete "phone"...
- Page 3 Set the phone set-up switch to position "A". Microphone level setup: Remove the cover from the base of the Jabra PRO 9450 and make a call with the headset, to a colleague for example. If you are too loud or too quiet to the person you are calling, please use the volume adjuster until you achieve the optimum volume level.
- Page 4 14/10/2022 13:07 Speaker Remote call control in combination with an expansion keypad is not supported. https://www.apac.jabra.com/supportpages/jabra-pro-9450/9450-25-707- Page 4 of 4 103/faq/9f250e87-e72b-4a5f-9960-65c811586e3d...
