Jabra Link 14201-10 Quick Start Manual

Jabra Link 14201-10
How to connect my Jabra GN9330e with Aastra Open Phone
6771, 6773, 6775, 71, 73, 75, Aastra 6739i, Aastra 7434 and
7444

Prerequisite:

Jabra GN9330e + Jabra LINK 14201-10
In combination with one of the following phones:
Open Phone 6771 / 6773 / 6775 including IP (previous name: Open
Phone 71 /73 / 75 including IP)
Aastra 6739i
Aastra 7434 / 7444 IP

Connection:

Important: Please note that remote call control for the Jabra GN9330e is
only supported from version "L" or the Date code 9/09.

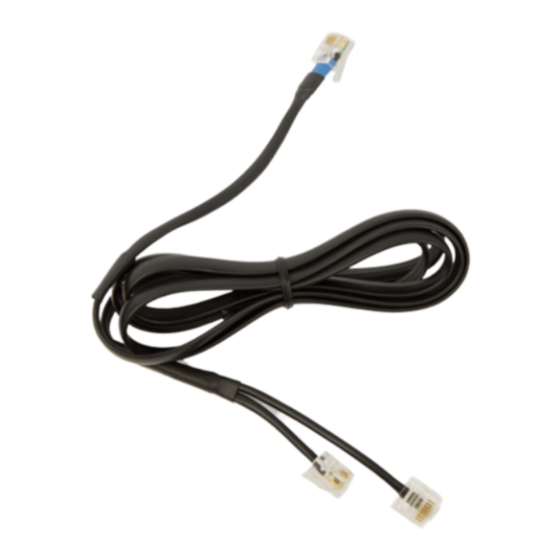

1. Plug the 1-sided end of the DHSG cable marked blue into the socket of
your phone marked with the "headset" symbol.
2. Insert the split end of the DHSG cable into the Jabra GN9330e base.
Plug the RJ10 plug into the socket marked with a "phone" symbol and
the RJ45 plug into the base socket of the Jabra GN9330e marked with
"AUX".

Software setup:

Put the headset into the base and activate the "DHSG" mode.
Hold down the "phone" button on the base of the Jabra GN9330e for
