Berker 75341002 Technical Documentation Manual

Shutter/blind actuator 1gang 6A flush-
mounted
75341002
FM (flush-mounted type)
Design:
7534 10 02
Article-no.:
Shutter / Shutter / Shutter/blind actuator 1gang 6A flush-mounted
ETS search path:
Functional description:
The shutter/blind actuator receives telegrams from sensors via the Instabus and controls a shutter or blind motor
with its output. Both travel directions are mechanically interlocked. With sun protection or positioning telegrams, the
actuator offers moreover the possibility of moving shutters, blinds and slats into any desired position. On reception of
a storm warning, the actuator is capable of moving shutters or blinds into a predefined safety position and to lock
them up in this position.
The device is equipped with two extension inputs which - depending on parameterization - can act directly on the
shutter/blind output (local control / double-sided push-button principle) or alternatively as binary inputs on the
Instabus. The connected potential-free switch or push-button contacts are sensed against a common reference
potential at the shutter/blind actuator. As a binary input, the device can transmit telegrams for switching or dimming,
for shutter/blind control or for value transmitter applications (dimming value transmitter, light scene extension).
Connecting 230 V signals or other external voltages to the extension inputs is not permitted.
The shutter/blind actuator is supplied from the Instabus and needs therefore no additional external power supply.

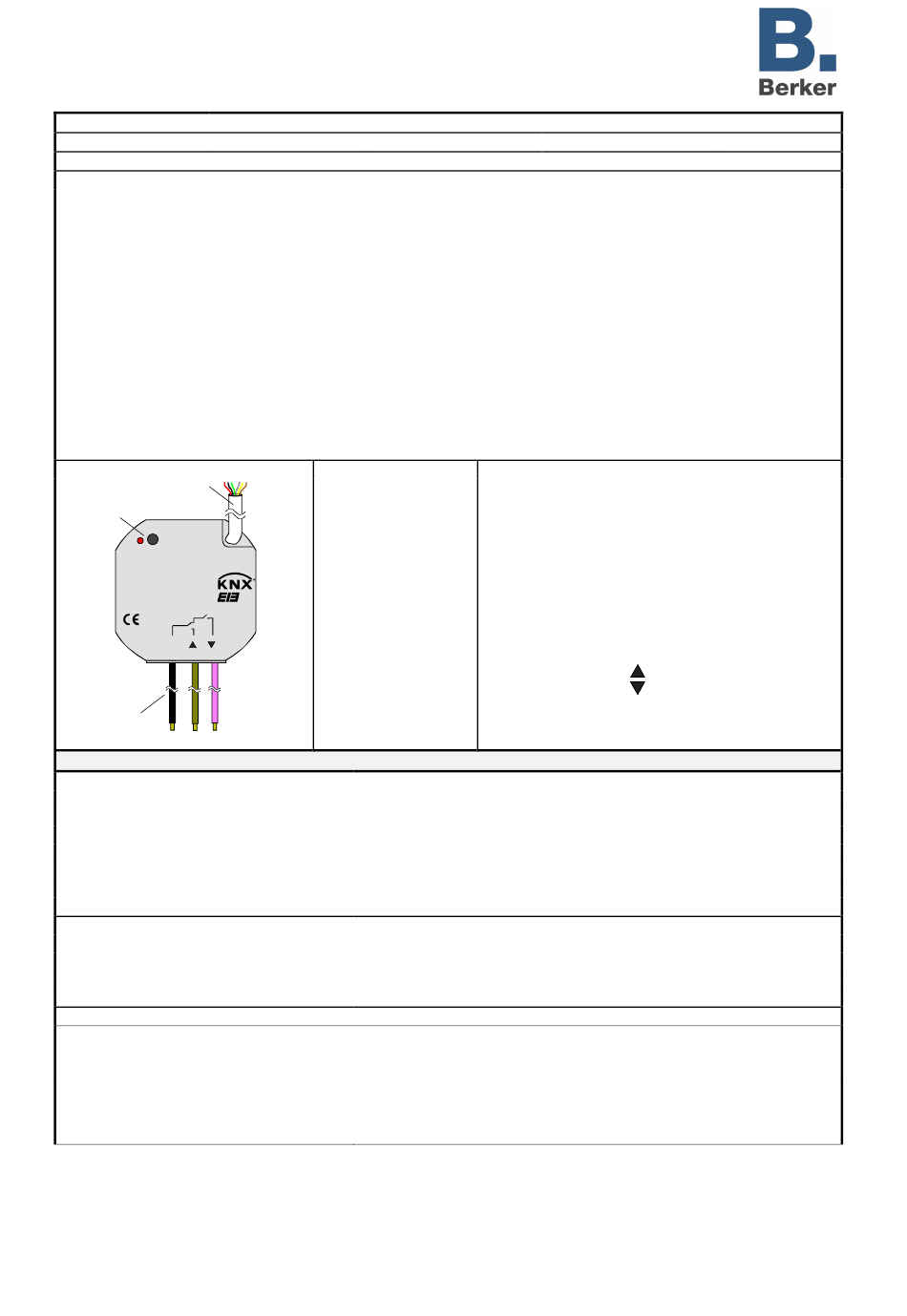

Illustration:
A
C
EIB+ / RD
EIB- / BK
1 / GN
Prog.
com / WH
2 / YE
com / BN
µ
µ
L
BK BN PK
B
Technical data
Type of protection:
Safety class:
Mark of approval:
Ambient temperature:
Storage / transport temperature:
Mounting position:
Minimum spacings:
Type of fastening:
Instabus EIB supply
Cable type:
Voltage:
Power consumption:
Connection:
External supply
Response to voltage failure:
Response to bus voltage return:
© Berker GmbH & Co KG 2005
(Subject to prior change)
Dimensions: Controls:
Ø: 53 mm A
Height (H): 28 mm
B
C: Programming button / LED (red)
IP 20
III
KNX / EIB
-5 ° C ...+45 ° C
-25 ° C ...+70 ° C (storage above +45 ° C results in s horter lifetime)
any
none
e.g. placing into deep flush-mounting box (∅ 60 mm x 60 mm)
YY 6 x 0.6 mm; red: bus (+) / black: bus (-)
21 – 32 V DC SELV
typically 150 mW
approx. 33 cm ready-made; connecting terminal (0.6 – 0.8 mm)
---
Outputs: depending on parameterization
(cf. "parameter description")
Inputs: no reaction
Outputs: depending on parameterization
(cf. "parameter description")
Inputs: depending on parameterization
(cf. "parameter description")
Version: 17.08.2005
75341002.doc
Technical
Documentation
Low-voltage connecting wires
red (RD): bus (+)
black (BK): bus (-)
green (GN): extension input 1
white (WH): reference potential (com)
yellow (YE): extension input 2
brown (BN): reference potential (com)
Load connection wires
black (BK): L (phase connection)
brown (BN): (travel direction UP)
magenta (PK): (travel direction DOWN)
Part 7
Seite: 1 / 35
