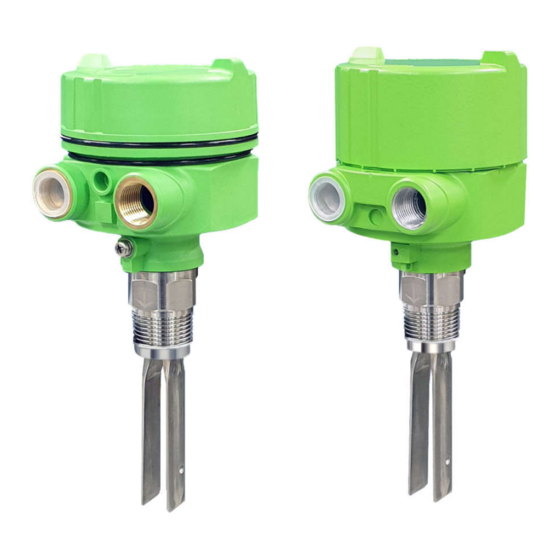

HTM-30N Series
HITROL CO., LTD.
HEAD OFFICE.FACTORY.R&D INSTITUDE
HITROL CO., LTD. 141, Palhakgol-gil, Jori-eup
Paju-si, Gyeonggi-do, Korea
TEL. : (00)+82-31-950-9700
FAX. : (00)+82-31-943-5600
www.hitrol.com
INSTRUCTION MANUAL
VIBRATION TYPE LEVEL SWITCH
HTM-30N Series
Doc. no.: HTM30N_IM_Eng_Rev.7.2
Issue date: 2023. 03
HITROL CO., LTD.
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HTM-30N Series HTM-30N-Ex Series and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for HITROL HTM-30N Series HTM-30N-Ex Series

Summary of Contents for HITROL HTM-30N Series HTM-30N-Ex Series

  • Page 1 HTM-30N Series HITROL CO., LTD. HEAD OFFICE.FACTORY.R&D INSTITUDE HITROL CO., LTD. 141, Palhakgol-gil, Jori-eup Paju-si, Gyeonggi-do, Korea TEL. : (00)+82-31-950-9700 FAX. : (00)+82-31-943-5600 www.hitrol.com INSTRUCTION MANUAL VIBRATION TYPE LEVEL SWITCH HTM-30N Series Doc. no.: HTM30N_IM_Eng_Rev.7.2 Issue date: 2023. 03 HITROL CO., LTD.

  • Page 2: Table Of Contents

    User Training · · · · · · · · · · · · · · · · · · · · · · · 10 out the work. Warranty and Contact · · · · · · · · · · · · · · · · · · · 11 HITROL CO., LTD.

  • Page 3: Overview

    ■ Applicable Connection Port for setting and monitoring by Computer. Applicable Connection Port for setting and monitoring by Computer. Applicable Connection Port for setting and monitoring by Computer. ■ Explosion-proof type is available. proof type is available. HITROL CO., LTD. HITROL CO., LTD.

  • Page 4: Specifications

    Relay Contact Out Control Normal Close @ Default. Status Indicator Bi-Color LED [Green / Red / Orange] Detection Indicator RED LED Relay Control Indicator GREEN LED Dimensions 80mm x 65mm x 54mm UART Monitoring Ambient Temperature -20°C ~ +80°C HITROL CO., LTD.

  • Page 5: Dimensions

    HTM-30N Series Dimensions ■ HTM-30N(Weather-proof) Standard type (PBT) Extension type (PBT) Standard type (AL.C) Extension type (AL.C) Actual product may have a tolerance slightly. HITROL CO., LTD.

  • Page 6: Htm-30N-Ex(Explosion-Proof)

    ■ Make sure to insert gaskets between flanges. (Select the gaskets in consideration of the temperature of the content and the pressure inside the container.) In the case of explosion-proof products, you shall apply the appropriate rating for your installation. HITROL CO., LTD.

  • Page 7: Precautions For Installation

    Make sure to connect it to an external ground. Make sure to connect it to an external ground. ■ For explosion For explosion-proof products, apply power after tightening the proof products, apply power after tightening the cover. HITROL CO., LTD. HITROL CO., LTD.

  • Page 8: Precautions For Use

    No part has an influence on the environment, the product. No part has an influence on the environment, so so special attention is not required (e.g., mercury switch). not required (e.g., mercury switch). HITROL CO., LTD. HITROL CO., LTD.

  • Page 9: Precautions For Lead-In Method Of External Wire

    Turn off the power of the product for maintenance. In a hazardous area, do not disassemble when power is applied n a hazardous area, do not disassemble when power is applied n a hazardous area, do not disassemble when power is applied. HITROL CO., LTD. HITROL CO., LTD.

  • Page 10: Marking

    1 and zone 2. Install in accordance with explosion Install in accordance with explosion-proof temperature rating and fluid temperature. proof temperature rating and fluid temperature. HITROL CO., LTD. HITROL CO., LTD.
  • Page 11 You can request for A/S through our website or by contacting our headquarters. ■ Headquarters 〮 Factory 〮 Laboratory Contact Number Address : HITROL CO.,LTD 141, Palhakgol-gil, Jori-eup, Paju-si, Gyeonggi-do, Korea TEL : 031-950-9700 (Headquarters and A/S) FAX : 031-943-5600 (Headquarters and A/S)
  • Page 12 APPENDIX G HTM-30N Setting Guide Tuning Fork Type Vibration Level Switch Doc. no. : Rev0.0...
  • Page 13 1. M-30N Configuration and Function CONFIGURATION FUNCTION SEN. ■ Sensitivity Adjustment ■ Relay Delay Time Adjustment ○ Time Range : 0.5s, 1s ~ 10s @ Adjustment 0.1s ■ Relay Return Time adjustment ○ Time Range : 0.5s, 1s ~ 10s @ Adjustment 0.1s ■...
  • Page 14 2. M-30N Setting & Adjustment ■ Initialization Setting Method □ After installing it on the tank, set it to the initial state for quick response. ■ Tuning Setting 1 □ The reference setting method according to the "Initialization Setting Method". [Initialization Setting Status] FUNCTION METHOD...
  • Page 15 ■ Tuning Setting 2 DET. □ How to set up when the LED is on. SEN. [Before Adjusting SEN. [After Adjusting FUNCTION METHOD DET. SEN. ■ If the LED is on, fine-tune the VR to the right until the DET. LED turns off to set the reference value.
  • Page 16 ■ Relay Time Adjustment Method □ You can adjust the relay operation time after detecting the measurement. [Operating Status According to Relay Delay Time] FUNCTION METHOD ■ Relay Delay Time Time Adjustment Range : 0.5s, 1s ~ 10s @ Adjustment 0.1s ■...
  • Page 17 ■ Fail Safe Mode Adjustment Method □ You can adjust the contact status to Relay Contact N.C [Operating Status According to Relay Contact [N.C]] FUNCTION METHOD ■ Relay Contact Out Default Status ■ After detecting the measurement, the contact point changes from N.C to N.O ■...
  • Page 18 3. M-30N UART Monitoring ■ Monitoring Method □ You can only check the state of the adjusted setting values using your PC or Smartphone. □ The execution method is the same using your PC or Smartphone. (Password: 1975) □ Run Screen Component: You can check the sensor measurement status, sensitivity setting value, relay setting, etc.
  • Page 19 ■ Monitoring Method Using Smartphone □ Component: Smartphone(Android OS), OTG, USB Cable(typical USB to Micro USB B), UART ADAPTOR. □ App: Refer to “Serial USB Terminal Install & Setting Guide” [USB Cable] [M-30N Smartphone UART Component] [Enter PW and Fly command] [Home Screen] [Run Screen] [Select UART Connection]...
  • Page 20 APPENDIX H Serial USB Terminal Serial USB Terminal Install & Setting Guide Application : Level Switch / Level Transmitter Doc. no. : Rev0.0 Issued Date : 2020.04.29...
  • Page 21 ■ Installing Serial USB Terminal App □ Search and Install a App that "Serial USB terminal" in the App Store. ■ Serial USB Terminal Setting □ Run The Serial USB Terminal Icon □ Four types of environments must be set up for normal operation of Serial USB Terminal. ▶...
  • Page 22 ■ Serial – Baud rate Setting □ Baud rate : 19200 -> 9600 [Complete] [Select Baud rate] [Setting] [Default] ■ Terminal - Show connection message / Show timestamps Setting □ Show connection message : ON -> OFF □ Show timestamps : ON -> OFF □...
  • Page 23 ■ Receive – Newline Setting □ Newline : CR+LF (Carriage Return + Line Feed) Check [Default] ■ Send - Newline Setting □ Newline : Auto(same as Receive) -> CR [Select Newline] [Default] [Setting] [Complete] Doc. no. : Rev0.0 Issued Date : 2020.04.29...
  • Page 24 ■ Send - Character delay Setting □ Character delay : 0ms -> 5ms [Complete] [Setting] [Default] [Select Character delay] ■ Send – Local echo / Clear input on send Setting □ Local echo : ON -> OFF □ Clear input on send : OFF -> ON [Complete] [Complete] [Select Local echo]...
