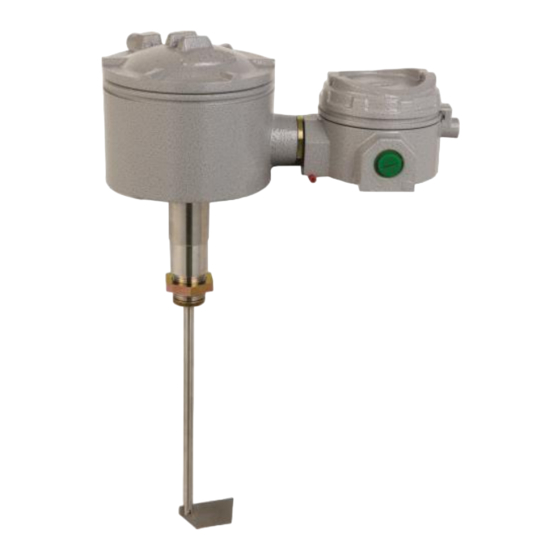

INSTRUCTION MANUAL
PADDLE TYPE LEVEL SWITCH
HLV Series
Doc. no.: HLV_IM_Eng_Rev. 1.3
Issue date: 2020. 11
HITROL CO., LTD.
1
Advertisement
Table of Contents
Related Manuals for HITROL HLV Series
Summary of Contents for HITROL HLV Series
- Page 1 HLV Series HITROL CO., LTD. HEAD OFFICE.FACTORY.R&D INSTITUDE HITROL CO., LTD. 141, Palhakgol-gil, Jori-eup Paju-si, Gyeonggi-do, Korea TEL. : (+82)-31-950-9700 FAX. : (+82)-31-943-5600 www.hitrol.com INSTRUCTION MANUAL PADDLE TYPE LEVEL SWITCH HLV Series Doc. no.: HLV_IM_Eng_Rev. 1.3 Issue date: 2020. 11...
-
Page 2: Table Of Contents
HLV Series Table of Contents Marking ..............10 Overview ..............3 User Training ............10 Operation Principle and Product Configuration .. 3 Warranty and Contact .......... 10 Features ..............3 Applications ............. 3 Specification ............. 4 HLV-300 Series ..............4 HLV-310 Series .............. -
Page 3: Overview
HLV Series Overview The HLV Series is a paddle type level switch which detects the level inside the tank and is used in the process of alerting the user according to their use and measurement. This detector has strong structure, good reliability, and long life benefits. It is mainly used in Hopper and is used to measure molecules such as Powder, Grains, and Lumps. -
Page 4: Specification
HLV Series Specification HLV-300 Series Model HLV-300 HLV-300H HLV-300-Ex Installation Top or Side Type Flange or Screw Ambient Temperature -20˚C ~ +60˚C Process Temperature Max. 80˚C Max. 80˚C Max. 180˚C Process Pressure Power Source AC 110V / 220V, 60Hz Power Consumption Approx. -
Page 5: Dimensions
HLV Series The dimensions on the following pages are indicated in [mm]. Dimensions HLV-300 HLV-300H HLV-300-Ex HLV-300-Ex (Extension Ver.) HITROL CO., LTD. - Page 6 HLV Series HLV-310 HLV-310H HLV-310HP HLV Series Paddles HLV Series Foldable Type Paddle 3” 2” 1” Some tolerances may occur with actual products. HITROL CO., LTD.
-
Page 7: Installation
HLV Series ■ When used as a high level sensor Installation - Then sensor shall be installed in the area where the paddle can sense the highest level considering the repose angle of the material. ■ When used as a low level sensor... -
Page 8: Precautions For Installation
HLV Series - The paddle shall be installed to avoid the inlet side of the measuring instrument, and the protector Precautions shall be installed to prevent damage to the paddle. - For side mounting installations, the entrance to the electric wire shall be installed facing the ground Installation to maintain the waterproof function. -
Page 9: Maintenance
HLV Series Maintenance The life span of key parts depends on user’s environment and can be used optimally through periodic check. Therefore, regular inspection ensures optimal performance of product, so take regular inspection and maintenance at least every year. In addition, check for the exterior of the product like visual damage and remove the product to make sure that it rotates properly when the paddle is rotated by hand. -
Page 10: Safety And Environment
You can request A/S at our website or by contacting our headquarters. ■ Headquarters ․ Factory ․ Laboratory Contact Number ADRESS: HITROL CO., LTD 141, Palhakgol-gil, Jori-eup, Paju-si, Gyeonggi-do, Korea T E L : 031-950-9700 (Headquarters & A/S) F A X : 031-943-5600 (Headquarters & A/S)
