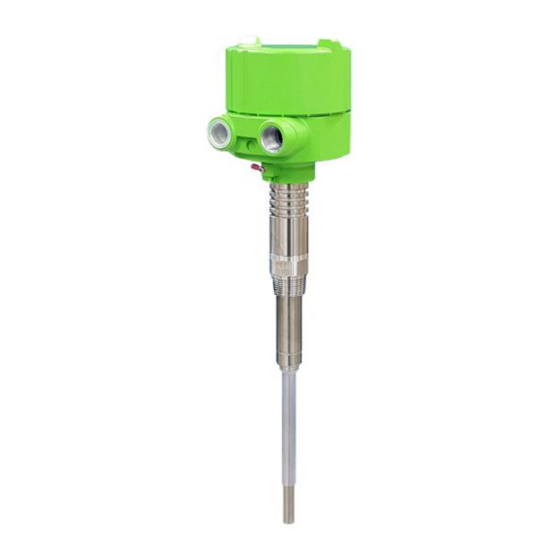

Capacitance type level switch
Hide thumbs Also See for HCC-95P Series:
Table of Contents

Advertisement

Quick Links

Download this manual
HITROL CO., LTD.
HEAD OFFICE. FACTORY. R&D INSTITUDE
62-182,BONGILCHEON-RI,CHORI-EUP
PAJU CITY, GYEONGGI DO,KOREA
PAJU CITY, GYEONGGI-DO,KOREA
TEL : (00)-82-31-943-0875
FAX : (00)-82-31-943-0878
Technical & Installation Manual
HCC-95P series_M_E
Capacitance Type Level Switch
HITROL CO., LTD.
HCC-95P series
HPC-95P series
HPC 95P series
1

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the HCC-95P Series and is the answer not in the manual?

Questions and answers

Related Manuals for HITROL HCC-95P Series

Summary of Contents for HITROL HCC-95P Series

  • Page 1 HITROL CO., LTD. HEAD OFFICE. FACTORY. R&D INSTITUDE 62-182,BONGILCHEON-RI,CHORI-EUP PAJU CITY, GYEONGGI-DO,KOREA PAJU CITY, GYEONGGI DO,KOREA TEL : (00)-82-31-943-0875 FAX : (00)-82-31-943-0878 Technical & Installation Manual Capacitance Type Level Switch HCC-95P series HPC 95P series HPC-95P series HCC-95P series_M_E HITROL CO., LTD.

  • Page 2: Table Of Contents

    8-1 Cautions on installation information 8-2 Cautions on moving and 14-1 Limited warranty and service separation 14 2 C 14-2 Contact information 8-3 Cautions on the incoming method of external lines (explosion proof product) 8-4 Cautions on grounding HCC-95P series_M_E HITROL CO., LTD.

  • Page 3: Product Overview

    The following explains how to get the capacitance when the Tank is a cylinder shape. The following explains how to get the capacitance when the Tank is a cylinder shape. C : Capacitance (pF) ε : non-permittivity L : Probe Length D : Tank’s diameter d : Probe’s diameter HCC-95P series_M_E HITROL CO., LTD.

  • Page 4: Specifications

    Power supply AC 90~240V, DC24V Power consumption Power consumption about 3VA about 3VA Response speed Delay time 0.5~30 sec Operation display Dynamic resistance 20 kohm or more Sensitivity 0.5 Pf Control range 5~75Pf(from BCD switch) HCC-95P series_M_E HITROL CO., LTD.

  • Page 5: Installation And Cautions

    - When installing on the Low Level, be careful with Dead Stock and Material Bridge. - Set Time Delay that delays the operation of output Relay appropriately when Set Time Delay that delays the operation of output Relay appropriately when measure objects inside of Tank has mobility. HCC-95P series_M_E HITROL CO., LTD.

  • Page 6: Connections

    - Make sure LED-G and LED-R are ON when power is supplied. - This product basically provides DPDT and connects lines by using COM and N.O terminals when using a high contact point. - It should be grounded externally. HCC-95P series_M_E HITROL CO., LTD.

  • Page 7: Operation

    6) Turn LED-G and LED-R ON by adjusting FINE and set FINE to a position where it turns them OFF again. 7) Make sure LEDs are ON and Relay is operating by adding measure objects to Probe (Sensor). 8) Set TIMER to the desired time 8) Set TIMER to the desired time. HCC-95P series_M_E HITROL CO., LTD.

  • Page 8: Maintenance

    - Separate them after checking the water level and measure objects inside of Tank. - When doing the separation work, wear gloves to avoid any burns caused by overheated products. - Do not open the cover of the product if there exists any explosive gas. HCC-95P series_M_E HITROL CO., LTD.

  • Page 9: Cautions On Moving Assembly And Installation

    Connect the grounding line after pulling out terminal lugs when the power line is bigger than 3.1㎟. Cautions: When connecting to the internal grounding terminal after pulling out terminal lugs, washers should be used (to prevent loosening screws). HCC-95P series_M_E HITROL CO., LTD.

  • Page 10: Instructions For Safety And Environment

    If you have product related questions, check the serial number on the product and then contact the head office. Serial number is a unique number that identifies each product. < Explosion-proof Certificate> < Nameplate > HCC-95P series_M_E HITROL CO., LTD.

  • Page 11: Instructions For User Education

    Relay doesn’t operate when Adjust the sensitivity again according measure objects cover Probe. to the adjusting method. Check the power supply Check the power supply. Check whether it’s not measured due to the low permittivity of measure objects. HCC-95P series_M_E HITROL CO., LTD.

  • Page 12: Outside View Of The Product

    13. Outside view of the product 13.2 SENSOR (LEQUID) HCC-95P (GENERAL TYPE) HCC-95P (HIGH TEMP. TYPE) HCC-95P series_M_E HITROL CO., LTD.
  • Page 13 13. Outside view of the product 13.1 SENSOR (SOLID) HCC-95P (GENERAL TYPE) HCC-95P (HIGH TEMP. TYPE) HCC-95P series_M_E HITROL CO., LTD.
  • Page 14 13. Outside view of the product 13.1 SENSOR (SOLID) HCC-95P series_M_E HITROL CO., LTD.

  • Page 15: Limited Warranty And Contact Information

    14. Limited warranty and contact information 14-1 Limited warranty and service HITROL CO., LTD. warrants this product for a period of one year and provides service without any cost only when instructions for use are followed. Customers may need to pay for the service regardless of the warranty period if the service request is not for malfunctions of the product.
