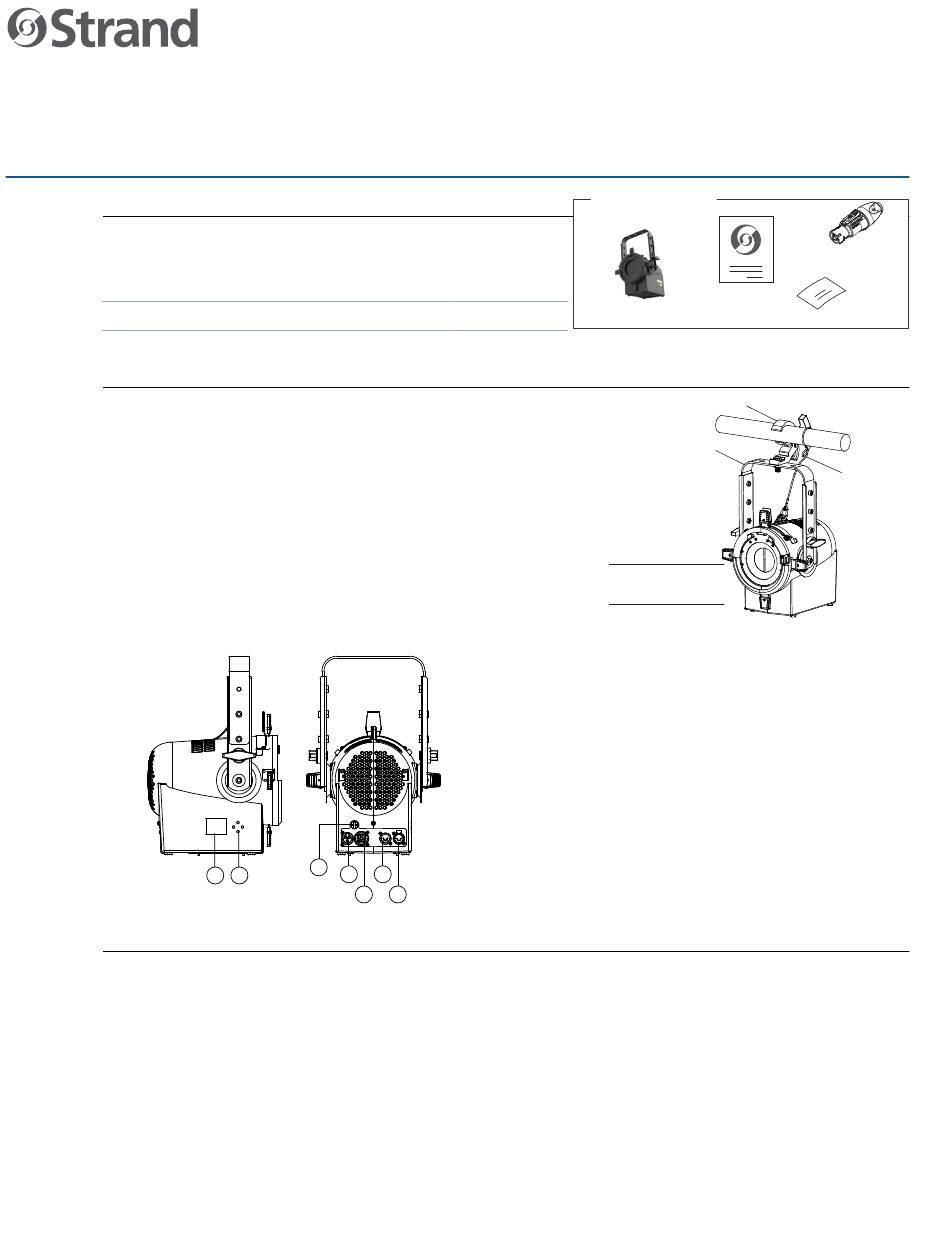

Strand Acclaim LED PLE Quick Start Manual

AcclAim lED PlE

OVERVIEW

This document provides basic setup instructions and safety
warnings for the following product(s):
acclaim Led PLe (black body)
acclaim Led PLe (white body)

iNStaLLatiON aNd SetuP

MOUNTING

The unit should be mounted via its screw holes on the bracket. Always
ensure that the unit is firmly fixed to avoid vibration and slipping while
operating. Always ensure that the structure to which you are attaching
the unit is secure and is able to support 10 times the unit's weight. Always
use a safety cable that can hold up to 12 times the weight of the unit when
installing the fixture.
The luminaire must be mounted by professionals.

SET UP

SHOrtcut keYS

64511-003
64511-103
3
4 6
1 2
5
912400576889
912400576890
1
2
3
4
5
6
7
7
1
Quick Start Guide
INCLUDED ITEMS
QUICK START GUIDE
QUICK START
(this document)
GUIDE
AcclAim lED PlE
Clamp
Yoke
NOTE:
Lens tube
sold separately.
Lcd display - shows menu and selected function
Buttons:
MeNu - to select programming functions
dOWN - to go forward in selected functions
uP - to go backward in selected functions
eNter - to confirm the selected function
FuSe (t 3.15a) - protects the unit from
overcurrent damage
POWer iN - connects to power supply
POWer Out - connects to next fixture
dMX iN - 5-pin XLr cable to link the dMX
console
dMX Out - 5-pin XLr cable to link next fixture
4443581625988
POWER
POWER CONNECTOR
CONNECTOR
WARRANTY
CARD
D R A C Y T N A R R A W
Safety Cable
