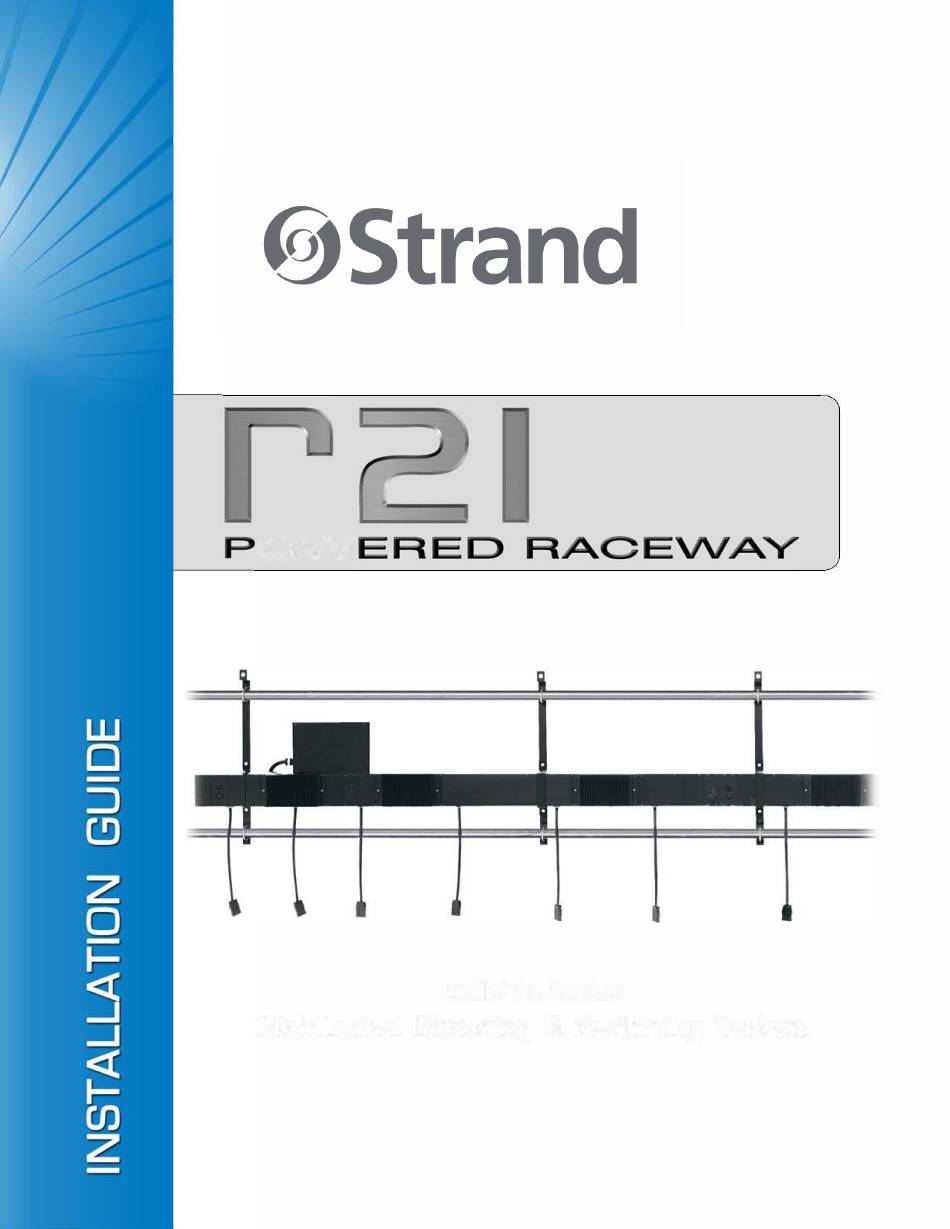

  • Page 1 PHILIPS Strand Lighting Built-To-Order Distributed Dimming & Switching System...
  • Page 2 Vari-Lite. Its sole purpose is to provide the user with conceptual information on the equipment mentioned. The use of this document for all other purposes is specifically prohibited. Document Number: 2-450334-010 Rev. A Version as of: 08 January 2014 R21 Powered Raceway Installation Guide...

  • Page 3: Important Safeguards

    R21 Powered Raceway Installation Guide IMPORTANT SAFEGUARDS When using electrical equipment, basic safety precautions should always be followed including the following: a. READ AND FOLLOW ALL SAFETY INSTRUCTIONS. b. Do not use outdoors. c. Do not mount near gas or electric heaters.

  • Page 4: Table Of Contents

    Complete and Test ..................................21 Technical & Accessories Technical Information................................22 Mounting Hardware.................................. 22 Maintenance Procedures Replacing a Dimmer or Relay Module ............................. 23 Appendix A. R21 Powered Raceway Dimmer / Relay Module DIP Switch Settings ................... 24 Table of Contents...

  • Page 5: Preface

    PREFACE 1. About This Guide The document provides installation instructions for all configurations of the R21 Powered Raceway. Please read all instructions before installing or using this product. Retain this guide for future reference. • R21 Powered Raceway Configuration: 96350- aa-bb(bb)-cc(cc)-dd(dd)-e(e)-ff(ff)

  • Page 6: Additional Resources For Dmx512

    OVERVIEW 1. Installation and Checkout Sequence The R21 Powered Raceway is shipped from the factory in a ready-to-install configuration. The following steps will be required to successfully install the unit(s) at your location: Unpack and Inspect Remove all components from shipping container(s) and inspect for damage. Compare the equipment you received to the packing list.

  • Page 7: Components R21 Powered Raceway

    1. R21 Powered Raceway The R21 Powered Raceway - up to 96 feet long - contains one DMX Headend (one required per universe), up to forty-eight 20A Dual Dimmer and/or Relay Modules, and at least one Power Terminal Box (PTB). The number of Power Terminal Boxes is determined by the location and the number of necessary power feeds.

  • Page 8: Raceway Control Module

    R21 Powered Raceway Installation Guide 2. Raceway Control Module The Raceway Control Module (RCM) is used to configure the R21 Powered Raceway. The RCM comes in a 19-inch "rack mount" configuration for local applications. Escape Menu Menu Navigation Button Display...

  • Page 9: Dimmer Modules

    4. Dimmer Modules Overview R21 Powered Raceway Dimmer Modules contain one 20A dual dimmer with 20A (2400W) power shared between the two dimmers. Each dual dimmer module includes two Focus/LED Indicator buttons, which function as both focus adjustment controls and status indicators.

  • Page 10: Relay Modules

    5. Relay Modules Overview R21 Powered Raceway Relay Modules contain one 20A dual relay with 20A (2400W) power shared between the two relays. Each dual relay module includes two Focus/LED Indicator buttons, which function as both focus adjustment controls and status indicators.

  • Page 11: Dmx Single Output Plate

    6. DMX Single Output Plate Overview As an option, the R21 Powered Raceway can be configured to include single DMX output plates to connect DMX controlled equipment that may be hung with the R21 Powered Raceway, but not controlled by a dimmer or relay module.

  • Page 12: Mechanical Considerations

    • Dry Locations Only - The R21 Powered Raceway can only be installed in an "office clean" area that is never exposed to moisture of any kind. Vari-Lite is not responsible for damage to equipment caused by paint, dust, solvents, cleaning supplies, improper storage or abuse.

  • Page 13: Wire Routing

    • For power wire-type requirements, refer to Strand Lighting drawings, contract drawings, and applicable codes. Note: For assistance or questions regarding installing or connecting power to the R21 Powered Raceway, please contact your Authorized Strand Dealer or Vari-Lite technical support at 1-214-647-7880.

  • Page 14: Installation Procedure

    The 71444 Single-Pipe Overhung Hanger Bracket is used to attach an R21 Powered Raceway to a single 1-1/2" schedule 40 pipe with no additional overhead support. The 71440 Single-Pipe Rigged Hanger Bracket is used to suspend a single 1-1/2" schedule 40 pipe and an R21 Powered Raceway from a rigging system or a ceiling.

  • Page 15: Double-Pipe Methods

    Figure 9: Double-Pipe Methods Threaded Rod and Wall Mount Methods The 71445 Threaded Rod Bracket is used to suspend one 1-1/2" schedule 40 pipe and an R21 Powered Raceway from a rigging system using threaded rod support. The 71442 Wall Mount Hanger Bracket is used to permanently mount an R21 Powered Raceway to a wall.

  • Page 16: Connecting Power Wiring

    Overview The R21 Powered Raceway is designed to be wired from the top or side of the Power Terminal Box (see Figure 12 on next page). Eight knock-out holes are provided (four on top, two on each side) for this purpose. We recommend connecting the Line Power wiring and Grounds (if applicable) first, and the Load Neutral and Load Hot wires last.

  • Page 17: Line Power

    R21 Powered Raceway Installation Guide Line Power WARNING! You must have access to a main circuit breaker or other power disconnect devices in order to install any wiring. Failure to disconnect power before installing or servicing the unit may result in injury.

  • Page 18: Connecting Control Wiring

    For details regarding the specific low-voltage control cable wiring for your project, refer to your project drawings as prepared by Strand Lighting. The low-voltage control cable will connect to the R21 Raceway Control Module (RCM). The RCM comes in a 19-inch "rack mount" configuration for remote applications.

  • Page 19: Dmx512

    R21 Powered Raceway Installation Guide DMX512 DMX512 XLR Pin WE Color Code IECA Color Belden Standard CAT5e Terminal Name (e.g., Belden #8132) Code Color Code Color Code Brown (8) Drain Wire (Shield) Drain (Shield) Drain (Shield) White/Brown (7) Black DMX -...

  • Page 20: Vision.net Networks (Svn/485)

    R21 Powered Raceway Installation Guide Vision.net Networks (SVN/485) Pin Number Signal Name CAT5e Wire Color Data + White w/ Orange Data - Orange SHIELD Shield +24 VDC White w/ Green Signal GND Green +24 VDC White w/ Blue Signal GND...

  • Page 21: Termination Of Ethernet Cable

    R21 Powered Raceway Installation Guide Termination of Ethernet Cable Function Pair # Pin Out (T568B) Wire Color (T1) White w/ Blue (R1) Blue Tx + (T2) White w/ Orange Tx - (R2) Orange Rx + (T3) White w/ Green Rx - (R3)

  • Page 22: Master/Slave Wiring (Dim96)

    R21 Powered Raceway Installation Guide Master/Slave Wiring (DIM96) Pin Number Signal Name CAT5e Wire Color + 24 VDC White w/ Orange +24 VDC Orange + RX White w/ Green - RX Green + TX White w/ Blue - TX Blue...

  • Page 23: Installing Cable Tray (If Applicable)

    5. Installing Cable Tray (if applicable) Once the R21 Powered Raceway is mounted, install the cable tray (basket) if this optional component has been included. The cable tray is installed using the appropriate holes at the top of the unit. Dress control cables in cable tray as required.

  • Page 24: Technical & Accessories

    1. Technical Information Each R21 Powered Raceway is a customer specific, built-to-order distributed dimming system. Below are the common features and specifications of the R21 Powered Raceway dimming system. For specific information on your system, please refer to Vari-Lite or contract drawings.

  • Page 25: Maintenance Procedures

    WARNING! Failure to disconnect power before servicing may result in injury. To replace a dimmer or relay module: Step 1. Turn off all power to R21 Powered Raceway. Step 2. At dimmer or relay module, loosen four screws and partially remove from system (Figure 15).

  • Page 26: R21 Powered Raceway Dimmer / Relay Module Dip Switch Settings

    R21 Powered Raceway Installation Guide APPENDIX A. 1. R21 Powered Raceway Dimmer / Relay Module DIP Switch Settings Dimmer 1-2 Dimmer 33-34 Dimmer 3-4 Dimmer 35-36 Dimmer 5-6 Dimmer 37-38 Dimmer 7-8 Dimmer 39-40 Dimmer 9-10 Dimmer 42-42 Dimmer 11-12...
  • Page 27 Dimmer 87-88 Module 45 Dimmer 89-90 Module 46 Dimmer 91-92 Module 47 Dimmer 93-94 Module 48 Dimmer 95-96 Figure 17: Dimmer / Relay Module DIP Switch Setting Chart (Part 2) R21 Powered Raceway Dimmer / Relay Module DIP Switch Settings...
  • Page 28 TECHNICAL GLOBAL 24HR TECHNICAL SUPPORT: Call: +1 214 647 7880 SUPPORT entertainment.service@signify.com NORTH AMERICA SUPPORT: Call: 877-VARI-LITE (877-827-4583) entertainment.service@signify.com EUROPEAN CUSTOMER SERVICE CENTER: Call: +31 (0) 543 542 531 entertainment.europe@signify.com © 2023 Signify Holding. All rights reserved. All trademarks are owned by Signify Holding or their respective owners.
