Strand Aurora 12 Quick Start Manual

12 led strip
Hide thumbs
1
2
3
4
5
6

Advertisement

Table of Contents

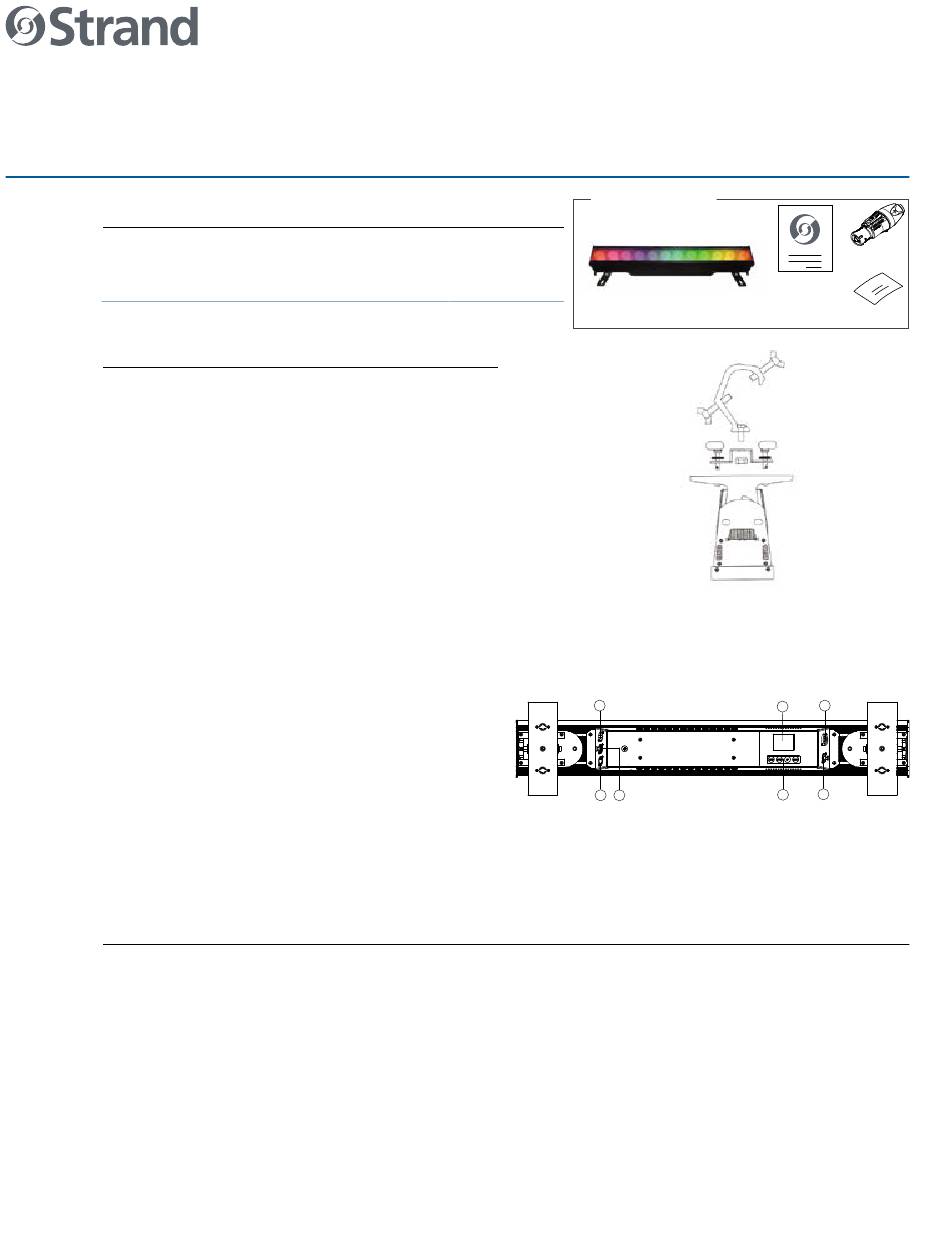

AurorA 12 LED Strip
OVERVIEW
This document provides basic setup instructions and safety
warnings for the following product(s):
aurora 12 Led Strip
iNStaLLatiON aNd SetuP
MOUNTING
The unit should be mounted via its screw holes on
the bracket. Always ensure that the unit is firmly
fixed to avoid vibration and slipping while operating.
Always ensure that the structure to which you are
attaching the unit is secure and is able to support
a weight of 10 times of the unit's weight. Always
use a safety cable that can hold up to 12 times the
weight of the unit when installing the fixture. The
luminaire must be mounted by professionals.
CONTROL PANEL
1
Lcd display - shows menu and selected function
2
Buttons:
MeNu - to select programming functions
dOWN - to go forward in selected functions
uP - to go backward in selected functions
eNter - to confirm the selected function
3
dMX iN - 5-pin XLr cable to link the dMX
console
4
dMX Out - 5-pin XLr cable to link next fixture
5
POWer iN - connects to power supply
6
POWer Out - connects to next fixture
7
artNet/sacN - rJ45 connector to link artNet/
sacN from source
Quick reFereNce dMX MaPS
The Aurora 12 LED Strip has the following DMX modes:
• SSCC Mode (Default) 1 Zone
• SSCC Mode 4 Cell
• SSCC Mode 12 Cell
• SQCC Mode 1 Zone
• SOCC Mode 1 Zone
• SOCC Mode 4 Cell
• SOCC Mode 12 Cell
Quick reference maps for each mode can be found on the following pages. For full DMX maps, refer to
the user manual.
64508-002
1
Quick Start Guide
INCLUDED ITEMS
QUICK START GUIDE
AurorA 12 LED Strip
4
6
7
64508002 rEV A 10/21
POWER
POWER CONNECTOR
CONNECTOR
QUICK START
(this document)
GUIDE
WARRANTY
D
R
A
C
Y
T
N
A
R
R
A
W
CARD
5
1
3
2

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the Aurora 12 and is the answer not in the manual?

Questions and answers

Related Manuals for Strand Aurora 12

Summary of Contents for Strand Aurora 12

  • Page 1 - rJ45 connector to link artNet/ sacN from source Quick reFereNce dMX MaPS The Aurora 12 LED Strip has the following DMX modes: • SSCC Mode (Default) 1 Zone • SSCC Mode 4 Cell • SSCC Mode 12 Cell •...
  • Page 2 Quick Start Guide 64508002 rEV A 10/21 AurorA 12 LED Strip SSCC MODE 4 CELL SSCC MODE (DEFAULT) 1 ZONE PARAMETER PARAMETER PARAMETER CHANNEL CHANNEL CHANNEL intensity 1 (High) ctO 2 intensity (High) intensity 1 (Low) intensity 3 (High) intensity (Low)
  • Page 3 Quick Start Guide 64508002 rEV A 10/21 AurorA 12 LED Strip SSCC MODE 12 CELL PARAMETER PARAMETER PARAMETER CHANNEL CHANNEL CHANNEL intensity (High) Magenta (Low) 4 ctO 8 intensity (Low) ctO 4 intensity 9 (High) Strobe intensity 5 (High) intensity 9 (Low)
  • Page 4 Quick Start Guide 64508002 rEV A 10/21 AurorA 12 LED Strip SOCC MODE 4 CELL SQCC MODE 1 ZONE PARAMETER PARAMETER PARAMETER CHANNEL CHANNEL CHANNEL intensity (High) cyan (High) 2 intensity (High) intensity (Low) cyan (Low) 2 intensity (Low) Strobe...

  • Page 5: Channel Parameter

    Quick Start Guide 64508002 rEV A 10/21 AurorA 12 LED Strip SOCC MODE 12 CELL PARAMETER PARAMETER PARAMETER PARAMETER CHANNEL CHANNEL CHANNEL CHANNEL intensity (High) Lime (High) 3 Lime (Low) 6 cyan (High) 9 intensity (Low) Lime (Low) 3 cyan (High) 6...

  • Page 6: Safety Warnings And Notices

    This equipment generates, uses, and can radiate radio frequency energy and, if not installed and used in accordance with Vari-Lite Strand system, service, and safety guidelines, may cause harmful interference to radio communications.
