DEMO MANUAL DC2397A

QUICK START PROCEDURE

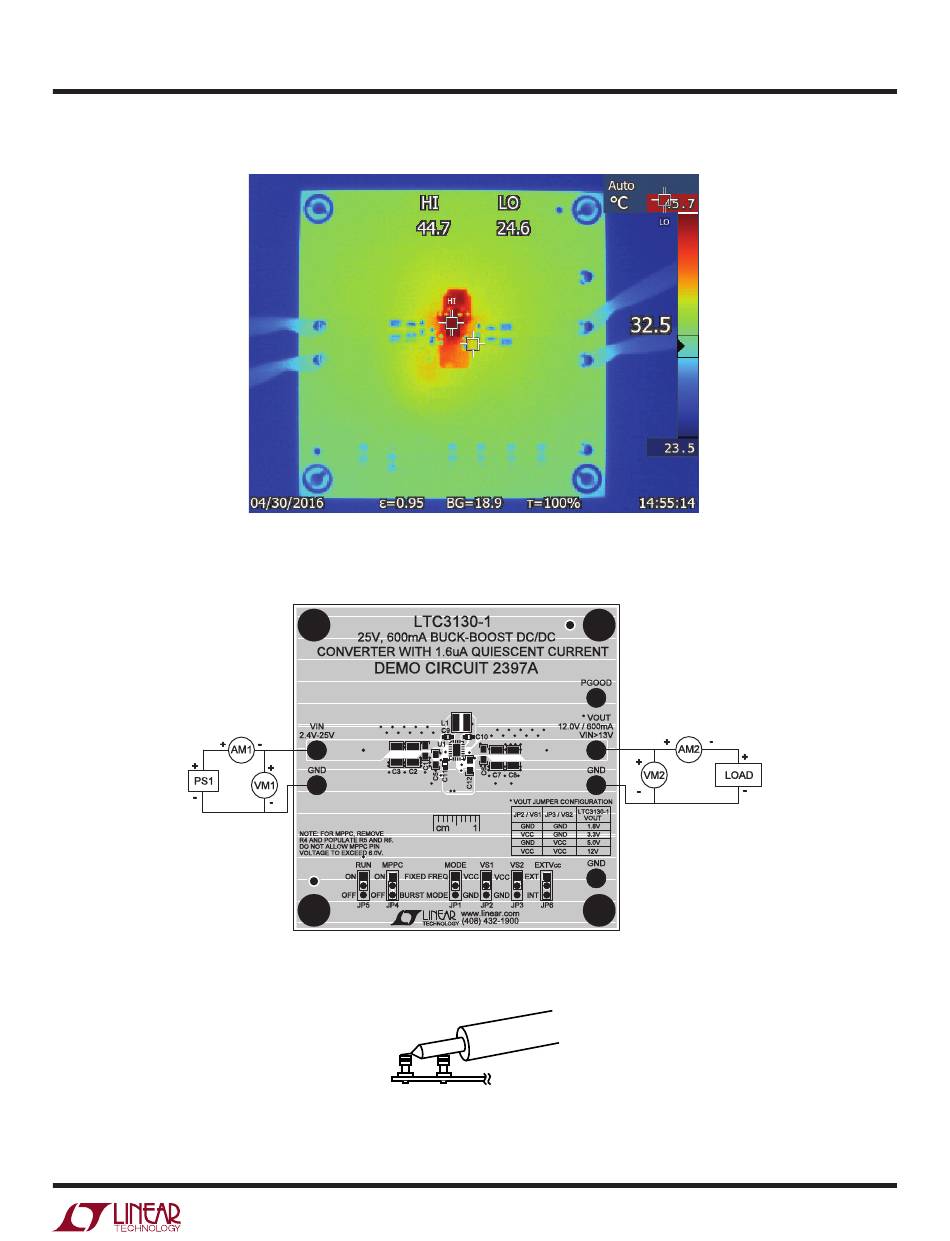

Figure 3. DC2397A Thermal Performance. V
= 12V, V
= 12V, Load = 600mA.
IN
OUT
Figure 4. Proper Measurement Equipment Setup
VIN
GND
Figure 5. Measuring Input or Output Ripple
dc2397af
3
