Description
The DC2296 is the starter kit for demonstrating the per-
formance and ease of use of the
complete temperature measurement system on a chip.
This kit includes the DC2209 (main demo circuit contain-
ing the LTC2983) and the DC2210 (a simple experiment
circuit allowing bread boarding). In addition to the starter
demonstration kit, sensor specific demonstration boards
highlighting the performance of RTDs, thermistors, or
thermocouples are also available.
• Universal Temperature Measurement Board – DC2211
• Thermocouple Board – DC2212
• Dedicated RTD Board – DC2213
• Dedicated Thermistor Board – DC2214
Digital Temperature Measurement System
LTC
2983, which is a
®

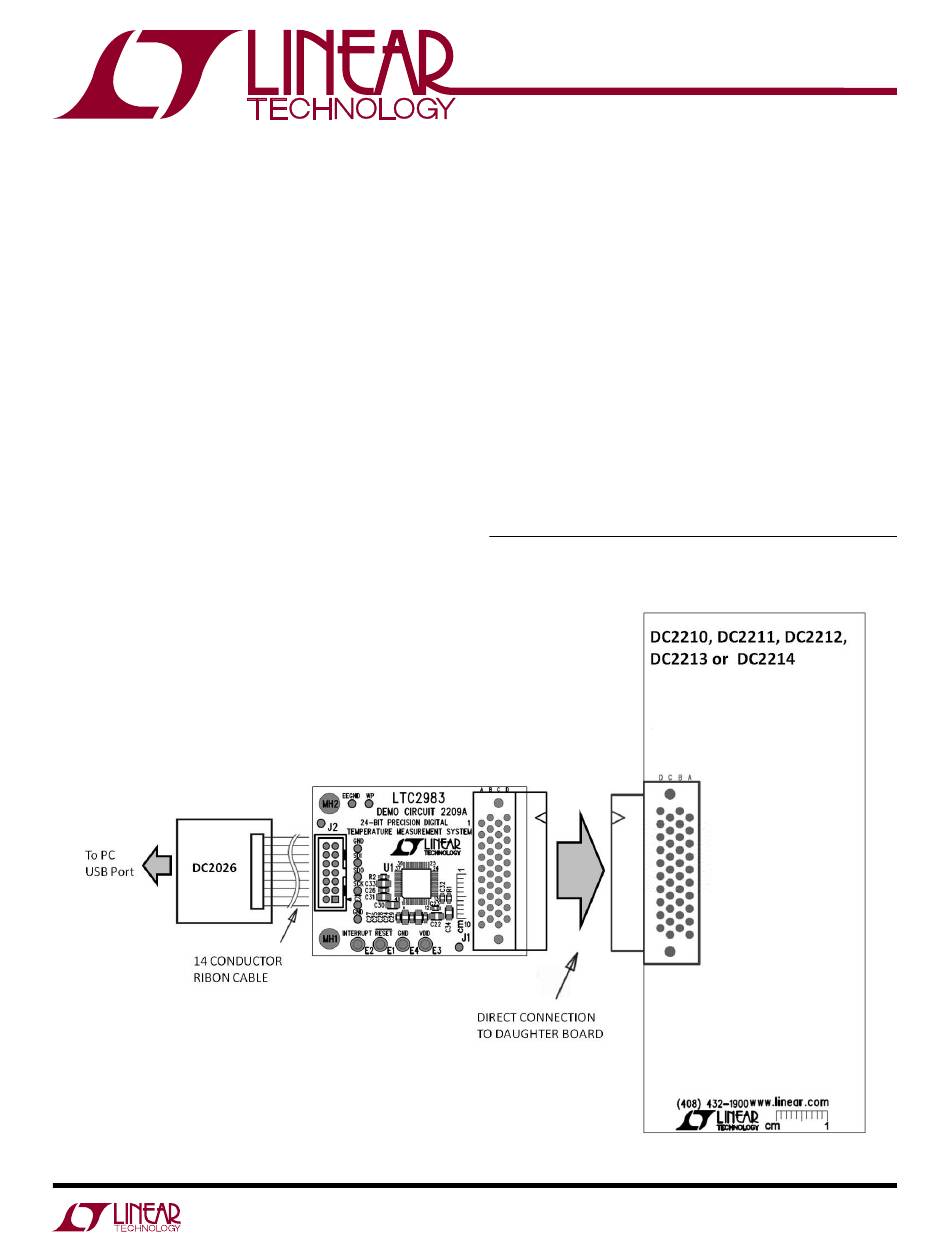

Figure 1. DC2209 Temperature Measurement Demonstration Board
DEMO MANUAL DC2296
DC2209 and DC2210
The DC2209 is a member of the QuikEval™ family of dem-
onstration boards. It is designed to allow easy evaluation
of the LTC2983 and may be connected to any one of the
sensor daughter boards.
These daughter boards allow evaluation of the various
LTC2983 sensor types (see Figure 1).
For the serial digital interface, the DC2209 may be con-
nected to the DC2026 Linduino™ One.
Design files for this circuit board are available at
http://www.linear.com/demo/DC2296
L, LT, LTC, LTM, Linear Technology and the Linear logo are registered trademarks and
QuikEval and Linduino are trademarks of Linear Technology Corporation. All other trademarks
are the property of their respective owners.
LTC2983
dc2296fa
