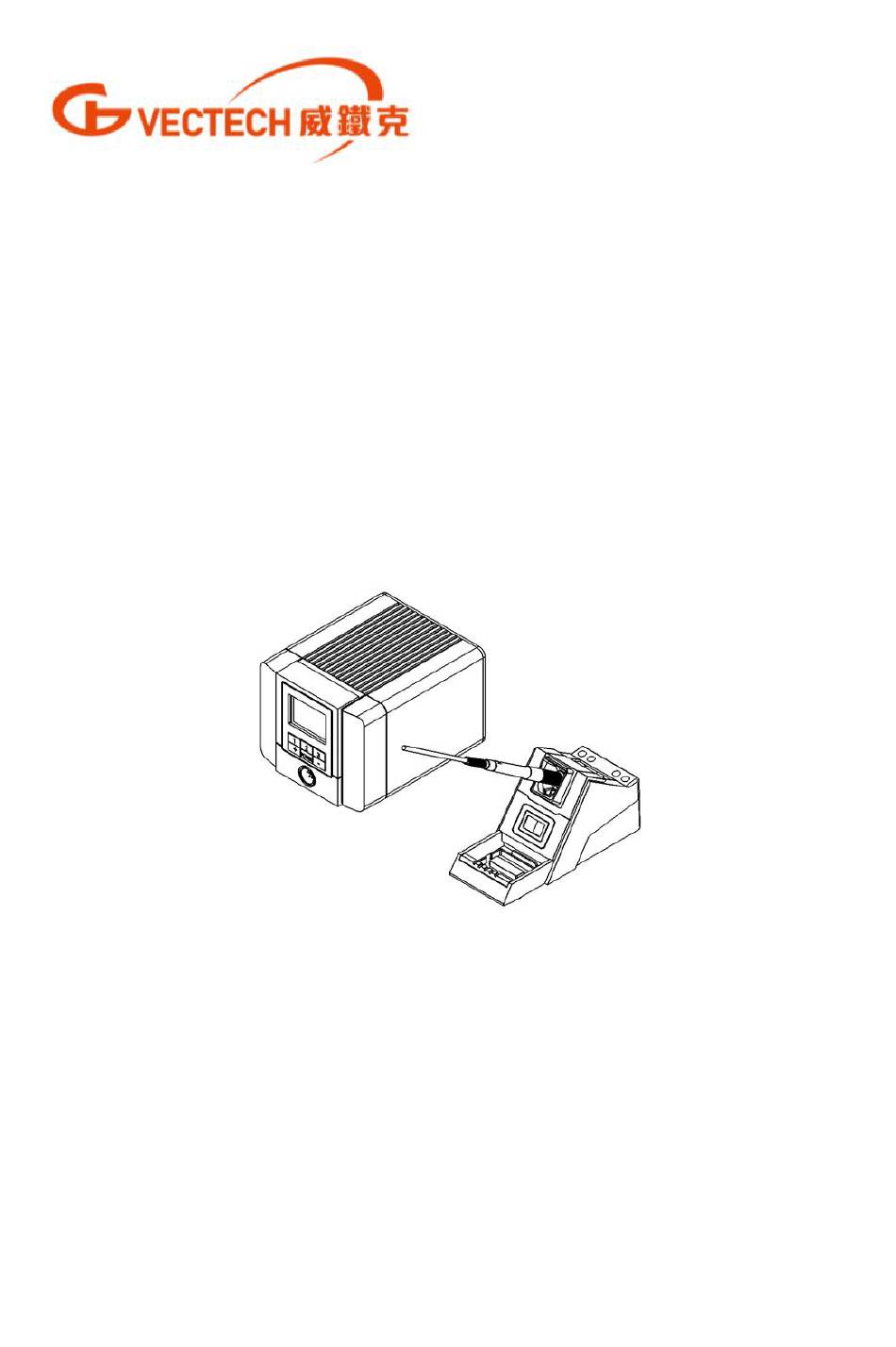

- Page 1 VECTECH S8 Soldering Station Instruction Manual Thank you for purchasing our products. Please keep the instruction manual properly for future reference.
-
Page 3: Table Of Contents
Contents 1. Safety Instructions................1 2. Overview....................2 3. Product Characteristics............... 2 4. Product Specifications.................3 5. Functional Descriptions...............4 5.1. Dimensions................4 5.2. Part Descriptions...............4 5.3. Key Descriptions............... 5 5.4. Function Descriptions of the Main Interface......5 6. Use of Holder and Sponge..............6 7. - Page 4 10.13. Tip selection................ 14 11. Temperature Calibration..............14 12.Maintenance of Tips................. 15 13.Selection of Tips................16 14.Troubleshooting.................17...
-
Page 5: Safety Instructions
1.Safety Instructions CAUTION During the installation and use of this product, all electrical safety regulations of the country and regions must be strictly observed. The power supply must be disconnected when disassembling the product. Do not operate with power on. ... -
Page 6: Overview
2.Overview This product is an intelligent precision soldering station. It adopts LCD display and mechanical buttons, making it more comfortable to use. Accurate and sensitive temperature sensor , fast heating and thermal recovery speed, compact soldering tip. 3.Product Characteristics Can preset process parameter in three channels, more practical. ... -
Page 7: Product Specifications
4.Product Specifications Product type Display Power consumption 150W(Max) Voltage AC 110V/220V Temperature range 100℃～450℃/ 212℉～842℉ Temperature stability ±2℃（No load） Ambient temperature 0～40℃ Tip to ground potential ＜2mV Tip to ground resistance ＜2Ω 169.6*137*114.5mm Dimensions (L×W×H） Weight About 2.9 Kg... -
Page 8: Functional Descriptions
5.Functional Descriptions 5.1.Dimensions Unit：mm 5.2.Part Descriptions Part Descriptions Main unit Handle Holder... -
Page 9: Key Descriptions
5.3.Key Descriptions Function Descriptions 1. Press on the main interface to switch between CH1, CH2 and CH3 2. Press “2” and “3” keys at the same time on the main interface to enter the menu setting interface. Press “1 “and 1/2/3 “3”... -
Page 10: Use Of Holder And Sponge
Symbols Descriptions Symbols Descriptions Black indicates ESD OFF, Temporary channel Red indicates ESD ON Heating state ℃/℉ ℃/℉ interchangeable Blue indicates the soldering 1.Indicates the heating prompt is ON. state 2 〓 2.Indicates that the set Red indicates the handle is temperature is reached vibrating. -
Page 11: Connection
7.Connection 1)Insert the seven-core plug at the other end of the soldering pencil into the seven-core socket on the main unit panel (pay attention to the insertion position of the plug), and place the soldering pencil in the holder. 2)Insert the power plug of the soldering station into the power socket. 3)Insert one end of the grounding core into the grounding jack of the soldering station, and connect one end to anti-static ground. -
Page 12: Menu Settings
10.Menu Settings Enter the menu setting interface. Press and hold "2" and "3" keys at the same time to enter the menu setting interface. 10.1.Channel Temperature Settings "2" key " " 1) Press CH1-3Temp setting. 2)Press "1" to select channel 1~3, and press the "+" or "-" to change the value. -
Page 13: Temperature Unit Setting
10.2.Temperature Unit Setting 1) Press "1", "+" or "-" key to temperature Unit setting. 2) Press "2" key to enter the Celsius or Fahrenheit unit selection interface, and press "1" key to select the required unit. 3) Press "2" to save and "3" key to return to the main interface. 10.3.Sleeping Time Setting 1) Press "1", "+"... -
Page 14: Close Time Setting
10.4.Close Time Setting 1) Press "1", "+" or "-" key to "Close" setting. "2" 2) Press the key to enter the close setting interface, press "1" to select the Close On or OFF function, after choosing ON, press the "+" or "-" key to set the close time, the time setting range: 001Min ~ 240Mins. -
Page 15: Password Setting
setting range of the upper and lower limits of the alarm temperature is: 2 ~ 99 ℃. 3) Press "2" to save, press "3" to return to the main interface. 10.7.Password Setting 1) Press "1", "+" or "-" key to select "Password" setting. "2"... -
Page 16: Esd Test Settings
10.8.ESD Test Settings 1) Press "1", "+" or "-" key to select "ESD Test" setting. "2" to enter ESD test 2) Press setting interface.Press "1" to select ESD Test mode (ON/OFF). 3) Press "2" to save, press "3" to return to the main interface. 10.9.Soldering Hint Settings 1) Press "1", "+"... -
Page 17: Patterns
10.11.Patterns 1) Press "1", "+" or "-" key to select "Patterns" setting. "2" 2)Press to enter the pattern setting interface. Press "1" to select pattern mode Safe or Quick pattern. 3) Press "2" to save, press "3" to return to the main interface. Note: After selecting the Safe mode, the heat element will heat-ups after coperation confirmed,if Quick mode is selected,the heat element will heat-ups immediatelly after power on. -
Page 18: Tip Selection
10.13.Tip selection View current tip selections. 11.Temperature Calibration Whenever the tip is replaced, the temperature of the tip shall be recalibrated. Calibrate with thermometer 1) Set a certain temperature value of the soldering station (For example:350℃). 2) When the temperature is stable, measure the temperature of the tip with the thermometer, and record the reading value(For example:355℃). -
Page 19: Maintenance Of Tips
* It is recommended to use a 191/192 thermometer to measure the tip temperature. * If the password is locked, the temperature cannot be calibrated, and the correct password must be input to operate. 12.Maintenance of Tips 1) When the new tip is used for the first time, add tin to protect it when the temperature is 250 ~ 280 ℃. -
Page 20: Selection Of Tips
13.Selection of Tips 1) It is very important to correctly select the size and shape of tip. A suitable tip can improve the efficiency and increase the durability. 2) The size of tip is directly related to the heat capacity. For continuous soldering, the larger the tip, the less the temperature drop. -
Page 21: Troubleshooting
15.Troubleshooting Error Message Descriptions Temperature sensor is not connected Heater Abnormity or it is inserted in an error position, re-connect it after power OFF. 1. Soldering tip is not connected. No handle 2. Soldering tip is not suitable for the station. - Page 23 W a r r a n t y C a r d ● Warranty Card The warranty period of this product is calculated from the date of Purchase. During the warranty period, if the product breaks down during normal use, show the original warranty card and Type: enjoy free service in the authorized...
