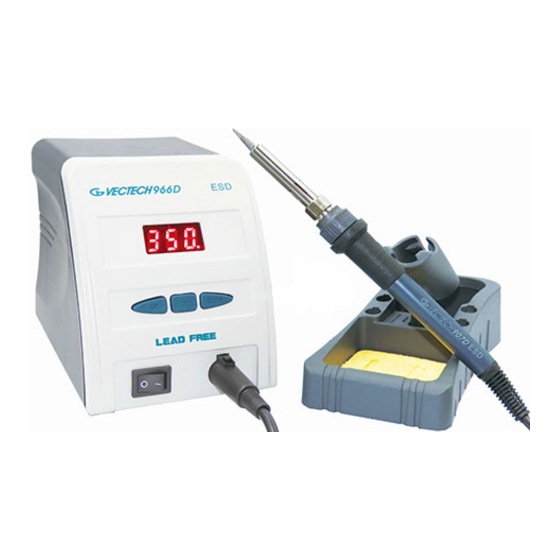

VECTECH966D
Lead Free Soldering Station
INSTRUCTION MANUAL
Thank you for purchasing the lead free soldering station. It is designed for lead
free soldering. Please read this manual before operating the unit. Store this manual
in a safe, easily accessible place for future reference.

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the 966D and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Related Manuals for VECTECH 966D

Summary of Contents for VECTECH 966D

  • Page 1 VECTECH966D Lead Free Soldering Station INSTRUCTION MANUAL Thank you for purchasing the lead free soldering station. It is designed for lead free soldering. Please read this manual before operating the unit. Store this manual in a safe, easily accessible place for future reference.

  • Page 2: Safety Instruction

    1. Safety Instruction Confirm the Tip has been installed before turning on the unit, otherwise the Heating Element will be broken. Warning: In this instruction manual, “Warning”, “Caution” and “Note” are defined as follows. Warning: Misuse may potentially cause death of, or serious injury to the user. Caution: Misuse may potentially cause injury to the user or physical damage to the objects involved.
  • Page 3 into a 3-terminal grounded socket. Do not modify plug or use an ungrounded Tips power socket. If an extension cord is necessary, use only a 3-wire extension cord that provides grounding.  Don‟t use the unit for applications other than soldering. ...
  • Page 4 11. Parts name 3. Specification Power Consumption Range of temperature 80℃~480℃ iron handle Temperature Stability ±2℃ Without air flow and no load display handle cord Max Ambient Temperature 40℃ Working voltage of heating element 28V AC sponge Tip to ground potential <2mv Tip to ground resistance <2Ω...

  • Page 5: Replacing The Fuse

    larger sponge above it wet at all times. 3. The large sponge may be used alone without small sponge and water. Dampen the large cleaning sponge and place it on the iron holder base. 4.2 Connecting Caution: Be sure to turn off the power switch before connecting or disconnecting the soldering iron.

  • Page 6: Operation

    1. Turn the nut (1) counterclockwise and remove the tip enclosure (2), the tip keys are used to select the value. (3). Temperature rising: Press UP key directly. If so, the setting temperature will 2. Turn the nipple (4) counterclockwise and remove it. raise 1℃...
  • Page 7 2. Continue holding down the UP and DOWN keys until the display shows supply, the display window will show “H-E”. This indicates the possibility of a 3. When the display shows , the station is in parameter-input mode. heater malfunction. 5.2 Input the previous password 10.

  • Page 8: Error Messages

    ② Remove scale and oxides from the tinned area of the tip with 80-grit the time, it must repeat the above steps to input the new password again. abrasive polyurethane foam stock or a 100-grit emery cloth. 4. If the password is the same as the next, the new password can be changed ③...
  • Page 9 5. After using, wipe the tip and coat the tip with fresh solder. It helps to prevent 7. To select a correct tip for a solder application tip from oxidation. 1. Pick a tip that maximizes contact area between the tip and solder Joint. Maximizing contact area gives the most efficient heat transfer, allowing 8.2 Tip’s maintenance operators to produce high quality solder joints quickly.
