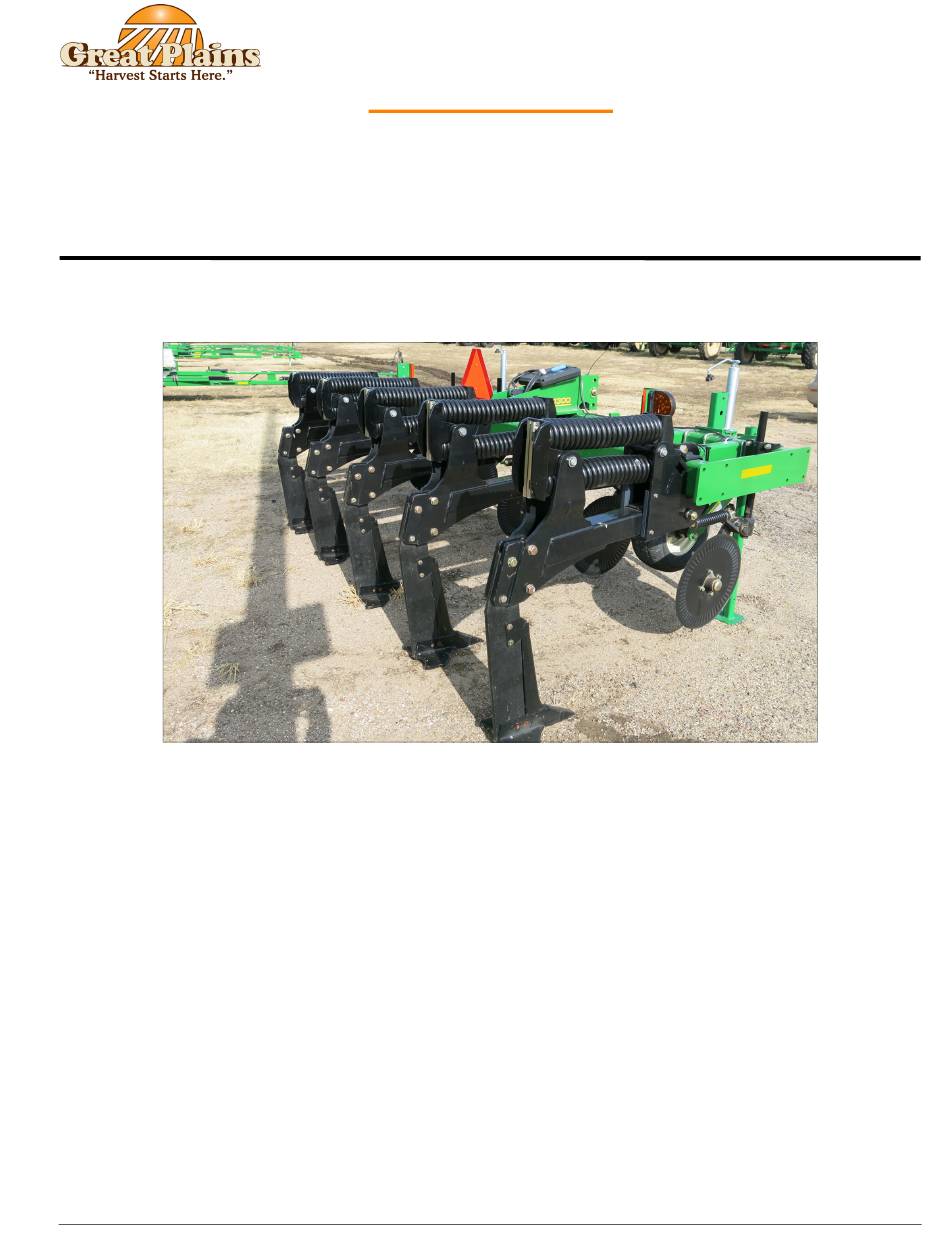

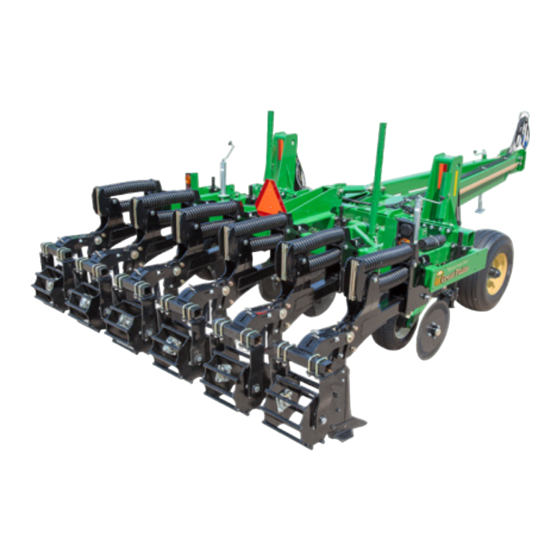

GREAT PLAINS SS1300 Field Adjustment Manual

Inline sub-soiler

FIELD ADJUSTMENT GUIDE

Tillage

InLine Sub-Soiler

Date: March 9, 2015

Document #

TLUS550C-0001A

Models Affected:SS1300, SS1700, SS1800, SS2000

General Information

Proper servicing and adjustment is key to the long life of all farm equipment. With careful and systematic

inspection of equipment, costly maintenance, time and repair can be avoided. The following information

will assist with recommended servicing and adjustments:

48715

1 of 3

Document

#TLUS550C-0001A

Table of Contents

Do you have a question about the SS1300 and is the answer not in the manual?

Page 1 Date: March 9, 2015 Document # TLUS550C-0001A Models Affected:SS1300, SS1700, SS1800, SS2000 General Information Proper servicing and adjustment is key to the long life of all farm equipment. With careful and systematic inspection of equipment, costly maintenance, time and repair can be avoided. The following information...
Page 2 Auto Reset Shank Adjustment: The dual spring package should be preloaded so that both top and bottom springs are loaded evenly and measure 23.8 inches in length. Note: The spring pack is factory set and should not be disassembled in the field. Serious injury can result from instant release of stored energy.
Page 3 Coulter Spring Adjustment: Coulter springs are preset at the factory giving coulters an initial operation force of 400+lbs. This setting is adequate for most field conditions. Resetting the coulter spring shorter than 9 7/8 inches can cause premature failure of parts.
