Vixen ATERA II Series Instruction Manual

Hide thumbs

Advertisement

Quick Links

Download this manual
Instruction Manual for ATERA
Series
ATERA
H14×42WP, H12×30, H10×21
This instruction manual is in common between H14x42WP, H12x30, and H10x21
models of ATERA
binoculars with vibration-canceller. It describes the H14x42
mainly, but almost the same usage is applied for the H12x30 and H10x21.

Advertisement

loading
Need help?

Need help?

Do you have a question about the ATERA II Series and is the answer not in the manual?

Questions and answers

Related Manuals for Vixen ATERA II Series

Summary of Contents for Vixen ATERA II Series

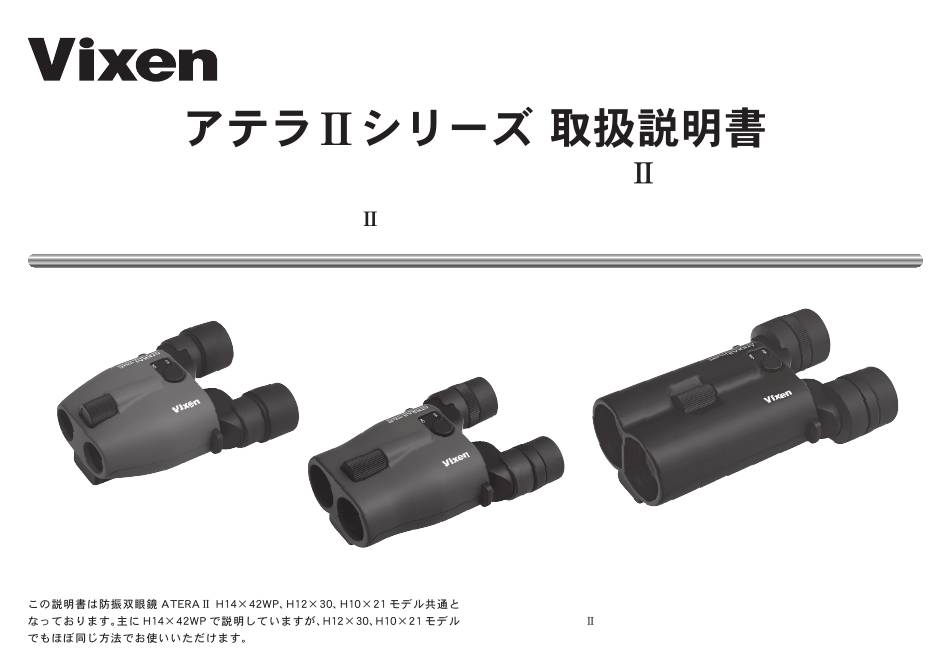

  • Page 1 Instruction Manual for ATERA Series ATERA H14×42WP, H12×30, H10×21 This instruction manual is in common between H14x42WP, H12x30, and H10x21 models of ATERA binoculars with vibration-canceller. It describes the H14x42 mainly, but almost the same usage is applied for the H12x30 and H10x21.
  • Page 11 〜...
  • Page 12 PREFACE SAFETY PRECAUTIONS Thank you for your purchase of the Vixen products. WARNING For safety use, observe the following precautions. Denotes that, if ignored or applied incorrectly, creates the possibility of death or serious personal injury. Before using the product for the first time, read "HOW TO USE" and "OPERATION PRECAUTIONS".
  • Page 13 SAFETY PRECAUTIONS SAFETY PRECAUTIONS WARNING CAUTION N e v e r l o o k a t s u n t h r o u g h t h e p r o d u c t . Be careful not to pinch your fingers when Instantaneous and irreversible damage to your adjusting the interpupillary distance.
  • Page 14 Figure 7 Figure 9 accidentally hit or drop the product and the image appears abnomal, please consult Vixen For a long-term storage, place the product in customer service. (Ref. Figure 8) a plastic bag or an airtight container with a desiccant agent.
  • Page 15 OPERATION PRECAUTIONS CARE AND MAINTENANCE To clean the body surface, dust it off lightly and wipe it using a clean cloth. After usage by seaside, wipe it with a clean moist cloth to remove the salt and then wipe it dry with a dry cloth.
  • Page 16 PART NAME / CONTENTS … Objective Lens … Battery Cap (Backside) … Battery Compartment (Backside) … Power Switch … Binocular Body … Strap Eyelet … Twist-up Rubber Eyecup (H14x42W, H12x30) Detachable Rubber Eyecup (H10x21) … Eyepiece Eyepiece side … Focusing Wheel … Power Indicator (Used as Mode Indicator also) …...
  • Page 17 HOW TO USE HOW TO USE Insert the Batteries S l i d e t h e p o w e r s w i t c h t o t h e O N P r e p a r e t w o o f f r e s h A A A a l k a l i n e position.
  • Page 18 HOW TO USE HOW TO USE Take off the eyepiece cap from the Turn on the power switch. The vibration canceller starts activating and binoculars. If you use the binoculars the green power indicator will light. with your eyeglasses worn, use the Note: rubber eyecups as follows: It will allow The binoculars may buzz and can slightly vibrate as you switch the...
  • Page 19 HOW TO USE HOW TO USE Diopter adjustment. While looking The ATERA series binoculars have two modes of anti-vibration for through the left eyepiece with the left canceling vibration. Choose your preferred one depending on Focusing eye, focus on an object at a distance by circumstances.
  • Page 20 HOW TO USE About the Vibration Canceller Function Attaching the Straps This product employs the vibration canceling function called the gimbals Attach the provided strap to the strap control system. If sudden movement (such as moving down the eyelets as shown in the figure on the binoculars suddenly from its lateral position) happens during the left.
  • Page 21 Specifications Model H10×21 H12×30 H14×42WP Model H10×21 H12×30 H14×42WP Anti-vibration Magnification Built-in two axis gimbal control vibration canceller Objective Aperture 21mm 30mm 42mm Auto power off (Maximum) *3 90 minutes after Prisms , BaK4 Mode of Anti-vibration V1 Mode / V2 Mode Roof prism Subsidiary prism Optical Coatings...
  • Page 22 MEMO...
  • Page 23 5. Missing warranty card. 6. Warranty card with missing purchase date, name, or the dealer information. Vixen reserves the right to replace the product with a new one due to damage of part beyond repair. Repair parts for warranty repair service are hold at Vixen for five years after the purchased product is discontinued.

This manual is also suitable for:
