STEP 11
3
3
6
ASSEMBLED UNIT
6
3
3
6
6
SQUARE LEG
4 PCS
3
SMALL SCREW 12 PCS
STEP 12
7
7
BIN
1 PC
Recommended Maximum Weight
40
10
15
*Unit in Pound(lbs.)
STEP 13
TURN 180°
6
ASSEMBLED UNIT
TOOL REQUIRED
STEP 14
ASSEMBLED UNIT
ASSEMBLED UNIT
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
4
Assembly Instruction

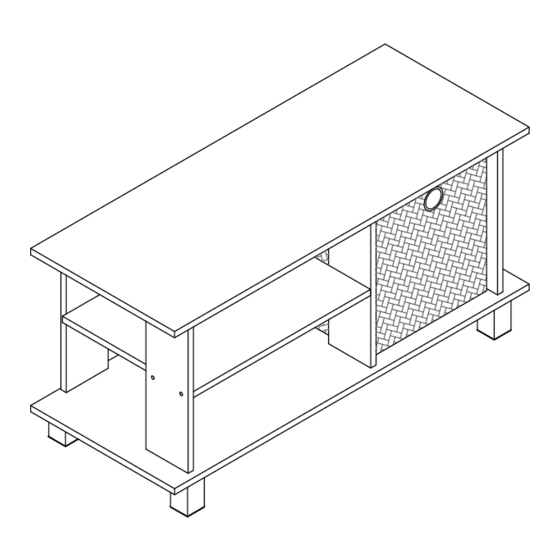

Furinno Simplistic TV Entertainment Center
with Bin Drawers
MODEL
Approx. 30 minutes
Recomm. 1 Person
Tool Required
Tool Required
Customer Support
NEED HELP? For replacement requests or product inquiries,
please contact our Customer Service Team by emailing us at
support@furinno.com. Thank you for selecting Furinno!
www.furinno.com
