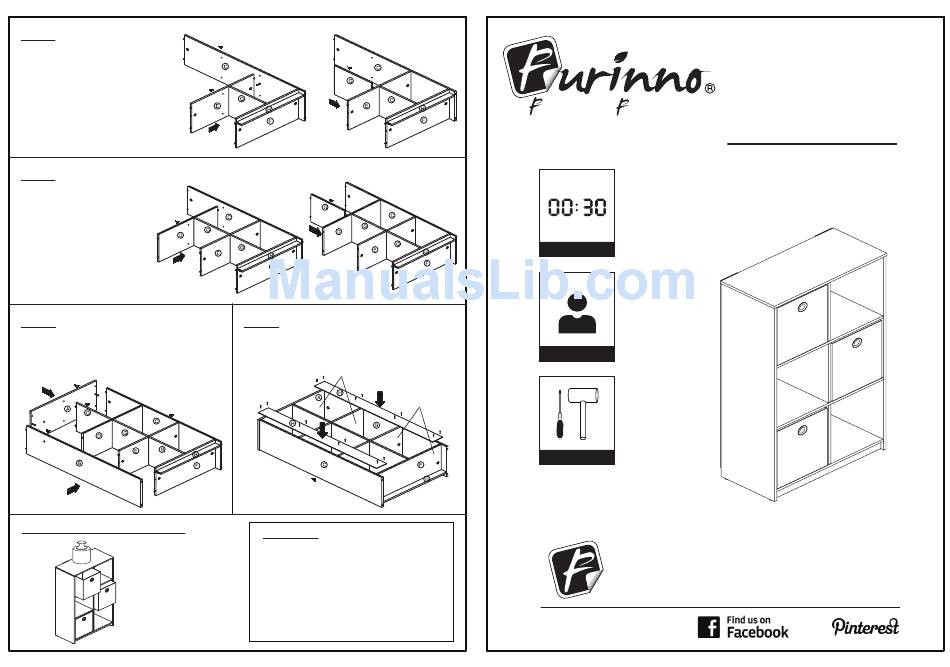

Furinno 13087 Assembly Instruction

Furinno 13087 Assembly Instruction

Econ storage organizer bookcase w/bins

Advertisement

Quick Links

STEP 6
6.1 Attach Panel(E)to Panel(C),
as shown in Picture 1.
6.2 Attach Panel(G)to Panel(E),
as shown in Picture 2.
finished
edge
unfinished
surface
STEP 7
7.1 Attach Panel(E)to Panel(C),
as shown in Picture 1.
7.2 Attach Panel(G)to
finished
edge
Panel(D),as shown in
Picture 2.
STEP 8
8.1 Attach Panel(B)to the unit,as shown.
8.2 Attach Panel(A)and lock all Cam-Lock
Nut(2)using screwdriver.
finished
edge
finished
edge
unfinished
surface
unfinished
surface
unfinished
surface
Recommended Maximum Weight
20
*Unit in Pound(lbs)
finished
edge
finished
edge
unfinished
surface
Picture 1
finished
edge
Picture 1
STEP 9
Attach Panel(H)to the back side using Power
Pin(6)and Hammer.
unfinished
surface
finished
edge
WARNING:
>This unit has been designed to support the
maximum loads shown. Exceeding these
load limits could cause sagging, instability,
product collapse, and/or serious injury.
>DO NOT allow children to climb on unit.
>Put heavier items on lower shelves.
its Space. its Budget
Picture 2
Approx. 30 minutes
Picture 2
Recomm. 1 Person
unfinished
surface
Tool Required
Tool Required
www.furinno.com
Assembly Instruction
Furinno Econ Storage Organizer
Bookcase w/Bins
MODEL
:
DIMENSION :
Customer Service
Tel/Fax: 281.500.9372
Toll Free: 773.299.8111 (Mon - Fri 9am - 5pm)
Email: support@furinno.com
13087
19.8"(W) x 36.5"(H) x 9.5"(D)
1308720140428
