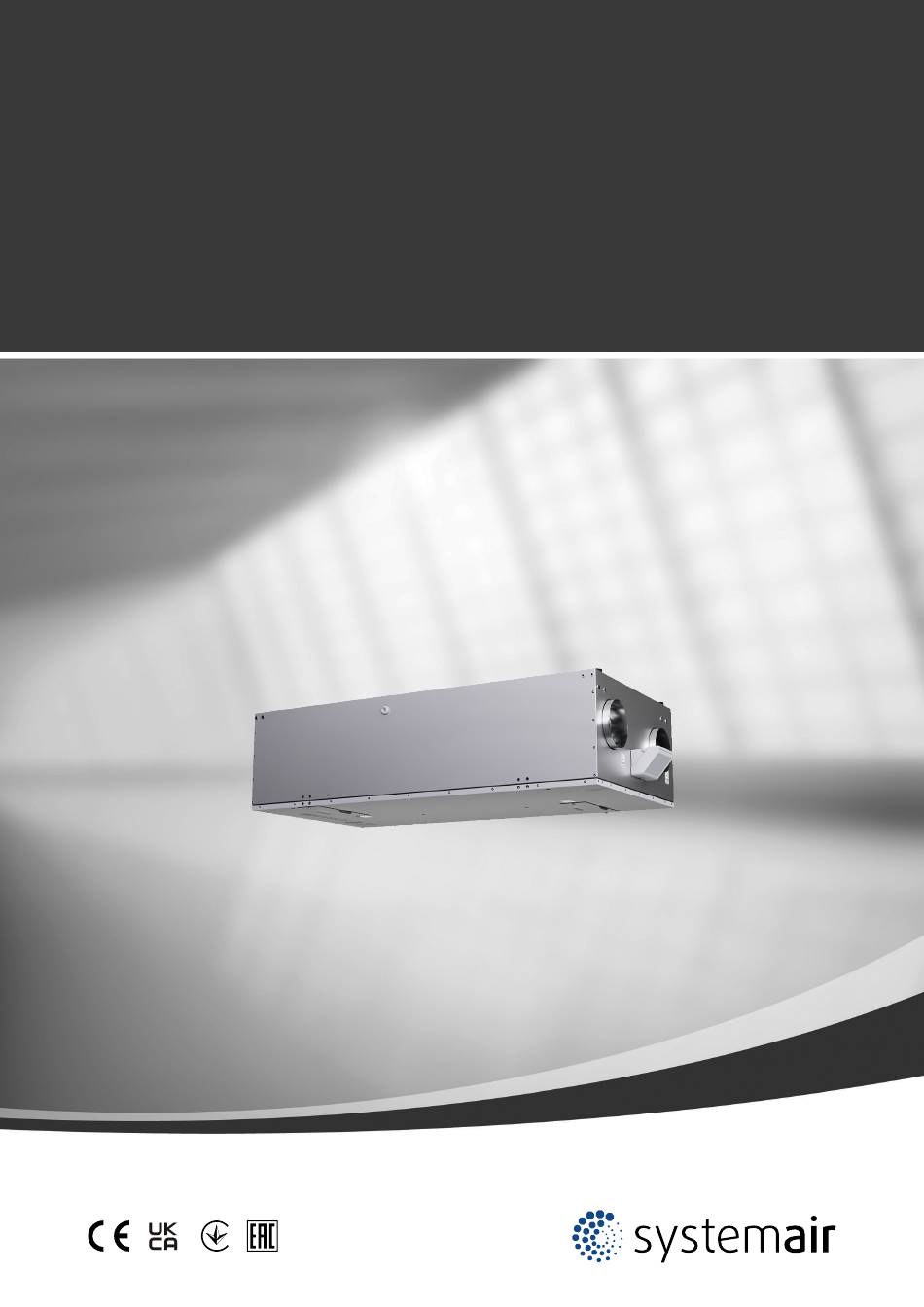

- Page 1 SAVE VSR 150/B Installation instructions Document in original language | 333545 · v1.1...
- Page 2 This also applies to products already ordered, as long as it does not affect the previously agreed specifications. Systemair is not liable or bound by warranty if these instructions are not adhered to during installation or service. 333545 | v1.1...
-
Page 3: Table Of Contents
Contents Overview ............1 General Description ........1 Warranty ..........1 Type label..........1 Important Safety Information ......1 Intended Use.........1 Admonitions .........2 Technical Data ..........2 Dimensions and Weight ......3 Duct connections........4 Installation recommendation regarding condensation ........4 3.3.1 Condensation inside of the unit .........4 3.3.2 Condensation outside of the unit .........4 Delivery, Transport, Storage.......5... -
Page 5: Overview
For the assertion of warranty claims, the products must be correctly connected and operated, and used in accordance with the data sheets. Further prerequisites are a completed maintenance plan with no gaps and a commissioning re- port. Systemair will require these in the case of a warranty claim. Type label Before calling your service representative, make a note of the specification and production number from the type label, which can be found next to the external connections and inside of the unit. -
Page 6: Admonitions
| Technical Data • The system should operate continuously, and only be stopped for maintenance/service. • Do not connect tumble dryers to the ventilation system. • Make sure that filters are mounted before starting the unit. Admonitions Danger • Make sure that the mains supply to the unit is disconnected before performing any maintenance or electrical work! •... -
Page 7: Dimensions And Weight
Technical Data | Dimensions and Weight Fig. 2 Dimensions The unit weight is 58 kg. 333545 | v1.1... -
Page 8: Duct Connections
| Technical Data Duct connections Symbol Description Symbol Description Symbol Description Supply air Outdoor air Cooker hood air Exhaust air Extract air Installation recommendation regarding condensation 3.3.1 Condensation inside of the unit The unit should run continuously. If the unit is intended to be stopped by the user manually or due to calendar function we recommend to install air tight dampers at extract and supply air ducts. -
Page 9: Delivery, Transport, Storage
Transport and storage The SAVE VSR 150/B should be stored and transported in such a way that it is protected against physical damage. It should be covered so dust, rain and snow cannot enter and damage the unit and its components. -
Page 10: Prerequisites For Installation
F. Installation on the floor is not allowed. Location and Space Requirements The SAVE VSR 150/B should preferably be installed in a separate room (e.g. storeroom, laundry room or similar.). Note: SAVE VSR 150/B must be installed in a heated area. -
Page 11: Wall Preparation For Mounting Bracket
Access to Power supply The SAVE VSR 150/B is supplied with approximately 1 – 1,5 m cable and plug for 230V, single phase earthed connection. Make sure a power outlet is reachable by the plug. - Page 12 | Installation Make sure that the surface is flat and that it supports the weight of the unit. Perform the installation in accordance with local rules and regulations. 333545 | v1.1...
-
Page 13: Ventilation Duct Connection And Insulation
Installation | Follow the ventilation drawing when connecting the unit to the duct system. Ventilation Duct Connection and Insulation Important • Always cover the ventilation ducts during construction period. • Make sure there are no loose objects or impurities inside the ducts. Install the ducts, supply air diffusers and air intake grilles as shown in the ventilation drawing. -
Page 14: Installation And Configuration Of Accessories
Please follow instructions included with the accessory or consult “Service and Accessories Installation” manual which can be found in our online catalogue. Electrical connections Main circuit board layout The SAVE VSR 150/B is equipped with built-in regulation and internal wiring. Fig. 4 Main circuit board connections Position Description... -
Page 15: External Connections (Connection Board)
Before Starting the System | Position Description Digital input 1 — Rotor guard sensor (only for VSR, VTR models) Digital input 2 — Freely configurable / Cooker hood (VTR 150/K unit) Analog output 2 — Freely configurable / Electrical heater controller (VTC 700 unit) Analog output 1 —... -
Page 16: Commissioning
| Commissioning • The unit is installed in accordance with the instructions • Outdoor and exhaust air dampers and silencers are installed and that the duct system is correctly connected to the unit • All ducts are sufficiently insulated and installed according to local rules and regulations •... -
Page 17: Concluding Routines
Concluding Routines | Set speed of supply and extract air fans for each level. When finished, review your settings. It is possible to go back to previous menus and make modifications. Choose heating type or none. Reset filter changer timer if necessary. Finish startup wizard with OK button. -
Page 18: Eu Declaration Of Conformity
Degrees of protection provided by enclosures (IP Code). The manufacturer hereby confirms that EN 62233 SAVE VSR 150/B Measurement methods for electromagnetic fields of household appliances and similar apparatus with regard comply with all applicable requirements in the following to human exposure. - Page 19 333545 | v1.1...
- Page 20 Systemair UAB Linų st. 101 LT–20174 Ukmergė, LITHUANIA Phone +370 340 60165 Fax +370 340 60166 www.systemair.com...
