Wi- Fi® LED Garage Door Opener
USER'S GUIDE
Models 84501, 84602, 84505R, 87504- 267, 87802
FOR RESIDENTIAL USE ONLY
•
Please read this guide and the enclosed safety materials carefully!
•
The door WILL NOT CLOSE unless the Protector System® is connected and properly aligned.
•
Periodic checks of the garage door opener are required to ensure safe operation.
•
This garage door opener is ONLY compatible with myQ® and Security+ 2.0® accessories.
•
DO NOT install on a one-piece door if using devices or features providing unattended close.
Unattended devices and features are to be used ONLY with sectional doors.
•
Attach warning labels to the location indicated on label.
Download the myQ®App to Set Up an Account and Connect
Open and close your door, get alerts and set schedules from anywhere. Connected smart garage door openers also receive software updates to
ensure the opener has the latest operational features. See page 6.
To register your garage door opener to receive updates and offers from LiftMaster, visit liftmaster.registria.com or use the icon below:
1.
Take a photo of the camera icon
including the points (
2.
Send it in by texting the photo to 71403
(US) or visit www.liftmaster.photo
(Global).
).
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Chamberlain 84501
Summary of Contents for Chamberlain 84501

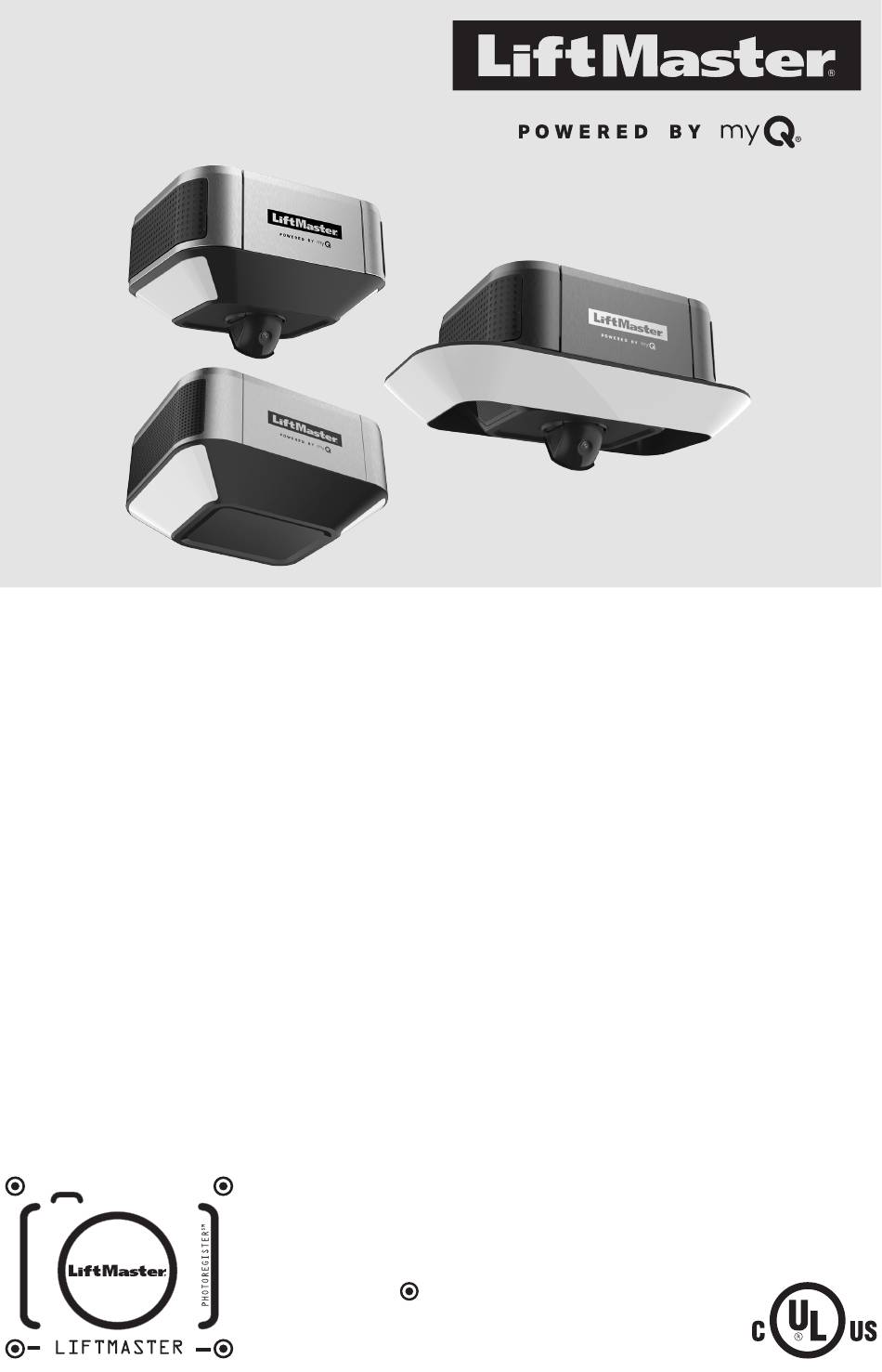

- Page 1 Wi- Fi® LED Garage Door Opener USER'S GUIDE Models 84501, 84602, 84505R, 87504- 267, 87802 FOR RESIDENTIAL USE ONLY • Please read this guide and the enclosed safety materials carefully! • The door WILL NOT CLOSE unless the Protector System® is connected and properly aligned.
-
