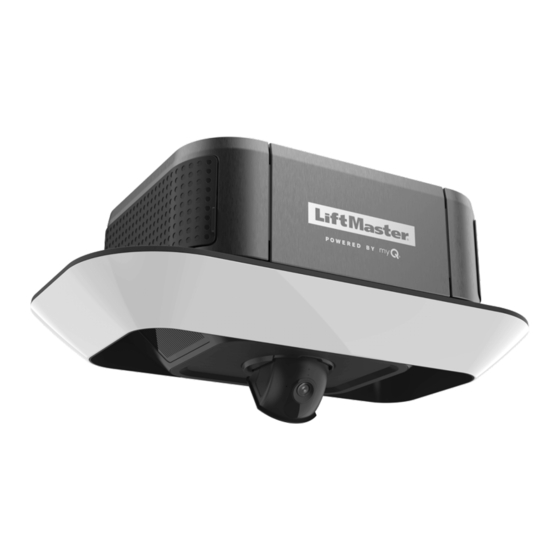

Smart LED Garage Door Openers Belt Drive Models - 87504-267, 84505R Chain Drive Models - 87802, 84602 FOR RESIDENTIAL USE ONLY Please read this manual and the safety • materials carefully! Periodic checks of the garage door opener are required to ensure safe operation.
Table of Contents Troubleshooting Preparation Accessories Carton Inventory 87504-267 Warranty Carton Inventory 87802 Repair Parts Carton Inventory 84505R Model 87504-267 Carton Inventory 84602 Model 87802 Assembly Model 84602 87504-267, 84505R Model 84505R 84602 87802 Installation Control Panel Install the Protector System...
Page 3
Preparation ® Serial Number Safety Symbol and Signal Word Review This garage door opener has been designed and tested to offer safe service provided it is installed, Write down the following information for future reference: operated, maintained and tested in strict accordance with the instructions and warnings contained in this manual.
Page 4
Preparation Before You Connect with Your Smartphone Check the Door Monitor and control your garage door from anywhere using the myQ® App. You will need: • Wi-Fi® enabled smartphone, tablet or laptop • To prevent possible SERIOUS INJURY or DEATH: Broadband Internet Connection •...
Preparation Carton Inventory 87504-267 CONTROL PANEL HARDWARE Screw 6AB x 1-1/4" (2) Drywall Anchors (2) Accessories will vary depending on the garage door opener model purchased. Depending on your specific Screw 6-32 x 1" (2) model, other accessories may be included with your garage door opener. The instructions for these accessories will be attached to the accessory and are not included in this manual.
Preparation Carton Inventory 87802 Installation Hardware Hex Bolt 5/16"-18 x 7/8" (4) Self-Threading Screw 1/4"-14 x 5/8" (2) Accessories will vary depending on the garage door opener model purchased. Depending on your specific Lag Screw 5/16"-9 x 1-5/8" (2) Ring Fastener (3) model, other accessories may be included with your garage door opener.
Power Carton Inventory 84505R RAIL HARDWARE Washered Bolt 5/16"-18 x 1/2" (2) (mounted in the top Accessories will vary depending on the garage door opener model purchased. Depending on your specific Lock Washer 5/16" (4) of the garage door opener) model, other accessories may be included with your garage door opener.
Preparation Carton Inventory 84602 CONTROL PANEL HARDWARE Screw 6AB x 1-1/4" (2) Drywall Anchors (2) Accessories will vary depending on the garage door opener model purchased. Depending on your specific Screw 6-32 x 1" (2) model, other accessories may be included with your garage door opener. The instructions for these accessories will be attached to the accessory and are not included in this manual.
NOTE: ONLY use the bolts removed from the garage door opener. Place the garage door opener on the packing material to prevent scratching. Models 87504-267 and 84505R Remove the two bolts from the top of the garage door opener. Align the holes in the rail with the holes in the garage door opener..
Page 11
Assembly 1 Attach Chain Rail to the Garage Door Opener Model HARDWARE 84602 Hex Screw Washered Bolt 5/16"-18x1/2" #8x3/8" (Mounted in the garage door opener) (Packed with the To avoid possible SERIOUS INJURY to finger from moving garage door opener: Models 87504-267, 84501 sprocket cover) •...
Page 12
Assembly 1 Attach the I-Beam Chain Rail to the Garage Door Opener 2 Attach the Chassis Support Bracket 87802 To avoid possible SERIOUS INJURY to finger from moving garage door opener: • To avoid SERIOUS damage to garage door opener, use ONLY those bolts/fasteners mounted in the top of ALWAYS keep hand clear of sprocket while operating opener.
Page 13
Assembly 3 Tighten the Chain Loosen the inner nut and lock washer on the trolley threaded shaft. Tighten the outer nut until the chain is a 1/2" above the base of the rail at the midpoint of the rail. Re-tighten the inner nut. Slack in the chain is normal when the door is closed.
Installation IMPORTANT INSTALLATION INSTRUCTIONS To reduce the risk of SEVERE INJURY or DEATH: READ AND FOLLOW ALL INSTALLATION WARNINGS AND INSTRUCTIONS. Install wall-mounted garage control panel: • within sight of the garage door. Install garage door opener ONLY on properly balanced and lubricated garage door. An improperly •...
Page 15
Installation 1 Determine the Header Bracket Location OPTIONAL Unfinished CEILING Ceiling MOUNT FOR HEADER Header Wall To prevent possible SERIOUS INJURY or DEATH: BRACKET • Header bracket MUST be RIGIDLY fastened to structural support on header wall or ceiling, otherwise Vertical Centerline garage door might NOT reverse when required.
Page 16
Installation 2 Install the Header Bracket OPTION B - CEILING INSTALLATION Extend the vertical centerline onto the ceiling as shown. You can attach the header bracket either to the wall above the garage door, or to the ceiling. Follow the Mark the side holes.
Page 17
Installation 3 Attach the Rail to the Header Bracket 4 Position the Garage Door Opener Align the rail with the header bracket. Insert the clevis pin through the holes in the header bracket and rail. Secure with the ring fastener. NOTE: Use the packing material as a protective base for the garage door opener.
Page 18
Installation 5 Hang the Garage Door Opener HARDWARE To avoid possible SERIOUS INJURY from a falling garage door opener, fasten it SECURELY to structural supports of the garage. Concrete anchors MUST be used if installing ANY brackets into masonry. Lock Washer 5/16" Hex Bolt 5/16"- 18x7/8"...
Page 19
Installation 6 Attach the Emergency Release Rope and Handle To prevent possible SERIOUS INJURY or DEATH from a falling garage door: • If possible, use emergency release handle to disengage trolley ONLY when garage door is CLOSED. Weak or broken springs or unbalanced door could result in an open door falling rapidly and/or unexpectedly.
Page 20
Installation 7 Install the Door Bracket Metal, insulated or light weight factory reinforced doors: • Drill 3/16" fastening holes. Secure the door bracket using the self-threading screws. (Figure 3) Wood Doors: • Use top and bottom or side to side door bracket holes. Drill 5/16” holes through the door and secure bracket with 5/16"-18 x 2"...
Page 21
Installation 8 Connect the Door Arm to the Trolley HARDWARE IMPORTANT: The groove on the straight door arm MUST face away from the curved door arm. Close the door. Disconnect the trolley by pulling the emergency release handle. Slide the outer trolley back (away from the door) about 2"...
Control Panel 1 Install the Control Panel Strip 7/16" (11 mm) of insulation from one end of the wire and separate the wires. Connect one wire to each of the two screws on the back of the control panel. The wires can be connected to either screw.
Page 23
Control Panel 2 Wire the Control Panel to the Garage Door Opener 3 Attach the Warning Labels PRE-WIRED INSTALLATIONS: When wiring the control panel to the garage door opener make sure you use the Attach the entrapment warning label on the wall near the control panel with tacks or staples. same wires that are connected to the control panel.
® Install the Protector System Introduction Be sure power is NOT connected to the garage door opener BEFORE installing the safety reversing sensor. To prevent SERIOUS INJURY or DEATH from closing garage door: • Correctly connect and align the safety reversing sensor. This required safety device MUST NOT be disabled.
Page 25
® Install the Protector System 1 Install the Safety Reversing Sensors WALL INSTALLATION HARDWARE Make sure the brackets on each side are clear of the door track and have the same amount of clearance so the Hex Screw 10-24 (2) sensors will align correctly. If additional clearance is needed, use extension brackets 041A5281-1 (not provided) Wing Nut (2) or wood blocks.
Page 26
® Install the Protector System 2 Wire the Safety Reversing Sensors FLOOR INSTALLATION Measure the position of both sensor brackets so they will be the same distance from the wall and PRE-WIRED INSTALLATIONS: If your garage already has wires installed for the safety reversing sensors, see unobstructed.
Page 27
® Install the Protector System OPTION B - PRE-WIRED INSTALLATION Pre-installed Cut the sensor wires, making sure there is enough wire to reach the pre-installed wires from the wall. wires Separate the sensor wires and strip insulation from each end. Choose two of the pre-installed wires and 7/16"...
Power 1 Connect Power THERE ARE TWO OPTIONS FOR CONNECTING POWER: OPTION A - TYPICAL WIRING Plug in the garage door opener into a grounded outlet. DO NOT run garage door opener at this time. TYPICAL WIRING To prevent possible SERIOUS INJURY or DEATH from electrocution or fire: •...
Page 29
Power 2 Align the Safety Reversing Sensors SAFETY SENSOR TROUBLESHOOTING If either of the sensor LEDs are off, there is no power to the sensor: IMPORTANT: The safety reversing sensors MUST be connected and aligned correctly before the garage Check that you have power to the garage door opener. door opener will move in the down direction.
Adjustments 1 - Program the Travel 5 Once the door is in the desired DOWN position press and release the Adjustment Button. The garage Without a properly installed safety reversal system, persons (particularly small children) could be door opener lights will SERIOUSLY INJURED or KILLED by a closing garage door.
Page 31
Adjustments 3 - Test the Safety Reversal System ® 4 - Test the Protector System Without a properly installed safety reversal system, persons (particularly small children) could be SERIOUSLY INJURED or KILLED by a closing garage door. Without a properly installed safety reversing sensor, persons (particularly small children) could be •...
Battery Backup* 1 Install the Battery 2 Test the Battery Depending on the power level, the battery may need to charge before performing the test. The garage door opener must be unplugged to test the battery. Unplug the garage door opener. The battery status LED will either glow solid orange indicating opener is operating on battery power or will flash indicating low battery power.
Page 33
Battery Backup* Battery Status LED GREEN LED: All systems are normal. • A solid green LED light indicates the battery is fully charged. • A flashing green LED indicates the battery is being charged. ORANGE LED: The garage door opener has lost power and is in battery backup mode. •...
Operation IMPORTANT SAFETY INSTRUCTIONS To reduce the risk of SEVERE INJURY or DEATH: READ AND FOLLOW ALL WARNINGS AND INSTRUCTIONS. Safety reversal system MUST be tested every month. Garage door MUST reverse on contact with 1-1/2" (3.8 cm) high object (or a 2x4 laid flat) on the floor. Failure to adjust the garage door opener properly ALWAYS keep remote controls out of reach of children.
Page 35
Operation Features USING YOUR GARAGE DOOR OPENER Your garage door opener is equipped with features to provide you with greater control over your garage door operation. When the door is closed and the garage door opener is activated the door will open. If the door makes contact with an obstruction ALERT2CLOSE while opening, the door will stop, opener beeps and lights flash 5 times.
Page 36
Operation Connect With Your Smartphone ® The Wi-Fi Garage Door Opener is compatible with up to 16 myQ enabled accessories. Up to 10 devices can be paired to the Wi-Fi ® garage door opener’s internal gateway. These devices can be controlled with the myQ App.
Page 37
Operation Set Up the Camera - Models 87504-267 and 84505R ® Download the myQ app and setup your account if you haven't already, see page 36. Camera Status Follow the instructions in the app to setup and use the camera.
Page 38
Operation Using the Control Panel LOCK The LOCK feature is designed to prevent activation of the garage door opener from remote controls while still SYNCHRONIZE THE CONTROL PANEL allowing activation from the control panel and keyless entry. This feature is useful for added peace of mind To synchronize the control panel to the garage door opener, press the push bar until the garage door opener when the home is empty (i.e.
Page 39
Operation Using the Smart Control Panel® * SETTINGS Press the navigation button below the down arrow till you see TEMPERATURE to view the Settings menu. SETUP The features on the control panel can be programmed through a series of menus on the screen and the Display the temperature in Fahrenheit or Celsius and navigation buttons.
Page 40
Operation Press and hold the black adjustment button on the garage door opener until 3 beeps are heard Press to continue. Press to continue. (Approximately 6 seconds). ERASE THE CAMERA SETTINGS Press and hold black adjustment button on the garage door opener until 3 beeps are heard (approximately 6 seconds).
Page 41
Operation To Open the Door Manually TO MANUALLY DISENGAGE AUTOMATIC GARAGE DOOR LOCK (MODEL 841LM)* The door should be fully closed if possible. Disengage the automatic garage door lock by sliding the manual release to the open position. Pull the emergency release handle down and back (toward the garage door opener). The garage door can To prevent possible SERIOUS INJURY or DEATH from a falling garage door: then be raised and lowered manually as necessary.
Maintenance Maintenance Schedule The Remote Control Battery EVERY MONTH • Manually operate door. If it is unbalanced or binding, call a trained door systems technician. • Check to be sure door opens and closes fully. Adjust if necessary, see page 30. •...
Troubleshooting Diagnostic Chart Your garage door opener is programmed with self-diagnostic capabilities. The UP and DOWN arrows on the garage door opener flash the diagnostic codes. DIAGNOSTIC CODE SYMPTOM SOLUTION Up Arrow Flash Down Arrow Flash (es) (es) The garage door opener will not close . Safety reversing sensors are not installed, connected, or wires may be cut.
Page 44
Troubleshooting DIAGNOSTIC CODE SYMPTOM SOLUTION Up Arrow Flash Down Arrow Flash (es) (es) Door is moving, stops or reverses. Opener beeps and lights flash. Manually open and close the door. Check for binding or obstructions, such as a broken spring or door lock, correct as needed.
Accessories 878MAX MAX Wireless Keyless Entry: 893MAX 3-Button MAX Remote Control: 880LMW Smart Control Panel: For use outside of the home to enable access to the Compatible with LiftMaster garage door Displays temperature, time and system garage using a 4-digit PIN. Works with ALL LiftMaster openers manufactured since 1993.
(the “Warranty Period”). The warranty period commences from the date of purchase. WARRANTY PERIOD Models Parts Motor Accessories Belt Battery Backup Integrated LED Camera 84505R 1 year Lifetime 1 year Lifetime 1 year 1 year 84602 1 year Lifetime...
Page 47
Automatic Garage Door Opener Safety & Maintenance Guide Garage Door Opener Safety – An Automatic Decision A garage door is the largest moving object in the home. An improperly adjusted garage door and opener can exert deadly force when the door closes – which could lead to entrapment of children or adults and subsequent injury or death.
Page 48
Routine Maintenance Can Prevent Tragedies Make monthly inspection and testing of your garage door and opener system a part of your regular routine. Review your owner’s manual for both the door and door opener. If you don’t have the owner’s manuals, contact the manufacturer(s) and request a copy for your specific model(s).
Repair Parts Rail Assembly Parts 87504-267 Installation Parts Description Part Number Description Part Number Belt - for 7 foot door 041A5434-11A Curved door arm 041B0035B 041A5434-13A Belt - for 8 foot door Door bracket with clevis pin and fastener 041A5047-1 041A5434-14A Belt - for 10 foot door Emergency release rope and handle...
Page 50
Repair Parts Garage Door Opener Parts Model 87504-267 Description Part Number Sprocket and Sprocket Cover with Screws 041C0589-2 End panel 041-0185-000 Integrated LED Light Module 041-0186-000 Badge with camera 041-0195-000 Main Enclosure Cover 041-0190-000 Control door panel 041-0192-000 End panel cover 041-0193-000 Motor with travel module 041-0236-000...
Repair Parts Rail Assembly Parts Models 87802 Installation Parts Description Part Description Part Number Number 1 Chain - for 7 foot door 041D3484 Curved door arm 041B0035B 041D3483 Chain - for 8 foot door Door bracket with clevis pin and fastener 041A5047-1 041D3485 Chain - for 10 foot door...
Page 52
Repair Parts Garage Door Opener Parts Model 87802 Description Part Number Chassis Support Bracket 041C5069 Chain Spreader & Sprocket 041-0035 End Panel, Battery Acces 041-0185-000 Light Pod Kit, No Camera 041-0187-000 Badge 041-0196-000 Main Enclosure Cover 041-0190-000 Control Door Panel 041-0192-000 End panel cover 041-0193-000...
Repair Parts Rail Assembly Parts 84602 Installation Parts Description Part Number Description Part Number Chain - for 7 foot door 041D3484 Curved door arm 041B0035B 041D3483 Chain - for 8 foot door 041D3485 Chain - for 10 foot door Door bracket with clevis pin and fastener 041A5047-1 Chain Pulley Bracket 041A4813...
Page 54
Repair Parts Garage Door Opener Parts Model 84602 Description Part Number Sprocket and Sprocket Cover with Screws 041B5348-2 Non-logic borad end panel 041-0185-000 Integrated LED Light Module 041-0189-000 Badge 041-0196-000 Main Enclosure Cover 041-0191-000 Control door panel 041-0192-000 End panel cover 041-0194-000 Motor with travel module 041-0236-000...
Repair Parts Rail Assembly Parts Model 84505R Installation Parts Description Part Number Description Part Number Belt - for 7 foot door 041A5434-11A Curved door arm 041B0035B 041A5434-13A Belt - for 8 foot door 041A5434-14A Belt - for 10 foot door...
Page 56
Repair Parts Garage Door Opener Parts 84505R Description Part Number Sprocket cover 041A4371 Gear and sprocket 041C589-2 End panel, No Battery Access 041-0184-000 Dual Light Pod Kit, No Camera 041-0189-000 Badge 041-0196-000 Main Enclosure cover 041-0191-000 Control door panel 041-0192-000...
