Procedure: AC POWER LABEL MODIFICATIONS
Description: AC POWER LABELS MAY BE APPLIED INCORRECTLY
PURPOSE: To inspect and possibly correct misapplied labels on AC power cables. Some gyros up to
serial number 9-0050 may have been incorrectly labelled at the factory. It is important to label and
connect the power input and seawater pump power output cables correctly.
REFERENCES:
(a) Seakeeper Doc 90222: SEAKEEPER 9 Installation Manual
(b) Seakeeper Dwg 90257: SEAKEEPER 9 Cable Block Diagram

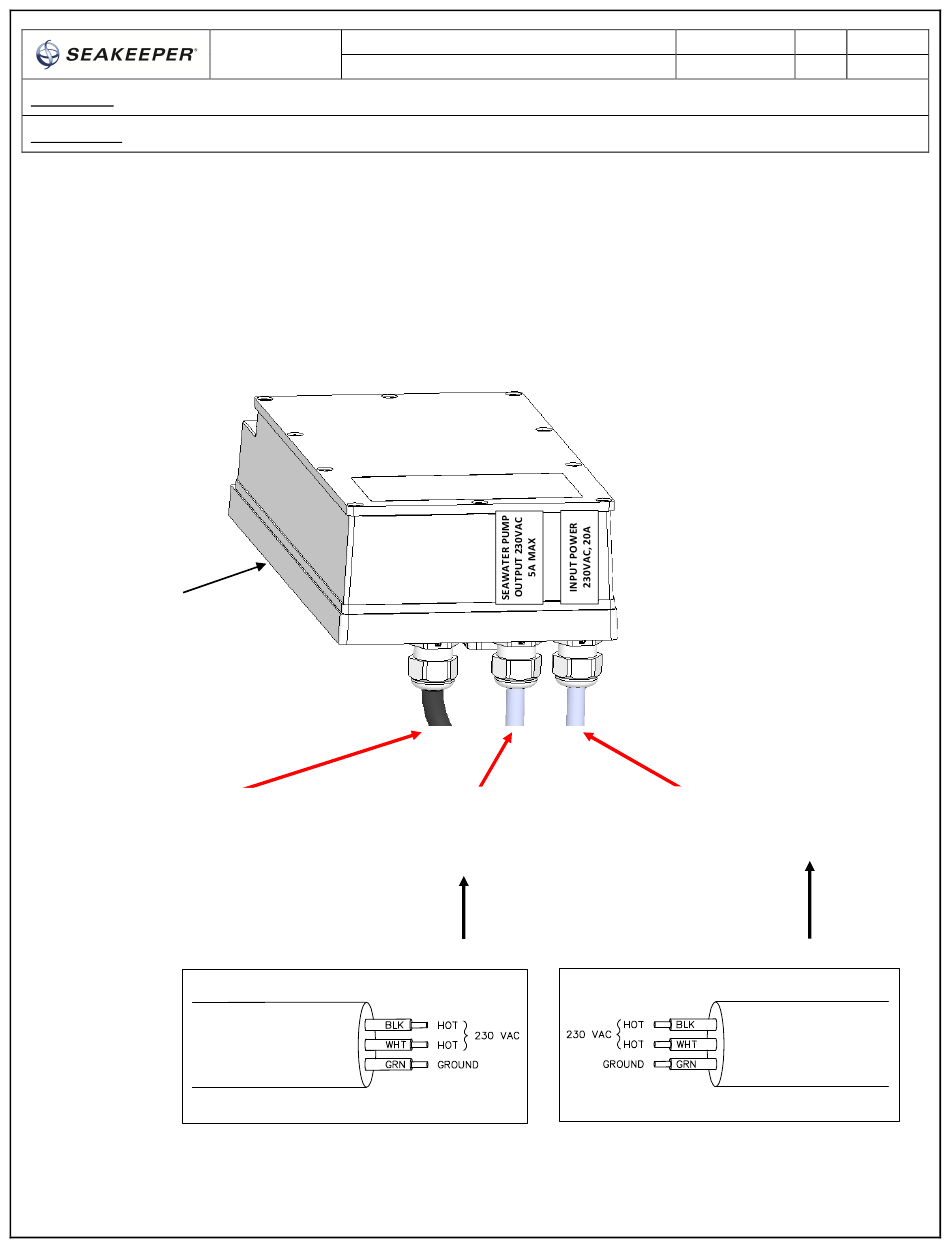

1. Inspect AC power input and output cable labels on the Drive Box and compare these to the figure
below.
Drive Box,
Seakeeper
P/N: 20216
INWARD CABLE GLAND FOR
DRIVE POWER OUTPUT TO
GYRO MOTOR
3 x 14AWG
SEAKEEPER SUPPLIED
2. If these AC power cable labels are not in the correct positions as shown, carefully remove them and
reapply correctly.
Product:
SERVICE
BULLETIN
SEAKEEPER 9 GYRO
MIDDLE CABLE GLAND FOR
AC POWER OUTPUT TO
Label on Seawater Pump cable end
SEAWATER PUMP
OUTPUT POWER
2
)
(3 x 2.5mm
SEAWATER PUMP
(CABLE 5)
Document #:
90292
OUTWARD CABLE GLAND FOR
AC POWER INPUT
Label on AC Input Power cable end
AC INPUT POWER
3 x 10AWG
SEAKEEPER SUPPLIED
Rev: Page:
1
1 of 2
(CABLE 2)
2
(3 x 5.0mm
)
