Product Manual
Engine Display and Control
J1939 Engines
Part Number: MVP-62303
Revision: 3.0
______________________________________________________________________________________________________________________________________
Copyright Controls, Inc.
P.O. Box 368 • Sharon Center, OH 44274
Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Controls MVP-62303
Summary of Contents for Controls MVP-62303

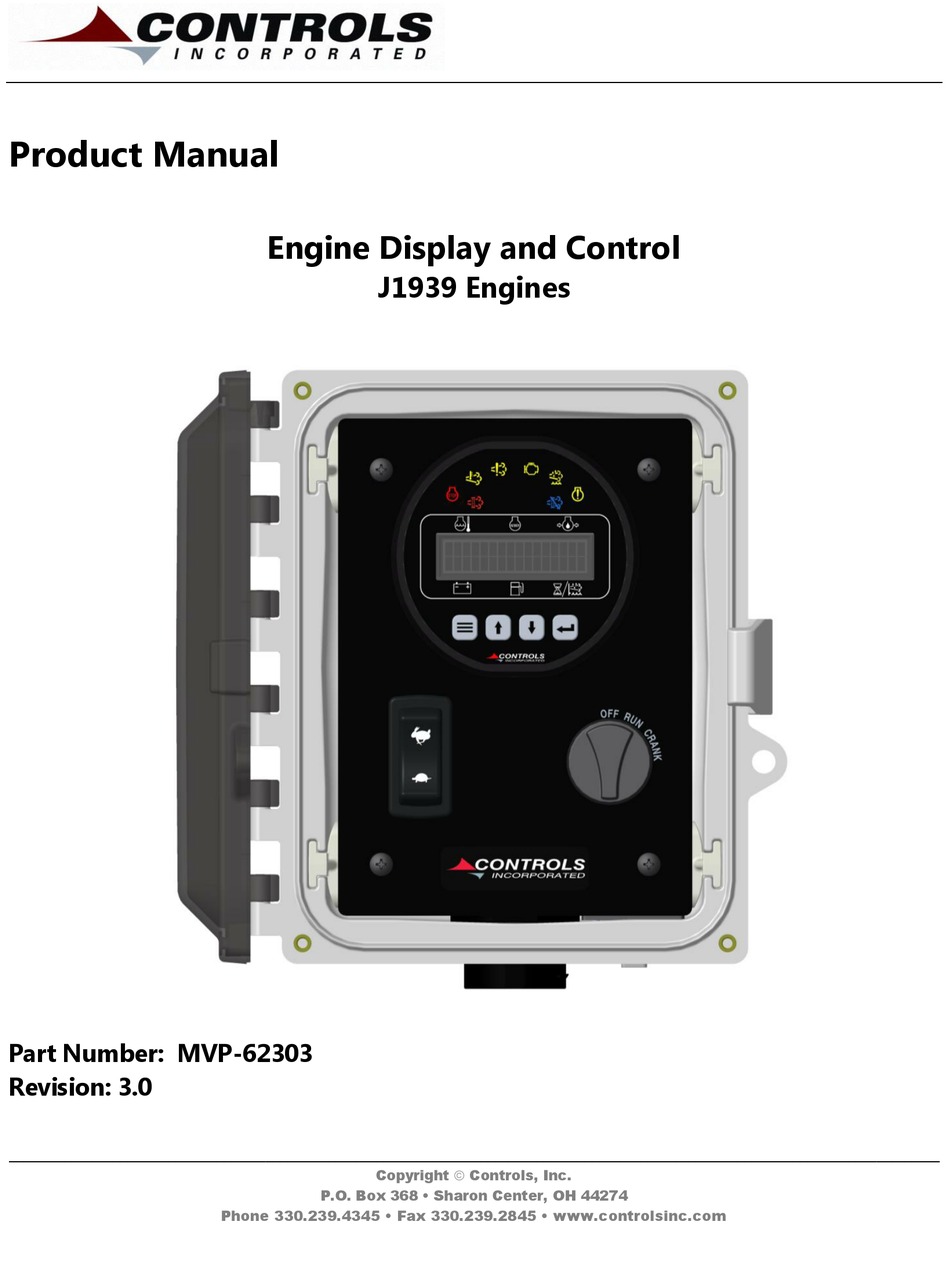

- Page 1 Product Manual Engine Display and Control J1939 Engines Part Number: MVP-62303 Revision: 3.0 ______________________________________________________________________________________________________________________________________ Copyright Controls, Inc. P.O. Box 368 • Sharon Center, OH 44274 Phone 330.239.4345 • Fax 330.239.2845 • www.controlsinc.com...
-
Page 2: Table Of Contents
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S TABLE OF CONTENTS PRIOR TO ENGINE START ………………...…………………………………………………………………….….……….……….…………... CAN Bus CONFIGURATION THROTTLE SETTINGS INSTALLATION INFORMATION ……...………………………………...…………..……………………………………………….. -
Page 3: Can Bus Configuration
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Prior to starting the engine, select the proper throttle control mode and parameters required for application. -
Page 4: Installation Information
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S INSTALLATION INFORMATION - 3 -... - Page 5 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONNECTOR INFORMATION BATTERY + EXTERNAL SD CAN HIGH FUEL/RUN CAN LOW THROTTLE UP THROTTLE DOWN...
- Page 6 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S PANEL CONNECTOR INFORMATION 4 Pin Connector 21 Pin Connector Function Function Battery Positive External Shutdown...
-
Page 7: Engine Alarms, Codes And Messages
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S ENGINE ALARMS, CODES AND MESSAGES Engine ECU Alarm/De-Rate/Shut Downs It is important to understand panel operation with respect to engine safety protections, alarms, and fault codes. -
Page 8: Active And Stored Engine Ecu Codes
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Indicator Lamps Engine Emissions Fault Lamp Regen Lamp Active Lamp Lamp Engine Engine Pre Alarm... -
Page 9: Control Panel Analog And Digital Inputs
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL ANALOG AND DIGITAL INPUTS The panel has one digital inputs and three analog inputs available to monitor other components, senders or signals. - Page 10 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CONTROL PANEL OUTPUTS The panel has three outputs available to signal other devices based on predefined events. These Outputs can be used for a number of purposes including engine operation or driving an audible alarm.
-
Page 11: Menu System
CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S MENU SYSTEM To Enter Menu System Hold MENU button and press ENTER button. Menu Navigation Press MENU button to scroll menu options. - Page 12 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Main Menus Main Menus Sub Menus Active Engine Fault Codes View/Scroll Active Fault Codes...
- Page 13 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S Configuration Menus Quick Setup Engine Manufacturer TSC Minimum Speed TSC Maximum Speed Performance Display Off/On Eng.
- Page 14 CONTROLS, INCORPORATED C O N T R O L S Y S T E M S & S O L U T I O N S CAN Configuration Engine Manufacturer (Default = Cummins) TSC1 Address (Default = 3) Others available...
